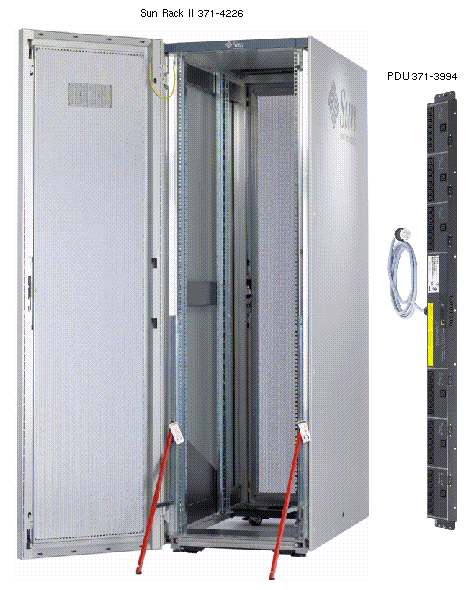

Sun Rack II

RETMA Rail Mounting Screw Size unthreaded 9.5mm x 9.5mm square hole

Codename: Redwood

Sun Rack II 42U-1000
Sun Rack II 42U-1200
Power Distribution Units
Sun Rack II for Storage 6000 Modular Array



Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported but can no longer be ordered

Sun Rack II 42U-1000

PART # DESCRIPTION
594-5897
371-4471
None
None		 Rack with Light Duty Pallet, PTO Option XSR-1042 / XSR-1042-N
42U-1000 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
7075494
7075432
None
None		 Rack with Light Duty Pallet, PTO Option XSR-1042 / XSR-1042-N (replaced 594-5897)
42U-1000 Rack (replaced 371-4471)
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
7079684
7079683
None		 Rack with Light Duty Pallet, PTO Option XSR-1042 / XSR-1042-N (replaced 7075494)
42U-1000 Rack (replaced 7075432)
Front/Rear Door and Side Panel Key (key pattern unknown)
594-5898
371-4471
None
None		 Rack with Heavy Duty Pallet, PTO Option XSR-1042E / XSR-1042E-N
42U-1000 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
7075496
7075432
None
None		 Rack with Heavy Duty Pallet, PTO Option XSR-1042E / XSR-1042E-N (replaced 594-5898)
42U-1000 Rack (replaced 371-4471)
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
7079686
7079683
None		 Rack with Heavy Duty Pallet, PTO Option XSR-1042E / XSR-1042E-N (replaced 7075496)
42U-1000 Rack (replaced 7075432)
Front/Rear Door and Side Panel Key (key pattern unknown)
594-5614
540-7758
540-7750
540-7760
350-1580		 Option XRACK_FILLERPANELS
1U Filler Panel
2U Filler Panel
4U Filler Panel
1U Vented Filler Panel
590-1194
330-5319		 8-Pack 1U Filler Panel Option 7100497
1U Filler Panel
Note: The 42U-1000 Rack is only available with single-phase AC input power.

Sun Rack II 42U-1200

PART # DESCRIPTION
594-5592
371-4226
None
None		 Rack with Light Duty Pallet, PTO Option XSR-1242 / XSR-1242-N
42U-1200 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
7075499
7075433
None
None		 Rack with Light Duty Pallet, PTO Option XSR-1242 / XSR-1242-N (replaced 594-5592)
42U-1200 Rack (replaced 371-4226)
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
7079689
7079688
None		 Rack with Light Duty Pallet, PTO Option XSR-1242 / XSR-1242-N (replaced 7075499)
42U-1200 Rack (replaced 7075433)
Front/Rear Door and Side Panel Key (key pattern unknown)
594-5593
371-4226
None
None		 Rack with Heavy Duty Pallet, PTO Option XSR-1242E / XSR-1242E-N
42U-1200 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
7075502
7075433
None
None		 Rack with Heavy Duty Pallet, PTO Option XSR-1242E / XSR-1242E-N (replaced 594-5593)
42U-1200 Rack (replaced 371-4226)
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
7079691
7079688
None		 Rack with Heavy Duty Pallet, PTO Option XSR-1242E / XSR-1242E-N (replaced 7075502)
42U-1200 Rack (replaced 7075433)
Front/Rear Door and Side Panel Key (key pattern unknown)
594-5614
540-7758
540-7750
540-7760
350-1580		 Option XRACK_FILLERPANELS
1U Filler Panel
2U Filler Panel
4U Filler Panel
1U Vented Filler Panel
590-1194
330-5319		 8-Pack 1U Filler Panel Option 7100497
1U Filler Panel
Note: The 42U-1200 Rack is available with single-phase or three phase AC input power.

Power Distribution Units

PART # DESCRIPTION
594-6404
371-4644 [C]		 Option XSR-5K-L630CP
5KVA Single-Phase Compact Power Distribution Unit, North America
    with one 30A/250V 2-Pole/3-Wire NEMA L6-30P Plug
594-6405
371-4645 [C]		 Option XSR-5K-IEC309CP
5KVA Single-Phase Compact Power Distribution Unit, International
    with one Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plug
594-5594
371-3994 [C]		 Option XSR-5K-L630
5KVA Single-Phase Power Distribution Unit, North America
    with one 30A/250V 2-Pole/3-Wire NEMA L6-30P Plug
594-5598
371-3999 [C]		 Option XSR-5K-IEC309
5KVA Single-Phase Power Distribution Unit , International
    with one Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plug
594-5602
371-4198 [C]
7051799 [C]
7078656 [C]
Option XSR-10K-L630
10KVA Single-Phase Power Distribution Unit, North America
    with two 30A/250V 2-Pole/3-Wire NEMA L6-30P Plugs
10KVA Single-Phase Power Distribution Unit, North America
    with two 30A/250V 2-Pole/3-Wire NEMA L6-30P Plugs
10KVA Single-Phase Power Distribution Unit, North America
    with two 30A/250V 2-Pole/3-Wire NEMA L6-30P Plugs
594-5604
371-4200 [C]
7051800 [C]
7078662 [C]
Option XSR-10K-IEC309 and XSR-10K-IEC309-N
10KVA Single-Phase Power Distribution Unit, International
    with two Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs
10KVA Single-Phase Power Distribution Unit, International
    with two Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs
10KVA Single-Phase Power Distribution Unit, International
    with two Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs
594-5603
371-4199 [C]
7051805 [C]
7078657 [C]
Option XSR-15K-L630 and XSR-15K-L630-N
15KVA Single-Phase Power Distribution Unit, North America
    with three 30A/250V 2-Pole/3-Wire NEMA L6-30P Plugs
15KVA Single-Phase Power Distribution Unit, North America
    with three 30A/250V 2-Pole/3-Wire NEMA L6-30P Plugs
15KVA Single-Phase Power Distribution Unit, North America
    with three 30A/250V 2-Pole/3-Wire NEMA L6-30P Plugs
7051806
7051805 [C]
Option 7105793 and 7107740
15KVA Single-Phase Power Distribution Unit, North America
    with three 30A/250V 2-Pole/3-Wire NEMA L6-30P Plugs
594-5605
371-4201 [C]		 Option XSR-15K-IEC309
15KVA Single-Phase Power Distribution Unit, International
    with three Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs
594-6898
371-5039 [F]
7051902 [F]
Option Exadata/Exalogic Option 7100873 (for factory installation)
22KVA Single-Phase Power Distribution Unit, International
    with three 50A/220-240V 2-Pole/3-Wire Hubbell CS8265C Plugs
22KVA Single-Phase Power Distribution Unit, International
    with three 50A/220-240V 2-Pole/3-Wire Hubbell CS8265C Plugs
594-6899
371-5040 [F]
Options 7100262 and 7102991
22KVA Single-Phase Power Distribution Unit, International
    with three Blue 32A/220-240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs
7051906
7051905 [F]
7078665 [F]
Options 7100262 / 7102991 / 7107172
22KVA Single-Phase Power Distribution Unit, International
    with three Blue 32A/220-240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs
22KVA Single-Phase Power Distribution Unit, International
    with three Blue 32A/220-240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs
7051906
7051905 [F]
Option 7107172
22KVA Single-Phase Power Distribution Unit, International
    with three Blue 32A/220-240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs
594-5595
371-3995 [C]
7051908 [C]
7078658 [C]
Option XSR-15K-IEC309-4P
15KVA Three-Phase Power Distribution Unit, North America
    with one Blue 60A/250V Watertight 3-Pole/4-Wire IEC 60309 Plug
15KVA Three-Phase Power Distribution Unit, North America
    with one Blue 60A/250V Watertight 3-Pole/4-Wire IEC 60309 Plug
15KVA Three-Phase Power Distribution Unit, North America
    with one Blue 60A/250V Watertight 3-Pole/4-Wire IEC 60309 Plug
594-5599
371-4000 [C]		 Option XSR-15K-IEC309-5P
15KVA Three-Phase Power Distribution Unit, International
    with one Red 32A/220-240V Splashproof 4-Pole/5-Wire IEC 60309 Plug
594-6830
371-4976 [C]
7051914 [C]
7078663 [C]
Option XSR-15KIEC309-U5P
15KVA Three-Phase Power Distribution Unit, International
    with one Red 32A/220-240V Splashproof 4-Pole/5-Wire IEC 60309 Plug
15KVA Three-Phase Power Distribution Unit, International
    with one Red 32A/220-240V Splashproof 4-Pole/5-Wire IEC 60309 Plug
15KVA Three-Phase Power Distribution Unit, International
    with one Red 32A/220-240V Splashproof 4-Pole/5-Wire IEC 60309 Plug
594-5596
371-3996 [C]
371-4510 [C]
7052216 [C]
Option XSR-24K-IEC309-4P
24KVA Three-Phase Power Distribution Unit, North America
    with two Blue 60A/250V Watertight 3-Pole/4-Wire 6-AWG IEC 60309 Plugs
24KVA Three-Phase Power Distribution Unit, North America
    with two Blue 60A/250V Watertight 3-Pole/4-Wire 8-AWG IEC 60309 Plugs
24KVA Three-Phase Power Distribution Unit, North America
    with two Blue 60A/250V Watertight 3-Pole/4-Wire 8-AWG IEC 60309 Plugs
594-5600
371-4001 [C]
Option XSR-24K-IEC309-5P
24KVA Three-Phase Power Distribution Unit, International
    with two Red 30/32A, 230/400V Splashproof 4-Pole/5-Wire IEC 60309 Plugs
594-6831
371-4977 [C]
7051917 [C]
Option XSR-24KIEC309-U5P
24KVA Three-Phase Power Distribution Unit, International
    with two Red 30/32A, 230/400V Splashproof 4-Pole/5-Wire IEC 60309 Plugs
24KVA Three-Phase Power Distribution Unit, International
    with two Red 30/32A, 230/400V Splashproof 4-Pole/5-Wire IEC 60309 Plugs
594-5597
371-3997 [C]
371-4511 [C]
7051911 [C]
7078660 [C]
Option XSR-37K-IEC309-4P
37KVA Three-Phase Power Distribution Unit, North America
    with three Blue 60A/250V Watertight 3-Pole/4-Wire 6-AWG IEC 60309 Plugs
37KVA Three-Phase Power Distribution Unit, North America
    with three Blue 60A/250V Watertight 3-Pole/4-Wire 8-AWG IEC 60309 Plugs
37KVA Three-Phase Power Distribution Unit, North America
    with three Blue 60A/250V Watertight 3-Pole/4-Wire 8-AWG IEC 60309 Plugs
37KVA Three-Phase Power Distribution Unit, North America
    with three Blue 60A/250V Watertight 3-Pole/4-Wire 8-AWG IEC 60309 Plugs
594-5601
371-4002 [C]
Option XSR-37K-IEC309-5P
37KVA Three-Phase Power Distribution Unit, International
    with three Red 30/32A, 230/400V Splashproof 4-Pole/5-Wire IEC 60309 Plugs
594-6832
371-4978 [C]
7051922 [C]
7078664 [C]
Option XSR-37KIEC309-U5P
37KVA Three-Phase Power Distribution Unit, International
    with three Red 30/32A, 230/400V Splashproof 4-Pole/5-Wire IEC 60309 Plugs
37KVA Three-Phase Power Distribution Unit, International
    with three Red 30/32A, 230/400V Splashproof 4-Pole/5-Wire IEC 60309 Plugs
37KVA Three-Phase Power Distribution Unit, International
    with three Red 30/32A, 230/400V Splashproof 4-Pole/5-Wire IEC 60309 Plugs
594-5606
180-2379 [C]
180-2380 [C]
180-2381 [C]
180-2382 [C]		 Option XSR-JUMPKIT
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 2M
20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 1M
594-5606
7015399 [C]
7015400 [C]
7015419 [C]
7015420 [C]		 Option XSR-JUMPKIT (594-5606-01 Rev 53)
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
16A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 2M
16A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 1M
594-5607
180-2379 [C]
7015399 [C]		 Option XSR-JUMPPAC-1MC13
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
594-5608
180-2380 [C]
7015400 [C]		 Option XSR-JUMPPAC-2MC13
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
594-5609
180-2379 [C]
7015399 [C]		 Option XSR-JUMP-1MC13
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
594-5610
180-2382 [C]
7015420 [C]		 Option XSR-JUMP-1MC19
20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 1M
16A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 1M
594-5611
180-2380 [C]
7015400 [C]		 Option XSR-JUMP-2MC13
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
594-5612
180-2381 [C]
7015419 [C]		 Option XSR-JUMP-2MC19
20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 2M
16A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 2M
594-6531
180-2442 [C]		 Option X333V-20-15-C14 (inactive manufacturing part number)
15A/250V IEC 320 Sheet I to IEC 320 C19 Cord, 2M
F180-2442
180-2442 [C]		 Option X333V-20-15-C14 (inactive option)
15A/250V IEC 320 Sheet I to IEC 320 C19 Cord, 2M
7063426
7040692 [C]		 Option X333V-20-15-C14
10A/250V IEC 320 Sheet I to IEC 320 C19 Cord, 2M (replaced 180-2442)
594-6532
180-2443 [C]		 Option X333V-30-15-C14
20A/250V IEC 320 Sheet I to IEC 320 C19 Cord, 3M
F180-2443
180-2443 [C]		 Option X333V-30-15-C14
20A/250V IEC 320 Sheet I to IEC 320 C19 Cord, 3M
7069508
7040693 [C]		 Option X333V-30-15-C14
15A/250V IEC 320 Sheet I to IEC 320 C19 Cord, 3M (replaced 180-2443)

Sun Rack II for Storage 6000 Modular Array

PART # DESCRIPTION
596-7837
None
None
None
371-4443 [F]		 Four PDU Rack Option TA6000-RK2-1242AI [S]
42U-1200 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
Single-Phase PDU with one Blue 32A/240V Splashproof
    2-Pole/3-Wire IEC 60309 Plug with Ground at 6 o'clock
596-7838
None
None
None
371-4442 [F]		 Four PDU Rack Option TA6000-RK2-1242AD [S]
42U-1200 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
Single-Phase PDU with one 30A/250V 2-Pole/3-Wire
    NEMA L6-30P Plug
594-5795
371-4442 [F]		 Option XTA6000-RK2-PDUAD [S]
Single-Phase PDU with one 30A/250V 2-Pole/3-Wire
    NEMA L6-30P Plug 1
594-5857
371-4443 [F]		 Option XTA6000-RK2-PDUAI [S]
Single-Phase PDU with one Blue 32A/240V Splashproof
    2-Pole/3-Wire IEC 60309 Plug with Ground at 6 o'clock 1
594-5885
540-7796
341-4881 		Option XTA6000-RK2-RAIL
Mounting Rail Kit
Mounting Rail
Sun Rack II 1042 and 1242 Documentation

1 Includes two single-phase 20A 200-240V output groups with six IEC 320 Sheet F connectors per group.

References


  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
