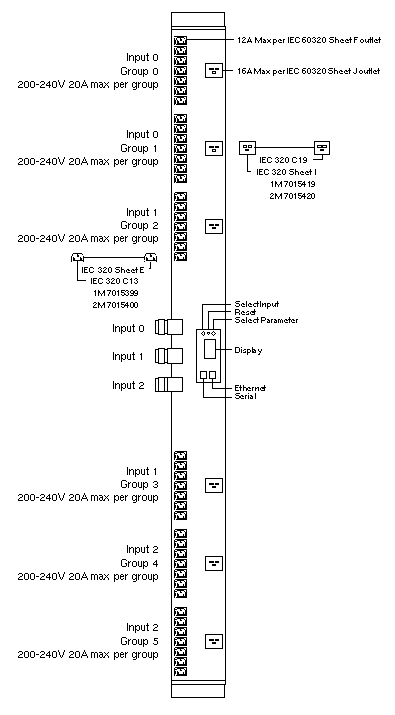

Sun Rack II Power Distribution Unit

<a href="../../Systems/SupportHeaders/ACPOWER_SunRackII_4199_Pwr_Dist_Unit.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-4199 371-4201 7051805

Single-Phase 15KVA
NEMA L6-30 Plug
Specification 950-5782
North America
XSR-15K-L630 Single-Phase 15KVA
Hubbell 332P6S Plug
Blue 32A IEC 60309
Specification 950-5784
International
XSR-15K-IEC309 Single-Phase 15KVA
NEMA L6-30 Plug
Specification 7058534
North America
XSR-15K-L630
XSR-15K-L630-N

Notes:

22KVA Single-Phase PDU, HV PN# 371-5040 can be used in place of the 15KVA Single-Phase PDU,
International PN# 371-4201 due to FRU stock shortages..

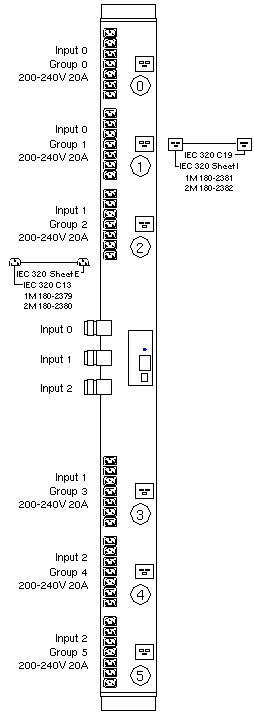

Sun Rack II Power Distribution Unit (RMII)

<a href="../../Systems/SupportHeaders/ACPOWER_SunRackII_4199_Pwr_Dist_Unit_SH_ANCHOR_7078657.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7078657 7308667

Single-Phase 15KVA
NEMA L6-30 Plug
Specification 7078646
North America
XSR-15K-L630
XSR-15K-L630-N Single-Phase 15KVA
NEMA L6-30 Plug
Specification 7078646
North America
