Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

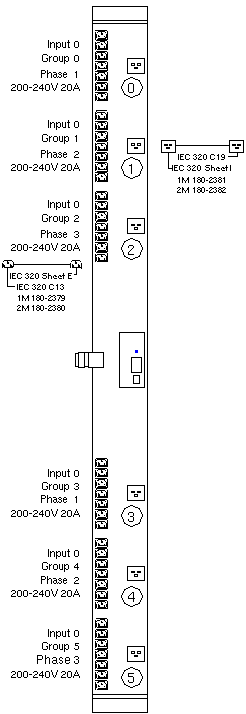

Sun Rack II Power Distribution Unit

<a href="../../Systems/SupportHeaders/ACPOWER_SunRackII_3995_Pwr_Dist_Unit.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-3995 7051908

Three-Phase 15KVA
Hubbell 460P9W Plug
Blue 60A IEC 60309
Specification 950-5699
North America
XSR-15K-IEC309-4P Three-Phase 15KVA
Hubbell 460P9W Plug
Blue 60A IEC 60309
Specification 7058537
North America
XSR-15K-IEC309-4P

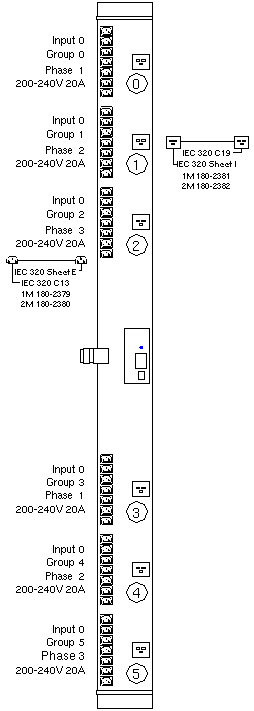

Sun Rack II Power Distribution Unit

<a href="../../Systems/SupportHeaders/ACPOWER_SunRackII_3995_Pwr_Dist_Unit_SH_ANCHOR_4000.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-4000 371-4976 7051914

Three-Phase 15KVA
Hubbell 532P6S Plug
Red 32A IEC 60309
Specification 950-5704
XSR-15K-IEC309-5P
Not UL or CSA Approved
International Three-Phase 15KVA
Hubbell 530P6S Plug
Red 32A IEC 60309
Specification 950-6101
XSR-15KIEC309-U5P
UL and CSA Approved
International Three-Phase 15KVA
Hubbell 530P6S Plug
Red 32A IEC 60309
Specification 7058540
XSR-15KIEC309-U5P
UL and CSA Approved
International

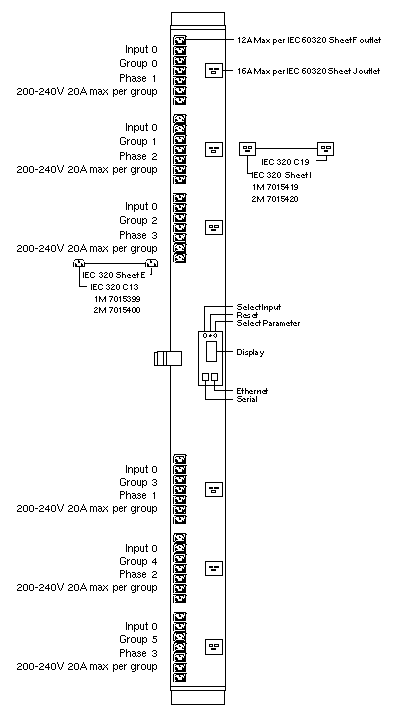

Sun Rack II Power Distribution Unit (RMII)

<a href="../../Systems/SupportHeaders/ACPOWER_SunRackII_3995_Pwr_Dist_Unit_SH_ANCHOR_7078658.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7078658 7308675 7078663 7308678

Three-Phase 15KVA
Hubbell 460P8W Plug
Blue 60A IEC 60309
Specification 7078649
North America
XSR-15K-IEC309-4P Three-Phase 15KVA
Hubbell 460P8W Plug
Blue 60A IEC 60309
Specification 7078649
North America Three-Phase 15KVA
Hubbell 530P6S Plug
Red 32A IEC 60309
Specification 7078652
International
XSR-15KIEC309-U5P Three-Phase 15KVA
Hubbell 530P6S Plug
Red 32A IEC 60309
Specification 7078652
International

RMII = Reduced Media Independent Interface
