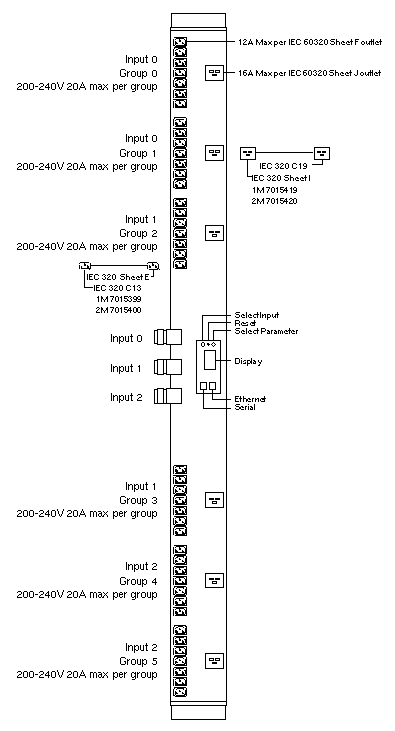

Sun Rack II Power Distribution Unit

<a href="../../Systems/SupportHeaders/ACPOWER_SunRackII_5039_Pwr_Dist_Unit.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-5039 371-5040 7051902 7051905

Single-Phase 22KVA
Hubbell CS8265C Plug
Specification 950-6150
North America Single-Phase 22KVA
Hubbell 332P6S Plug
Blue 32A IEC 60309
Specification 950-6151
International
PTO 7100262 Single-Phase 22KVA
Hubbell CS8265C Plug
Specification 7058535
North America Single-Phase 22KVA
Hubbell 332P6S Plug
Blue 32A IEC 60309
Specification 7058536
International
PTO 7100262
PTO 7102991
PTO 7107172

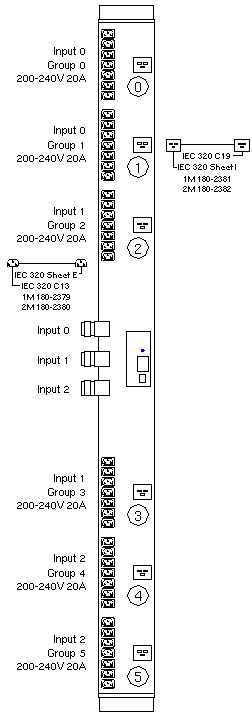

Sun Rack II Power Distribution Unit (RMII)

<a href="../../Systems/SupportHeaders/ACPOWER_SunRackII_5039_Pwr_Dist_Unit_SH_ANCHOR_7078661.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7078661 7078665 7308674

Single-Phase 22KVA
Hubbell CS8265C Plug
Specification 7078647
North America Single-Phase 22KVA
Hubbell 332P6S Plug
Blue 32A IEC 60309
Specification 7078648
International
PTO 7100262
PTO 7102991
PTO 7107172 Single-Phase 22KVA
Hubbell 332P6S Plug
Blue 32A IEC 60309
Specification 7078648
International
