Oracle ZFS Storage ZS3-2 - System Breakdown

Oracle ZFS Storage ZS3-2 Home Page Service Views Front Top Rear Components Full Components List Array Controller CPU Module Cables Chassis Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Power Rack Removable Media SCSI System Board System Breakdown Exploded View

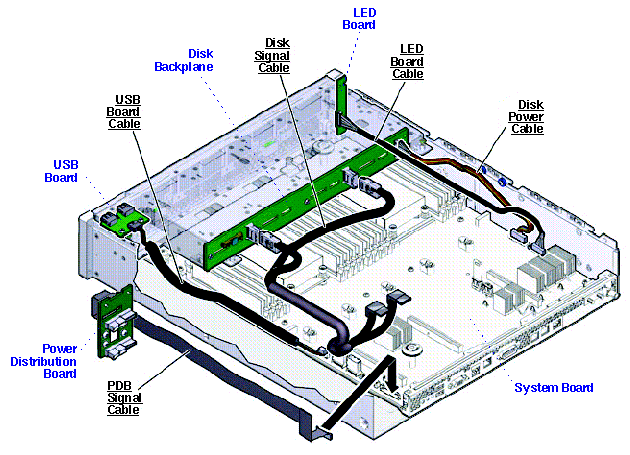

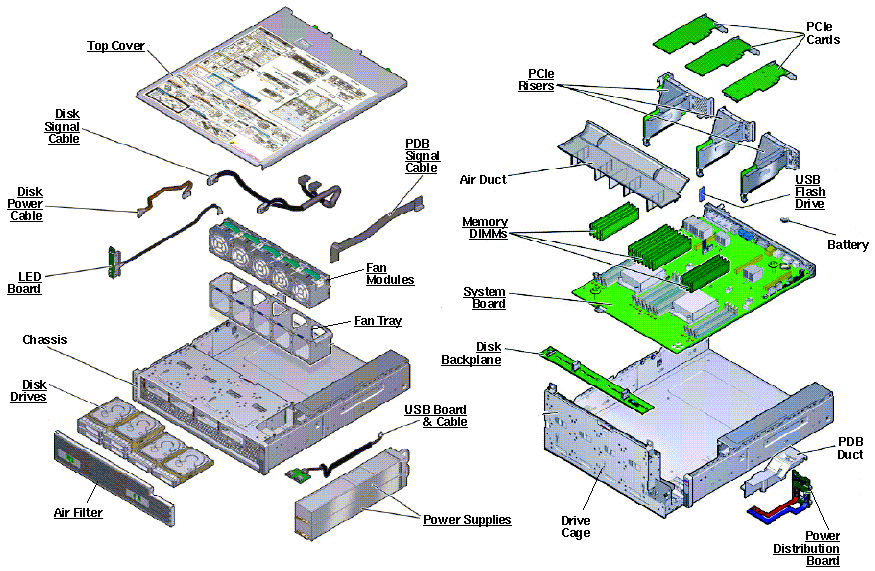

Exploded View Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown Code Manufacturing Part# Description NS 341-2610 PCI Filler Panel NS 350-1288 DIMM Slot Filler NS 370-6110 19" 4-Post Rackmount Kit NS 541-2629 2.5" Disk Drive Filler Panel NS 7014217 Chassis Assembly NS 7017279 [F] LED Alarm Assembly NS 7026760 LED Alarm Cable NS n/a LED Alarm Board NS 7048062 DE2-24P 24x2.5" Disk Shelf Assembly NS 7043626 2RU Chassis Assembly 7043627 [C] 580 Watt AC Input Power Supply 7043628 [C] 6Gbps SAS-2 I/O Controller Module NS 7043630 [F] 2RU Chassis Assembly/FRU with Midplane 7044619 [C] Mounting Rail Kit NS 7048064 DE2-24C 24x3.5" Disk Shelf Assembly 7063682 [C] Mounting Rail Kit NS 7043867 4RU Chassis Manufacturing Assembly 7043627 [C] 580 Watt AC Input Power Supply 7043628 [C] 6Gbps SAS-2 I/O Controller Module NS 7044319 [F] 4RU Chassis Assembly/FRU with Midplane NS 7053737 System Air Duct NS 7078865 DE2-24P 24x2.5" NEBS Disk Shelf Assembly 7044619 [C] Mounting Rail Kit NS 7078864 2RU NEBS Chassis Assembly 7043627 [C] 580 Watt AC Input Power Supply 7043628 [C] 6Gbps SAS-2 I/O Controller Module NS 7078863 [F] 2RU NEBS Chassis Assembly/FRU with Midplane NS 7096538 DE2-24P 24x2.5" NEBS Disk Shelf Assembly NS 7093665 2RU NEBS Chassis Assembly 7043627 [C] 580 Watt AC Input Power Supply 7043628 [C] 6Gbps SAS-2 I/O Controller Module NS 7093535 [F] 2RU NEBS Chassis Assembly/FRU with Midplane NS 7096574 DE2-24C 24x3.5" Disk Shelf Assembly NS 7093757 DE2-24C Chassis Manufacturing Assembly 7043627 [C] 580 Watt AC Input Power Supply 7043628 [C] 6Gbps SAS-2 I/O Controller Module NS 7093695 [F] DE2-24C Chassis with Midplane Assembly/FRU NS 540-7980 13 [F] [A] Disk Shelf Chassis Assembly - 330-5203 Front Left End Cap - 330-5204 Front Right End Cap - 375-3659 Centerplane Assembly NS 7041264 14 [F] [A] Disk Shelf Chassis Assembly - 330-5203 Front Left End Cap - 330-5204 Front Right End Cap - 7041262 Centerplane Assembly 13 Verify which chassis and disk models are installed to ensure proper part selection for replacement. See this table of supported disks per sub-system within the ZS3-2 for more accurate part replacement selection. 14 Verify which chassis and disk models are installed to ensure proper part selection for replacement. See this table of supported disks per sub-system within the ZS3-2 for more accurate part replacement selection.
