Sun StorEdge L3500 - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
|
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| X3810A |
530-2352
[F]
|
External SCSI Cable, HD68 to HD68, 4M |
n/a |
| n/a |
150-1890
[F]
|
HD68 Wide Differential Terminator with LED |
n/a |
|
I/O
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
370-2851
[F]
|
Actuator Driver Board |
n/a |
| n/a |
370-3262
|
Tape Drive Distribution Board |
n/a |
| n/a |
370-3295
[F]
|
Robotic Controller Board |
n/a |
| n/a |
370-3299 [F]
|
Tape Drive Distribution Board |
n/a |
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
300-1338
[F]
|
ATL 326 Watt Logic Power Supply |
n/a |
| n/a |
300-1339
[F]
|
ATL 100 Watt Motor Power Supply |
n/a |
| n/a |
300-1512 [F]
|
100 Watt Motor Power Supply
|
300-1339
[F]
|
|
Removable Media
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XMEDDLTCIV-10 1
[S]
|
370-2188 [S]
|
Digital Linear Tape (DLT) Compact IV Data Cartridge |
n/a |
|
SG-XMEDDLTCL-10 2
[S]
|
370-2189 |
Digital Linear Tape (DLT) Cleaning Cartridge |
n/a |
|
X6063A
[S]
|
370-3332
3
[F]
|
DLT[tm] 7000 Differential SCSI 8MB Internal Cache |
370-3272
[F]
|
1 Option is a 10 pack
2 Option is a 10 pack
3 This part is a FRU in Canada. ATL has taken over support of this part in most other locations.
|
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X1062A
[S]
|
370-1704
|
Differential Fast/Wide SCSI-2 Host Adapter (DWIS/S) |
n/a |
|
X6541A
[S]
|
375-0006
|
Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD) |
n/a |
NOTE: For FRU/CRU status, see host system's Full Components List.
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|

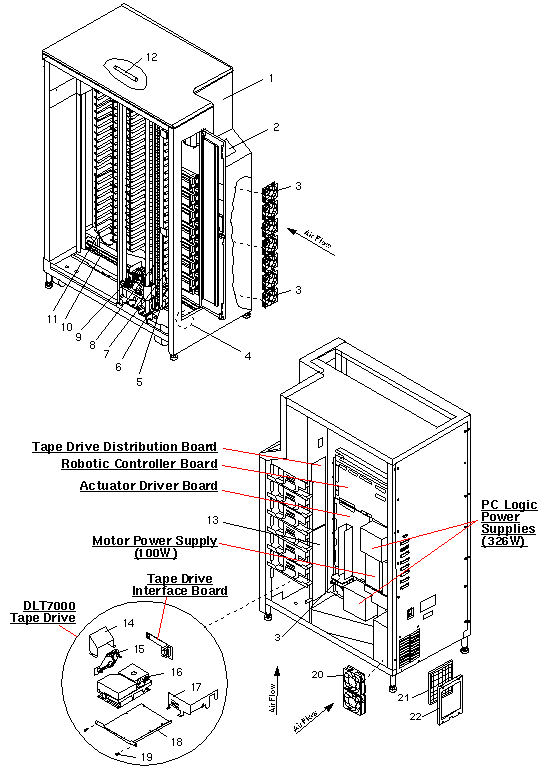

| Code |
Manufacturing Part# |
Description |
| 1 |
595-4444 |
ETL 2/3500 / StorEdge L3500 2 Drive Assembly |
| 1 |
595-4445 |
ETL 7/3500 / StorEdge L3500 7 Drive Assembly |
| 2 |
370-3255 [F]
|
Touch Panel Assembly (-02 or higher required) |
| 3 |
370-3297 [F]
|
31.8 CFM Fan Assembly |
| 4 |
370-2859 [F]
|
Door Switch Assembly |
| 5 |
370-2858 [F]
|
X-Axis Confirmation Sensor |
| 6 |
370-2855 [F]
|
Y-Axis Stepper Motor Assembly |
| 7 |
370-2854 [F]
|
X-Axis Interconnect Board |
| 8 |
370-3305 [F]
|
Y-Axis Drive Belt, 188" |
| 9 |
370-2863 [F]
|
Extension Axis Assembly (-02 required) |
| 10 |
370-3304 [F]
|
X-Axis Drive Belt, 240" |
| 11 |
370-2856 [F]
|
X-Axis Stepper Motor Assembly |
| 12 |
370-2866 [F]
|
Fluorescent Bulb |
| 13 |
370-3298 [F]
|
Tape Drive Multiplexor Board |
| 14 |
n/a |
Tape Drive Fan Shield |
| 15 |
370-3261 |
Stepper Motor Assembly |
| 16 |
n/a |
DLT7000 Tape Drive |
| 17 |
n/a |
Tape Drive Mounting Bracket |
| 18 |
n/a |
Tape Drive Shelf |
| 19 |
n/a |
#10-32 W 1/2" Screw with Washer |
| 20 |
370-3296 [F]
|
108 CFM Fan Assembly |
| 21 |
n/a |
Air Filter, 7.5"x6" |
| 22 |
n/a |
Air Filter Cover |
| NS |
370-2857 [F]
|
Load Port Door Lockout Solenoid |
| NS |
370-2860 [F]
|
Y-Axis Umbilical Cable |
| NS |
370-3300 [F]
|
X-Axis Umbilical Cable |
| NS |
530-2515 |
External SCSI Jumper Cable, HD68 to HD68 |
|
