Acme Packet 6100 - Full Components List

Cables
Disks
Ethernet
Fan
Miscellaneous
Power
Rack

Switch/Hub

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

System Notes:
Important information about Acme Packet part number structures.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7107386	120-0004-60 [S]	Short Wave LC to SC Fibre Cable, 3M	120-0004-00 [C] [S]
7107390	120-0009-60 [S]	Long Wave LC to SC Fibre Cable, 3M	120-0009-00 [C] [S]
n/a	120-0033-60-01 [C]	DC Power Cable, 3-Wire, Unterminated to 3-Pin Connector, 8'	n/a
n/a	CBL-0012-60 [C]	AC Power Cord, North America, NEMA 5-15P to C13, 10'	n/a
n/a	120-0004-00 [C] [S]	Short Wave LC to SC Fibre Cable, 3M	n/a
n/a	120-0009-00 [C] [S]	Long Wave LC to SC Fibre Cable, 3M	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7069827	80GB Intel SSDSC1NB080G4 SATA SSD	n/a
n/a	7088907 [F]	400GB 2.5" SATA Solid State Drive Assembly	n/a
n/a	7076379	400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400G]	n/a
n/a	7088910 [F]	40GB 2.5" SATA Solid State Drive Assembly	n/a
n/a	MOD-0131-60	40GB 2.5" SATA Solid State Drive Intel [SSDSA2CT040G310]	n/a
n/a	7091365 [F]	80GB 2.5" SATA Solid State Drive Assembly	n/a
n/a	7331553 [F]	480GB 2.5" SATA Solid State Drive Assembly	7321302 [F] [S]
n/a	7331545	480GB 2.5" SATA Solid State Drive Samsung MZ7KM480HAHP-000U5 [MS5SC2JH2ORA480G]	n/a
n/a	7357681 [F]	480GB 2.5" SATA Solid State Drive Assembly, FSB Certified	n/a
n/a	7357686	480GB 2.5" SATA Solid State Drive, FSB Certified	n/a
n/a	7321302 [F] [S]	480GB 2.5" SATA Solid State Drive Assembly	n/a
	7320023	480GB 2.5" SATA Solid State Drive Samsung [MS4SC2JH2ORA480G]	n/a
	7328750	480GB 2.5" SATA Solid State Drive Samsung (Unique WWN) [MS4SC2JH2ORA480G]	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
n/a	012-0802-58-04 [C]	Dual Port 10GbE SFP+ Network Interface Unit (NIU / PHY) with IPSEC/SRTP (with faceplate)	n/a
n/a	7322464 [C]	Dual Port 10GbE SFP+ Network Interface Unit (NIU/PHY) with IPSEC/SRTP (with faceplate)	7095599 [C] [S]
n/a	7334088 [C]	High Speed Secure Services Module Version 3	7088602 [S] 7335290 [C] 002-0803-50-01 [S]
n/a	7335290 [C]	High Speed Secure Services Module Version 3	002-0803-50-01 [S]
n/a	7337944 [C]	Dual 10GbE SFP+ NIU/PHY with IPSEC/SRTP with Faceplate	7322464 [C] 7095599 [C] [S]
n/a	MOD-0083-60 [C]	10Base-SR SFP+ Transceiver	n/a
n/a	MOD-0100-60 [C]	10Base-LR SFP+ Transceiver	n/a
n/a	002-0803-50-01 [S]	High Speed Secure Services Module Version 3	n/a

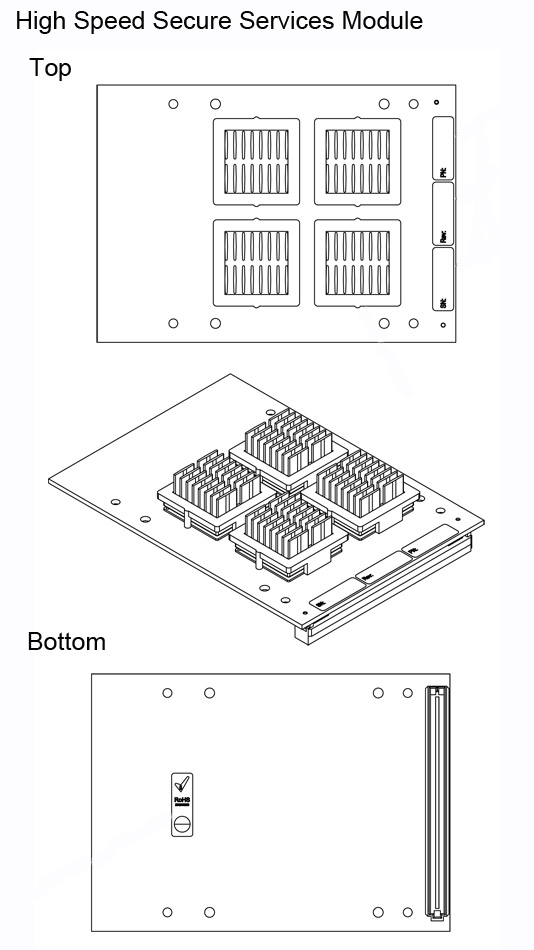

n/a	7088602 [S]	High Speed Secure Services Module Version 3	7335290 [C] 002-0803-50-01 [S]
n/a	7095599 [C] [S]	Dual Port 10GbE SFP+ Network Interface Unit (NIU/PHY) with IPSEC/SRTP (with faceplate)	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	110-0200-50-01 [C]	Fan Module	n/a
n/a	7089591 [C]	Fan Module, 40x40x28, 29CFM	110-0200-50-01 [C]
n/a	7096473 [C]	Fan Module, 40x40x28, 29CFM	n/a

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
n/a	AIR-0006-60-01-SPARE [C]	Air Filter, Package of 5 [SKU]	n/a
n/a	AIR-0006-60-01	Air Filter	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	110-0107-60-01 [C]	1100W AC Input Power Supply	n/a
n/a	110-0108-60-01 [C]	1100W -48V DC Input Power Supply	n/a

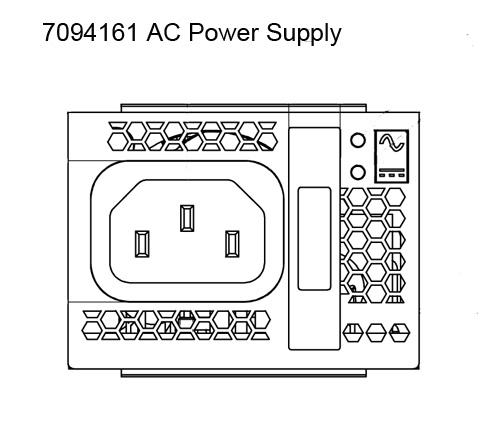

n/a	7094161 [C]	1100 Watt AC Input Power Supply	110-0107-60-01 [C]

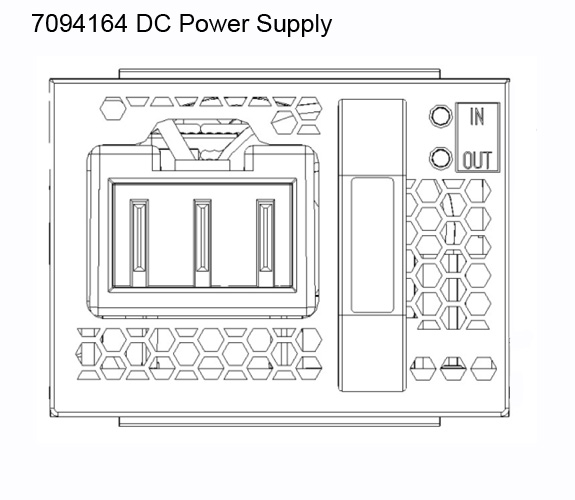

n/a	7094164 [C]	1100 Watt DC Input Power Supply	110-0108-60-01 [C]

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	420-0060-60-01 [C]	19" Rack Mount Brackets	n/a
n/a	420-0061-60-01 [C]	23" Rack Mount Brackets	n/a
n/a	7305712 [C]	19" Rack Mount Kit	n/a
	120-0011-60	Console Adapter Cable	n/a
	120-0020-60	Ground Cable, 10'	n/a
	7300588	Front Mounting Flange	n/a
	7303146	19" Center Mounting Flange	n/a
	7303616	Slide Rails, 20" to 32" Deep	n/a
n/a	7305713 [C]	23" Rack Mount Kit	n/a
	120-0011-60	Console Adapter Cable	n/a
	120-0020-60	Ground Cable, 10'	n/a
	7300588	Front Mounting Flange	n/a
	7303585	23" Center Mounting Flange	n/a
	7303616	Slide Rails, 20" to 32" Deep	n/a
	MTL-0119-60	23" Extension Mounting Bracket	n/a

Switch/Hub
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7331259 [F]	Acme Packet 6100 Chassis	7089188 [F] [S]
	102-0114-60-01	2.3GHz Quad Core i7-3615QE CPU/Memory Board	n/a
	MOD-0142-60	8GB DDR3 SODIMM Memory Module, 1333MHz	n/a
	7331261	Main Board Assembly	n/a
	MOD-0131-60	40GB 2.5" SATA Solid State Drive Intel [SSDSA2CT040G310]	n/a
n/a	800-6100-50-01 [F]	Acme Packet 6100 Chassis	n/a
	002-0801-50-05	Main Board Assembly	n/a
	102-0114-60-01	2.3GHz Quad Core i7-3615QE CPU/Memory Board	n/a
	MOD-0142-60	8GB DDR3 SODIMM Memory Module, 1333MHz	n/a
	MOD-0131-60	40GB 2.5" SATA Solid State Drive Intel [SSDSA2CT040G310]	n/a
n/a	7089188 [F] [S]	Acme Packet 6100 Chassis	n/a
	102-0114-60-01	2.3GHz Quad Core i7-3615QE CPU/Memory Board	n/a
	MOD-0142-60	8GB DDR3 SODIMM Memory Module, 1333MHz	n/a
	7308207	Main Board Assembly	n/a
	MOD-0131-60	40GB 2.5" SATA Solid State Drive Intel [SSDSA2CT040G310]	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
