480GB Solid-State Drive
Samsung MS4SC2JH2ORA480G

2 1/2" Solid State Serial ATA-3 6.0Gb/Sec


7328750 7328752
SM863 Series
2-bit MLC V-NAND
with unique WWN		 Marlin Bracket FRU
15mm Bkt 541-2123
PTO 7114435
7321300 7321302 7345198
AP6300 FRU
Sled MTL-0227-60-01		 AP4600/AP6100 FRU
Bracket MTL-0236-60-01		 Coral-Dory Bracket FRU
2.5" Adapter 7042920
3.5" Bracket 7050989
or 3.5" Bracket 7343235
Left Bracket 7042923

Notes

  1. Drive 7328750 and Assembly 7328752 were released in January 2016. (E0028750)
  2. Drive 7320023 in Assemblies 7321300 and 7321302 was relabeled 7328750. (D0003853)
  3. Drive 7328750 was added to Assemblies 7321300 and 7321302 in February 2016. (E0028786)
  4. Assembly 7345198 with 7328750 was released in January 2017.
  5. The drive is Over-Provisioned by 32GB or 6.7%.

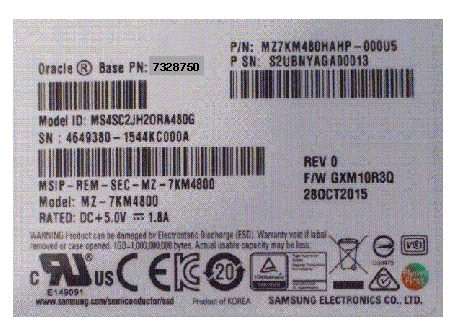

  6. The Samsung model number on the serial number label is MS4SC2JH2ORA480G.
  7. The Oracle model number on the serial number label is MS4SC2JH2ORA480G.
  8. The Product Identification in SCSI Inquiry bytes 16-31 is MS4SC2JH2ORA480G.
