Acme Packet 4600 - Full Components List

Cables Chassis Communication Disk Backplane Disks Ethernet Fan Miscellaneous Power Rack Switch/Hub	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
System Notes: Important information about Acme Packet part number structures.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	120-0033-60-01 [C]	DC Power Cable, 3-Wire, Unterminated to 3-Pin Connector, 8'	n/a
n/a	CBL-0012-60 [C]	AC Power Cord, North America, NEMA 5-15P to C13, 10'	n/a
n/a	120-0004-60 [S]	Short Wave LC to SC Fibre Cable, 3M	n/a
n/a	120-0009-60 [S]	Long Wave LC to SC Fibre Cable, 3M	n/a

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7329776 [F]	FIPS Tamper Event Label	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7082453 [F]	26-Pin System Board to Disk Backplane Signal Cable, 286mm	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7088907 [F]	400GB 2.5" SATA Solid State Drive Assembly	n/a
	7076379	400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400G]	n/a
n/a	7091365 [F]	80GB 2.5" SATA Solid State Drive Assembly	n/a
	7090725	80GB 2.5" SATA Solid State Drive in Enclosure	n/a
	7069827	80GB Intel SSDSC1NB080G4 SATA SSD	n/a
n/a	7331553 [F]	480GB 2.5" SATA Solid State Drive Assembly	7321302 [F] [S]
	7331545	480GB 2.5" SATA Solid State Drive Samsung MZ7KM480HAHP-000U5 [MS5SC2JH2ORA480G]	n/a
n/a	7357681 [F]	480GB 2.5" SATA Solid State Drive Assembly, FSB Certified	n/a
	7357686	480GB 2.5" SATA Solid State Drive, FSB Certified	n/a
n/a	7321302 [F] [S]	480GB 2.5" SATA Solid State Drive Assembly	n/a
	7320023	480GB 2.5" SATA Solid State Drive Samsung [MS4SC2JH2ORA480G]	n/a
	7328750	480GB 2.5" SATA Solid State Drive Samsung (Unique WWN) [MS4SC2JH2ORA480G]	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #

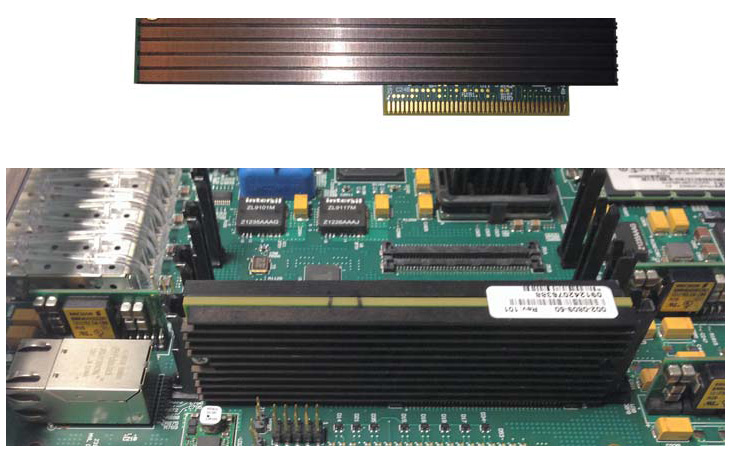

n/a	7088607 [C]	Transcoding Digital Signal Processor Module	n/a
n/a	7334088 [C]	High Speed Secure Services Module Version 3	7088602 [S]  + 7335290 [C]
n/a	7335290 [C]	High Speed Secure Services Module Version 3	n/a
n/a	7337941 [C]	Dual 10GbE SFP NIU/PHY with IPSEC/SRTP and Transcoding, 4x 1GbE SFP	7322457 [C] [S]  + 7089186 [C] [S]
n/a	ICC-0025-60 [C]	1000Base-SX Transceiver	n/a
n/a	ICC-0096-60 [C]	1000Base-LX Transceiver	n/a
n/a	ICC-0180-60 [C]	1000Base-T Copper Transceiver	n/a
n/a	MOD-0083-60 [C]	10Base-SR SFP+ Transceiver	n/a
n/a	MOD-0100-60 [C]	10Base-LR SFP+ Transceiver	n/a
n/a	7088602 [S]	High Speed Secure Services Module Version 3	7335290 [C]

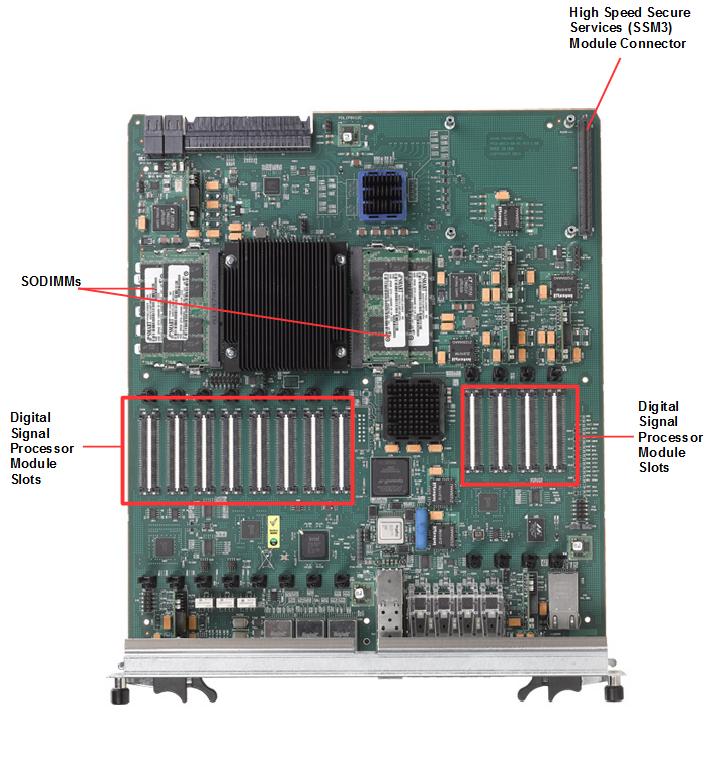

n/a	7089186 [C] [S]	Dual 10GbE SFP NIU/PHY with IPSEC/SRTP and Transcoding	n/a
	MOD-0103-60	4GB DDR3 2-Rank SODIMM Memory Module, 1600MHz	n/a
n/a	7322457 [C] [S]	Dual 10GbE SFP NIU/PHY with IPSEC/SRTP and Transcoding	7089186 [C] [S]

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7089591 [C]	Fan Module, 40x40x28, 29CFM	n/a
n/a	7096473 [C]	Fan Module, 40x40x28, 29CFM	n/a

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7327979	FIPS Tamper Proof Label, DoD UII Label, and FRU Label	n/a
	7321002	DoD UII Label	n/a
	7329776 [F]	FIPS Tamper Event Label	n/a
n/a	AIR-0006-60-01-SPARE [C]	Air Filter, Package of 5 [SKU]	n/a
	AIR-0006-60-01	Air Filter	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	110-0107-60-01 [C]	1100W AC Input Power Supply	n/a
n/a	110-0108-60-01 [C]	1100W -48V DC Input Power Supply	n/a
n/a	7094161 [C]	1100 Watt AC Input Power Supply	110-0107-60-01 [C]
n/a	7094164 [C]	1100 Watt DC Input Power Supply	110-0108-60-01 [C]

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	420-0060-60-01 [C]	19" Rack Mount Brackets	n/a
n/a	420-0061-60-01 [C]	23" Rack Mount Brackets	n/a
n/a	7305712 [C]	19" Rack Mount Kit	n/a
	120-0011-60	Console Adapter Cable	n/a
	120-0020-60	Ground Cable, 10'	n/a
	7300588	Front Mounting Flange	n/a
	7303146	19" Center Mounting Flange	n/a
	7303616	Slide Rails, 20" to 32" Deep	n/a
n/a	7305713 [C]	23" Rack Mount Kit	n/a
	120-0011-60	Console Adapter Cable	n/a
	120-0020-60	Ground Cable, 10'	n/a
	7300588	Front Mounting Flange	n/a
	7303585	23" Center Mounting Flange	n/a
	7303616	Slide Rails, 20" to 32" Deep	n/a
	MTL-0119-60	23" Extension Mounting Bracket	n/a

Switch/Hub
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7323365 [C]	Transcoding Digital Signal Processor Module	7088607 [C]
n/a	7329124 [F]	Acme Packet 4600 FIPS Chassis w/o NIU/PHY Card or Power Supply	n/a
	7321002	DoD UII Label	n/a
	7329776 [F]	FIPS Tamper Event Label	n/a
	7354152	Main Board Assembly	n/a
	7089823	External USB Boot Disk	n/a
	7341974	2.4GHz Core I3 Dual Core CPU/DDR3 Memory Module	n/a
	7354148	Main Board	n/a
n/a	7331253 [F]	Acme Packet 4600 Chassis w/o NIU/PHY Card or Power Supply, 16GB	7300620 [F] [S]
	7331251	Main Board Assembly	n/a
	7089823	External USB Boot Disk	n/a
	7300232	2.4GHz Core i3 Dual Core CPU/DDR3 Memory Module	n/a
	MOD-0142-60	8GB DDR3 SODIMM Memory Module, 1333MHz	n/a
	7330767	Main Board	n/a
n/a	7300620 [F] [S]	Acme Packet 4600 Chassis w/o NIU/PHY Card or Power Supply, 16GB	n/a
	7305884	Main Board Assembly	n/a
	7088610	Main Board	n/a
	7089823	External USB Boot Disk	n/a
	7300232	2.4GHz Core i3 Dual Core CPU/DDR3 Memory Module	n/a
	MOD-0142-60	8GB DDR3 SODIMM Memory Module, 1333MHz	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
