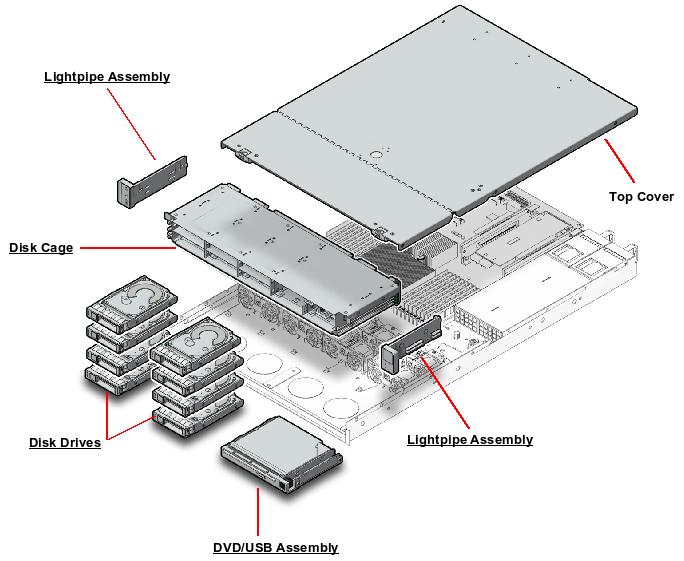

Exploded View Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown Code Manufacturing Part# Description NS 330-4759 CPU Filler NS 541-2636 [F] Lightpipe Assembly NS 330-4421 Right Side Endcap Lightpipe NS 541-2126 Left Side Endcap Lightpipe Assembly NS 330-4419 Lightpipe Button NS 330-4420 Lightpipe Holder NS 330-4424 Power Button NS 599-3689 X4170M2-H1-AA Base Assembly NS 341-4138 PCI Filler Panel NS 541-2739 PCI Cross Beam NS 341-3050 PCI Bar NS 343-0532 Rear Foam Gasket NS 541-4294 Thelma Enclosure Assembly NS 530-3927 [F] PDB to System Board Ribbon Cable NS 530-4228 [C] SFF8087 to SFF8087 Mini-SAS Cable, 690mm NS 530-4417 [C] 6-Pin Fan Power Cable NS 530-4431 [C] Fan Data Ribbon Cable NS 540-7838 Chassis Subassembly NS 541-2115 Disk Cage NS 541-2865 Right Side Cap NS 541-2126 Left Side Endcap Lightpipe Assembly NS 330-4419 Lightpipe Button NS 330-4420 Lightpipe Holder NS 330-4424 Power Button NS 541-2866 Left Side Cap NS 330-4421 Right Side Endcap Lightpipe NS 541-3239 Perforated Top Cover NS 150-4065 Interlock Switch Magnet NS 541-3375 Base Chassis Assembly NS 541-2075 [F] Bus Bar Set NS 341-3096 Long Red Bus Bar NS 341-3104 Short Blue Bus Bar
