Sun Fire B1600 Blade System Chassis - Full Components List

Blade Cables Memory Power Rack System Controller Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Blade
Option #	Manufacturing Part #	Description	Previous Part #
X7501A [S]	540-5078 [C]	Sun Blade B100s (512MB)	n/a
X7502A [S]	540-5079 [C]	Sun Blade B100s (1GB)	n/a
X7503A [S]	540-5454 [C]	Sun Blade B100s (2GB)	n/a
X7512A [S]	540-5548	Sun Blade B100x w/ 1GB memory (2 × 512MB)	n/a
	370-5745 [N]	512MB DDR DIMM	n/a
X7513A [S]	540-5549	Sun Blade B100x w/ 2GB memory (2 × 1GB)	n/a
	370-5746 [C]	1GB DDR DIMM	n/a
X7521A [S]	540-5526	Sun Blade B200x w/ 1GB memory (2 × 512MB)	n/a
	370-4939 1 [C]	512MB Registered DDR DIMM (SPD 0.0)	n/a
X7522A [S]	540-5527	Sun Blade B200x w/ 2GB memory (2 × 1GB)	n/a
	370-4940 2 [C]	1GB Registered DDR DIMM (SPD 0.0)	n/a
X7523A [S]	540-5528	Sun Blade B200x w/ 4GB memory (4 × 1GB)	n/a
	370-4940 3 [C]	1GB Registered DDR DIMM (SPD 0.0)	n/a
X7551A [S]	2GB DDR Memory for B100x (2 × 1GB)
	370-5746 [C]	1GB DDR DIMM	n/a
X7571A [S]	540-5392	Blank Blade	n/a
X8025A [S]	540-5741 [C]	Sun Blade B10p	n/a
X8080A [S]	540-5593 [C]	Sun Blade B10n	n/a
X7511A [N]	540-5547 [N]	Sun Blade B100x w/ 512MB memory (1 × 512MB)	n/a
	370-5745 [N]	512MB DDR DIMM	n/a
X7550A [N]	512MB DDR Memory for B100x (1 × 512MB)
	370-5745 [N]	512MB DDR DIMM	n/a
n/a	540-5860 [C]	Sun Blade B100x, 0MB	n/a
n/a	540-5862 [C]	Sun Blade B200x, 0MB	n/a

1 FRU F370-4939 contains two 512MB DIMMs. 2 FRU F370-4940 contains two 1GB DIMMs. 3 FRU F370-4940 contains two 1GB DIMMs.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X320B [S]	Power Cord Kit for Sun Fire B1600
	180-1189 [C]	IEC 320 C13 to NEMA 6-15 - 10A/250V 3.0, Black	n/a
X383L [S]	Localized Power Cord Kit - Danish
	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	530-1819 [C]
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-1819 [C]	Localized Power Cord Kit - Danish	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-4939 4 [C]	512MB Registered DDR DIMM (SPD 0.0)	n/a
n/a	370-4940 5 [C]	1GB Registered DDR DIMM (SPD 0.0)	n/a

4 FRU F370-4939 contains two 512MB DIMMs. 5 FRU F370-4940 contains two 1GB DIMMs.

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1544 [C]	Type A172 1018 Watt AC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X7591A [S]	370-5561	19" 2-Post Rack Mount Kit	n/a
X7593A [S]	370-5562	23" 2-Post Rack Mount Kit	n/a
X7594A [S]	370-5563	23" 4-Post Rack Mount Kit	n/a

System Controller
Option #	Manufacturing Part #	Description	Previous Part #
X7541A [S]	540-5185 [C]	Switch and System Controller (SSC) Assembly/FRU	n/a
	501-6304	System Controller	n/a
	501-6325	Switch	n/a
	501-6397	LED Board	n/a
	540-5186	Enclosure	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

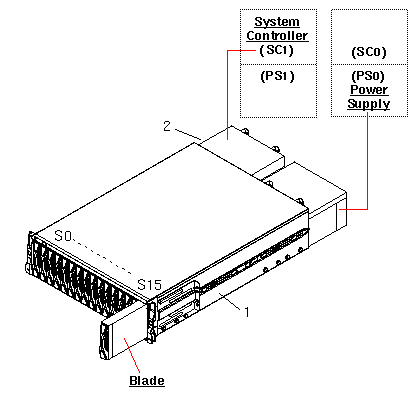

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	602-2260	16x Blank Blade, Dual Power, Single SSP
2	370-5991	Switch and System Controller Filler Panel
NS	540-5082 [F]	16-Slot Chassis Assembly/FRU
NS	380-0527	16-Slot Chassis
NS	n/a	Hair Pin Cotter Pin
	540-5392	Blank Blade
NS	565-1713	Accessory Kit
NS	530-2093 [F]	Shielded RJ45 to RJ45 Cable, 4M
NS	530-2889	RJ45 to DB25 Serial Port Adapter
NS	540-5775	Rack Bracket Spacer
NS	340-7775	Rack Alignment Tool
