Sun Fire B10n

1-Slot Content Load Balancing Blade

Codename: Puma

Option 8080

501-6404 540-5593

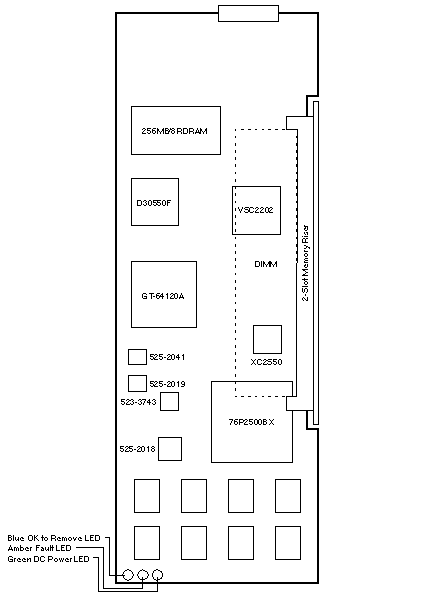

B10n Board B10n Assembly/FRU

Table Legend
[C] = Customer Replaceable Unit (CRU)

PART # DESCRIPTION
595-6900
540-5593 [C]
370-5965
501-6404
375-3131
370-5671 		Sun Fire B10n Option X8080A
Sun Fire B10n Assembly/CRU
Enclosure
System Board
Riser
512MB Memory

Notes

  1. The minimum operating system is Solaris 8 5/03.
  2. The Sun Fire B1600 requires system controller firmware >=1.1.3.
  3. The bottom memory slot is blocked by the VSC2202 heatsink.
  4. The warranty is voided if the cover seals are broken.
  5. Updates for the B10n are available in patch 116330.

References

  1. Sun Fire B10n Content Load Balancing Blade (for the Sun Fire B1600 chassis) Documentation.
  2. Sun Fire B1600 Blade System Chassis FRU Replacement Guide, 817-2578.
  3. Sun Fire B1600 Blade System Chassis Module Replacement Guide, 817-3435.
