Sun StorageTek[tm] SL8500 Modular Library System - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
371-2210
[F] Buy
3V Lithium Coin Cell Battery
n/a
CAP/Elevator/PTP
Option #
Manufacturing
Description
Previous
n/a
313852104
Pass Through Port (PTP) Mounting Bracket
n/a
n/a
313854502
[F]
4 Cell Array, Elevator
n/a
n/a
313927401
CAP, Magazine Assembly
n/a
n/a
313927402
[F]
CAP, Magazine Assembly
313927401
n/a
CAP, Clip, Guide, Magazine n/a
n/a
313941206
Pass Through Port (PTP) End CAM Plate
n/a
n/a
313997501
CAP Door Alignment Pin, Right Front Door
n/a
n/a
314810601
[F]
CAP Mounting Bracket Shim
n/a
n/a
314825202
Pass Through Port (PTP) End Stop Plate
n/a
n/a
314825203
Pass Through Port (PTP) End Stop Plate
314825202
n/a
418615001 [F]
CAP Gear/Retainer Clip Kit
n/a
n/a
418628001
[F]
Pass Through Port (PTP) Assembly
419641405
[F]
n/a
419600502
Cable Assembly, Drive TTI, IBM LTO2/LTO3/LTO4/LTO5, Drive Tray
419600501
n/a
419639704
[F]
CAP Assembly
n/a
n/a
419641405
[F]
(Preferred) Pass Through Port (PTP) Assembly
n/a
n/a
419804501
[F]
Z-Frame Elevator Pulley Assembly, Left
n/a
n/a
419804601
[F]
Z-Frame Elevator Pulley Assembly, Right
n/a
n/a
419804802
[F]
Elevator Motor Assembly
n/a
n/a
419804901
[F]
Turntable Assembly
n/a
n/a
419838103 [F]
Elevator Z Carriage Wheel / Roller
n/a
n/a
419847402
[F]
CAP, Lock Assembly
n/a
n/a
419869901
[F]
CAP Switch/Motor Assembly (New Style)
n/a
CAP Motor Gearbox Assembly (Old Style) n/a
n/a
7024816
[F]
Elevator Motor Assembly
419804802
[F]
n/a
7024886
[F]
CAP, Lock Assembly
419847402
[F]
n/a
7024890
[F]
CAP Assembly
419639704
[F]
n/a
7025024
[F]
CAP Switch/Motor Assembly (New Style)
419869901
[F]
CAP Motor Gearbox Assembly (Old Style)
419869301
n/a
7062067
[F]
Pass Through Port (PTP) Assembly
418628001
[F]
+
n/a
7094525 [F]
Bezel Latch Assembly, Bulk CAP
n/a
n/a
7094539 [F]
Motor/Coupler Assembly, Bulk CAP
n/a
n/a
7302828
[F]
Z-Frame Elevator Pulley Assembly, Right
n/a
n/a
7302829
[F]
Z-Frame Elevator Pulley Assembly, Left
n/a
n/a
7302871
[F]
Turntable Assembly
n/a
n/a
7308299 [F]
Catch Assembly, Bulk CAP
n/a
n/a
7311421
[F]
CAP, Magazine Assembly
313927402
[F]
+
n/a
CAP, Clip, Guide, Magazine n/a
n/a
7313225 [F]
Bezel Latch Assembly, Bulk CAP
n/a
n/a
7313396 [F]
Magazine, Bulk CAP
n/a
n/a
7313647
[F]
Pass Through Port (PTP) Assembly
7062067
[F]
+
n/a
7335050 [F]
Pass Thought Port Mechanism Assembly, SL85PT
n/a
n/a
7343237 [F]
Motor/Coupler Assembly, Bulk CAP
7094539 [F]
n/a
419626501
[S]
Pass Through Port (PTP) End CAM Plate
313941206
Cables
Option #
Manufacturing
Description
Previous
n/a
10800160
[F]
FC Coupler, LC to LC, Drive Tray
n/a
n/a
10800228
[F]
Cable Assembly,FC,LC to LC Duplex,Short Wave,Drive to Tray Interface
n/a
n/a
10800280
Cable Assembly,FC,LC to LC Duplex,Long Wave,Drive to Tray Interface
n/a
n/a
10800307
Cable Assembly, FC, LC to LC, Short Wave, OEM Drives, Drive to Tray Interface
n/a
n/a
10800310
LC TO LC DUPLEX 10 MTR 50/125 ASSEMBLY,RISER, T10000D
n/a
n/a
10800313
LC TO LC DUPLEX 10 MTR 50/125 ASSEMBLY,PLENUM, T10000D
n/a
n/a
10800316
[F]
Cable Assembly,FC,LC to LC Duplex,Short Wave,Drive to Tray Interface
10800228
[F]
n/a
10800330
FC 9/125 LC-LC DUPLEX, 10MTR, PLENUM, T10000D
n/a
n/a
10800332
FC 9/125 LC-LC DUPLEX, 50 MTR, PLENUM, T10000D
n/a
n/a
10800333
FC 9/125 LC-LC DUPLEX, 50 MTR, RISER, T10000D
n/a
n/a
10800339
[F]
Cable Assembly, FC, LC to LC Duplex, Long Wave, Drive to Tray Interface
10800280
n/a
313804402
[F]
Cable Assembly, PS to Drive (OEM), Drive Tray
n/a
n/a
313804904
[F]
Cable Assembly, HBF to Rail Power/Signal
n/a
n/a
313843403
Cable Assembly, AC PWR to OP Panel
n/a
n/a
313843505
Cable Assembly, Elevator Motor, SSD Motor & Switch, Turntable
313843504
[S]
n/a
313843804
Cable Assembly, HBN to Yellow Ceiling Lights (Warning)
n/a
n/a
313844003
[F]
Cable Assembly, HBX to HBF, Rails 1-2
n/a
n/a
313844103 [F]
Cable, Assy, HBN-HBZ
n/a
n/a
313844203
Cable Assembly, HBN to Front Door Switches
n/a
n/a
313844502
Cable Assembly, HBN to SSD Switches
n/a
n/a
313844601
Cable Assembly, HBN to HBX (CIM)
n/a
n/a
313846802
Cable Assembly, HBY to HBO, Drive Bays 1-8
n/a
n/a
313846902
Cable Assembly, HBY to HBO, Drive Bays 9-16
n/a
n/a
313847002
Cable Assembly, HBY to HBO, Drive Bays 17-24
n/a
n/a
313847102
Cable Assembly, HBY to HBO, Drive Bays 25-32
n/a
n/a
313847903
[F]
Cable Assembly, HBY to HBF, DRV PS 19-22
n/a
n/a
313851403
Cable Assembly, HBX to HBF, Rails 3-4
n/a
n/a
313891703
Cable Assembly, HBN to HBV
313891702
[S]
n/a
313925701
[F]
Cable Assembly, Jumper, Front Door Switches
n/a
n/a
313926602
Cable Assembly, SSD Position Switches (Left or Right)
n/a
n/a
313941101
[F]
Cable Assembly, Jumper, HBF to HBF
n/a
n/a
313981002
Cable Assembly, Jumper,Power/Signal, HBF to Rail
n/a
n/a
313990402
Cable Group, Expansion Module Kit
n/a
Cable Assembly, Jumper, HBLW to HBLW n/a
Cable Assembly, Jumper, HBN to EPO, Expansion Module n/a
Cable Assembly, Jumper, HBN to HBX, Expansion Module n/a
n/a
314806801
Cable Assembly Bundle, HBY to HBO, Drive Bays 1-32
n/a
n/a
314806901
[F]
Cable Assembly, HBY to HBO, Drive Bays 33-64
n/a
n/a
315464001
[F]
Cable Assembly, TTI, T10000 A and B, Drive Tray
n/a
n/a
419600501
Cable Assembly, Drive TTI,IBM LTO2/LTO3/LTO4/LTO//LTO6/LTO7,Drive Tray
n/a
n/a
419603601
[F] Buy
Cable Assembly, HBF to Rail Power/Signal
313804904
[F]
n/a
419604501
[F] Buy

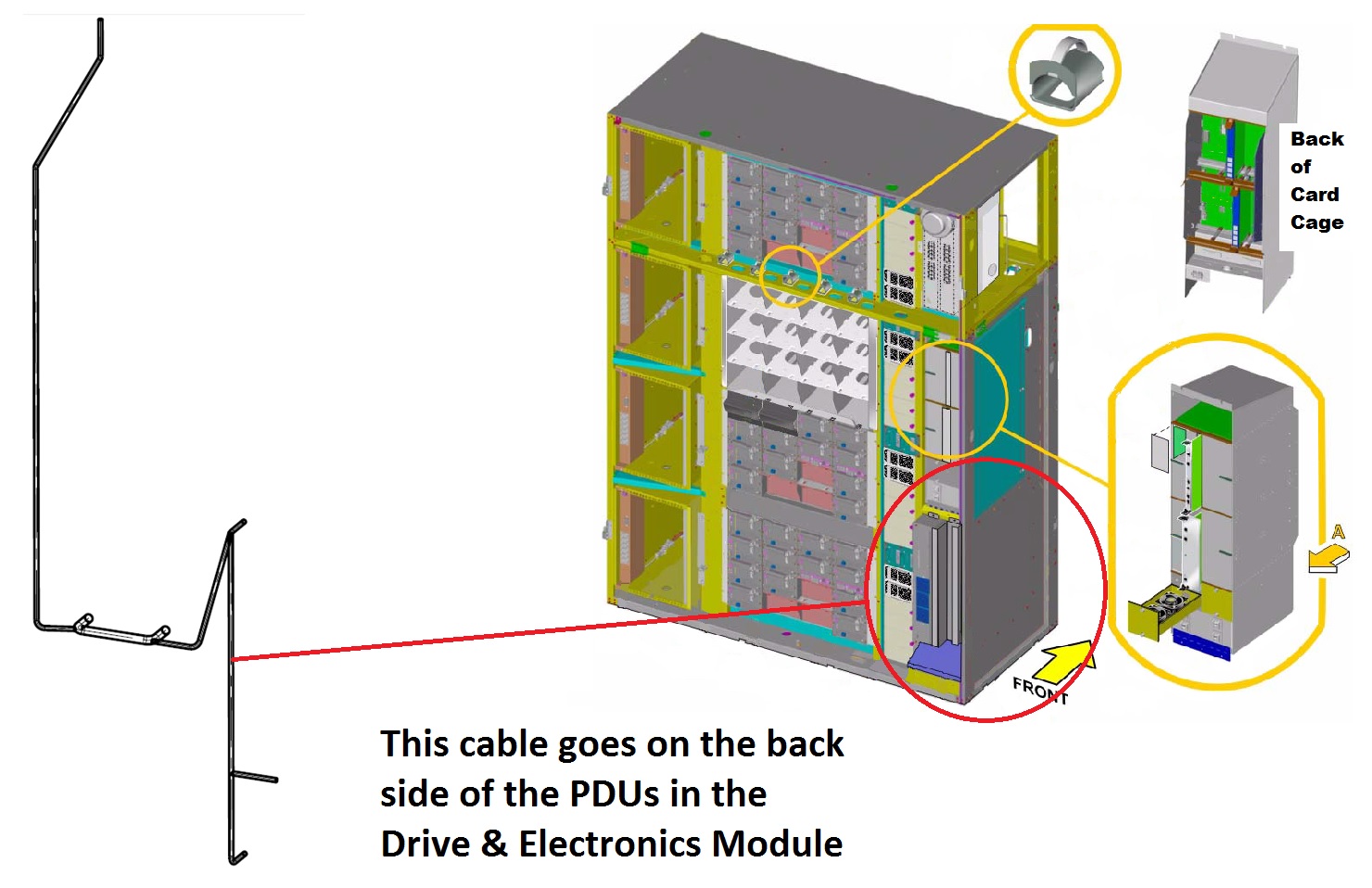

Cable Assembly, PDU Signal
n/a
n/a
419606201
Cable Assembly, AC PWR to OP Panel
313843403
n/a
419606301
[F]
Cable Assembly, HBN to Yellow Ceiling Lights (Warning)
313843804
n/a
419606401
[F] Buy
Cable Assembly, HBX to HBF, Rails 1-2
313844003
[F]
n/a
419606501
Cable Assembly, HBN to Front Door Switches
313844203
n/a
419606801
[F]
Cable Assembly, HBN to HBX (CIM)
313844601
n/a
419608001
[F] Buy
Cable Assembly, HBY to HBF, DRV PS 19-22
313847903
[F]
n/a
419621501
[F] Buy
Cable Assembly, Jumper, Front Door Switches
313925701
[F]
n/a
419621901
Cable Assembly, SSD Position Switches (Left or Right)
313926602
n/a
419626401
[F] Buy
Cable Assembly, Jumper, HBF to HBF
313941101
[F]
n/a
419629601
Cable Assembly, Jumper, Power/Signal, HBF to Rail
313981002
n/a
419631201 [F]
Cable Group, Expansion Module Kit
313990402
Cable Assembly, Jumper, HBLW to HBLW
313891302
[F]
Cable Assembly, Jumper, HBN to EPO, Expansion Module
313891801
Cable Assembly, Jumper, HBN to HBX, Expansion Module
313893001
[S]
n/a
419634001
[F] Buy
Cable Assembly Bundle, HBY to HBO, Drive Bays 1-32
314806801
Cable Assembly, HBY to HBO, Drive Bays 1-8
313846802
Cable Assembly, HBY to HBO, Drive Bays 9-16
313846902
Cable Assembly, HBY to HBO, Drive Bays 17-24
313847002
Cable Assembly, HBY to HBO, Drive Bays 25-32
313847102
n/a
419634101
[F] Buy
Cable Assembly, HBY to HBO, Drive Bays 33-64
314806901
[F]
n/a
419643501
Cable Assembly,Drive TTI,SDLT600,Drive Tray
n/a
n/a
419643502
Cable Assembly, Drive TTI, SDLT600, Drive Tray
419643501
n/a
419644201
[F]
Cable Assembly,Drive TTI,HP LTO3/LTO4 & DLTS4, Drive Tray
n/a
n/a
419644202
[F]
Cable Assembly,Drive TTI,HP LTO3/LTO4 & DLTS4, Drive Tray
419644201
[F]
n/a
419644301
[F]
Cable Assembly, PS to Drive (OEM), Drive Tray
313804402
[F]
n/a
419837502
Cable Assembly, TTI,T10000 C, Drive Tray
n/a
n/a
419837503
Cable Assembly, TTI, T10000 C, Drive Tray
419837502
n/a
7046328
Cable Assembly, TTI, HP LTO5 & LTO6, Drive Tray
n/a
n/a
7057671 [F]
Cable/Switch ASM, Z Lock
n/a
n/a
7068601
CABLE ASSY,JMPR,LC-LC,50/125,OM4-50M,RISER, T10000D
n/a
n/a
7068604
Cable Assembly, JMPR,LC-LC,50/125,OM4-50M,PLENUM, T10000D
n/a
n/a
7097119
[F]
Cable Assembly, PDU Signal
n/a
n/a
7303351 [F]
Cable/Switch ASM, CAP Closed
n/a
n/a
10800331 [S]
FC 9/125 LC-LC DUPLEX, 10MTR, RISER, T10000D
n/a
n/a
313843103
[S]
Cable Assembly, HBV to HBZ
n/a
n/a
313843104
[S]
Cable Assembly, HBV to HBZ
313843103
[S]
n/a
313843504
[S]
Cable Assembly, Elevator Motor, SSD Motor & Switch, Turntable
n/a
n/a
313843702
[S]
Cable Assembly,HBF to Ceiling Lights
n/a
n/a
313843703
[S]
Cable Assembly, HBF to Ceiling Lights
313843702
[S]
n/a
313847202
[S]
Cable Assembly, HBY to HBO, Drive Bays 33-40
n/a
n/a
313847302
[S]
Cable Assembly, HBY to HBO, Drive Bays 41-48
n/a
n/a
313847402
[S]
Cable Assembly, HBY to HBO, Drive Bays 49-56
n/a
n/a
313847502
[S]
Cable Assembly, HBY to HBO, Drive Bays 57-64
n/a
n/a
313891401
[S]
Cable Assembly, Jumper, HBN to HBX (RIM)
n/a
n/a
313891702
[S]
Cable Assembly,HBN to HBV
n/a
n/a
313917601
[S]
Cable Assembly, Fans, Accessory Rack
n/a
n/a
313975901
[S]
Cable Assembly, Ethernet Switch to HBZ or OP Panel
n/a
n/a
314810702
[S]
Cable Assembly, HBZ to CAP
n/a
n/a
419606701
[S]
Cable Assembly, HBN to SSD Switches
313844502
n/a
419607301
[S]
Cable Assembly, HBY to HBO, Drive Bays 33-40
313847202
[S]
n/a
419607401
[S]
Cable Assembly, HBY to HBO, Drive Bays 41-48
313847302
[S]
n/a
419607501
[S]
Cable Assembly, HBY to HBO, Drive Bays 49-56
313847402
[S]
n/a
419607601
[S]
Cable Assembly, HBY to HBO, Drive Bays 57-64
313847502
[S]
n/a
419608301
[S]
Cable Assembly, HBX to HBF, Rails 3-4
313851403
n/a
419616401
[S]
Cable Assembly, Jumper, HBN to HBX (RIM)
313891401
[S]
n/a
419619801
[S]
Cable Assembly, Fans, Accessory Rack
313917601
[S]
n/a
419628801
[S]
Cable Assembly, Ethernet Switch to HBZ or OP Panel
313975901
[S]
n/a
419634301
[S]
Cable Assembly, HBZ to CAP
314810702
[S]
Cards (PWA)
Option #
Manufacturing
Description
Previous
n/a
313818303
[F]
HBX Card, Back of Card Cage, PWA
n/a
n/a
313818304
[F]
HBX Card, Back of Card Cage, PWA
313818303
[F]
n/a
313819302
[F]
HBY Card, Back of Card Cage, PWA
n/a
n/a
313819303
[F]
HBY Card, Back of Card Cage, PWA
313819302
[F]
n/a
313827612
[F]
HBN Card, Door Switches, PWA
n/a
n/a
313827613
[F]
HBN Card, Door Switches, PWA
313827612
[F]
n/a
313830203
[F]
HBO Card, Drive Bays, PWA
n/a
n/a
313830204
[F]
HBO Card, Drive Bays, PWA
313830203
[F]
n/a
313838304
[F]
HBLW Card, White Ceiling Lights, PWA
n/a
n/a
313839303
[F]
HBLY Card, Yellow Ceiling Lights, PWA
n/a
n/a
313839304
[F]
HBLY Card, Yellow Ceiling Lights, PWA
313839303
[F]
n/a
313958205
[F]
HBF Card, Power Supplies and HBS Modules, PWA
n/a
n/a
313958206
[F]
HBF Card, Power Supplies and HBS Modules, PWA
313958205
[F]
n/a
314808901
[F]
HBV Card, Customer Interface Module Power Supply Interface, PWA
n/a
n/a
419877201 3
[F]
PUK Card, PWA
n/a
n/a
419945201 4
[F]
HBK Card, Front of Card Cage, PWA
n/a
n/a
419950201
[F]
(Preferred) HBCR Card, Library Controller, Front of Card Cage, PWA
n/a
n/a
7015331
[F]
(Preferred) HBT Card, Drive Controller, Front of Card Cage, PWA
n/a
n/a
7050512
[F]
HBY Card, Back of Card Cage, PWA
313819303
[F]
+
n/a
7050521
[F]
HBF Card, Power Supplies and HBS Modules, PWA
313958206
[F]
+
n/a
7054538 6
[F]
HBK Card, Front of Card Cage, PWA
419945201 5
[F]
n/a
7054542
[F]
HBT Card, Drive Controller, Front of Card Cage, PWA
7015331
[F]
n/a
7054561
[F]
PUX Card, PWA
n/a
n/a
7054595
[F]
HBX Card, Back of Card Cage, PWA
313818304
[F]
+
n/a
7054610 8
[F]
PUK Card, PWA
419877201 7
[F]
n/a
7054613
[F]
HBCR Card, Library Controller, Front of Card Cage, PWA
419950201
[F]
n/a
7060012
[F]
HBLW Card, White Ceiling Lights, PWA
n/a
n/a
7065514 [F]
PCA, HBN Card
n/a
n/a
7331274 [F]
PCA, HBN2 Card
7065514 [F]
3V Lithium Coin Cell Battery
n/a
n/a
313817206
[S]
HBC Card, Library Controller, Front of Card Cage, PWA
n/a
n/a
313817306
[S]
HBC Card, Library Controller, Front of Card Cage, PWA
313817206
[S]
n/a
419942201
[S]
HBC2 Card, Library Controller, Front of Card Cage, PWA
313817306
[S]
+
3 See FAB 1019657.1 for information about ordering this part.4 See FAB 1019657.1 for information about ordering this part.5 See FAB 1019657.1 for information about ordering this part.6 See FAB 1019657.1 for information about ordering this part.7 See FAB 1019657.1 for information about ordering this part.8 See FAB 1019657.1 for information about ordering this part.
Fan
Option #
Manufacturing
Description
Previous
n/a
156551401
[F]
Fan Assembly, Drive Tray
156510801
[F]
[S]
n/a
156552701
Fan Assembly, Drive Tray, T10000C
n/a
n/a
156552702
Fan Assembly, Drive Tray, T10000C
156552701
n/a
7052399
[F]
Fan Assembly, Drive Tray T10000D
n/a
n/a
156510801
[F]
[S]
Fan Assembly, Drive Tray
n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
n/a
10800533
[F]
4GB Long Wave SFP Transceiver
n/a
n/a
314473201
[F]
2GB Long Wave SFP Transceiver
n/a
n/a
315434401
[F]
2GB Short Wave SFP Transceiver
n/a
n/a
315434501
[F]
2GB Long Wave SFP Transceiver
314473201
[F]
n/a
315464501
[F]
4GB Short Wave SFP Transceiver
n/a
n/a
7067899
[F]
16Gb/Sec Long Wave SFP+ Transceiver
n/a
n/a
315464601
[F]
[S]
4GB Long Wave SFP Transceiver
n/a
Miscellaneous
Option #
Manufacturing
Description
Previous
n/a
10501902
[F]

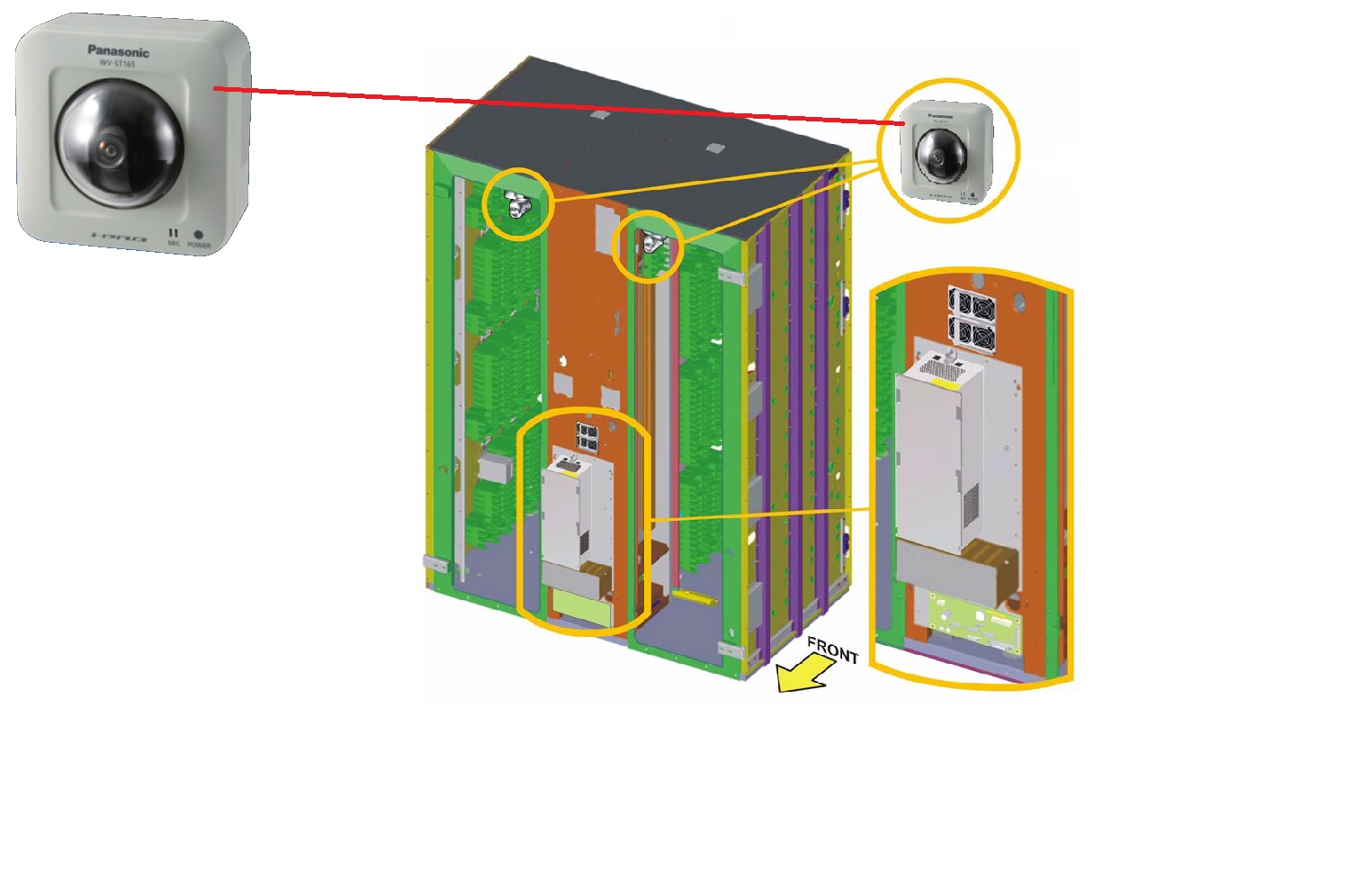

SL8500 Remote Camera
n/a
n/a
313769402
[F]
HBS Tray Assembly
n/a
n/a
313854202
[F]
13 Cell Array,Outside Walls
n/a
n/a
313854302
[F]
8 Cell Array, Below PTP
n/a
n/a
313854602
[F]
3 Cell Array, Drop Off
n/a
n/a
313854702
[F]
14 Cell Array, Inside Walls
n/a
n/a
313893903
[F]
Keypad Assembly
n/a
n/a
313922404
[F]
Target Bezel T9x40 Drive
313922403
[F]
n/a
313925602
Drive Bay, Vacancy Plate
n/a
n/a
313926502 [F]
(Preferred) HBZ Module Assembly
n/a
n/a
313979001
Keeper, Door Stop
n/a
n/a
313980501
[F]
Cable Spools, CIM Behind Safety Door and By Drive Bays
n/a
n/a
313982002
[F]
Bracket, Front Door Switch
n/a
n/a
313994502
Leveling Load Plates
n/a
n/a
313998003
[F]
Midplane and Card Cage Assembly
n/a
n/a
313998302
[F]
Fan Tray Assembly, EM,Card Cage
n/a
n/a
313998701
[F] Buy
Drive Bay, Vacancy Plate
313925602
n/a
313998902
[F]
Front Door Hinge, Upper Right, Carbon Black
n/a
n/a
313999002
Front Door Hinge, Upper Left, Carbon Black
n/a
n/a
314800002
[F]
Front Door Hinge, Lower Left, Carbon Black
n/a
n/a
314800102
Front Door Hinge, Lower Right, Carbon Black
n/a
n/a
314803903
Door Stop Assembly,Rear,Right
n/a
n/a
314804003
Door Stop Assembly,Rear,Left
n/a
n/a
314811901 [F]
Left Remote Camera Bracket
n/a
n/a
314812001 [F]
Right Remote Camera Bracket
n/a
n/a
314815901
Z Frame
n/a
n/a
314821804
Diagnostic Cartridge Label Kit
n/a
SDLT Diagnostic Label Sheet n/a
LTO1 Diagnostic Label Sheet n/a
T9x40 Diagnostic Label Sheet n/a
LTO2 Diagnostic Label Sheet n/a
SDLT600 Diagnostic Label Sheet n/a
LTO3 Diagnostic Label Sheet n/a
T10000 Diagnostic Label Sheet n/a
n/a
314821805 Buy
Diagnostic Cartridge Label Kit
314821804
SDLT Diagnostic Label Sheet n/a
LTO1 Diagnostic Label Sheet n/a
T9x40 Diagnostic Label Sheet n/a
LTO2 Diagnostic Label Sheet n/a
SDLT600 Diagnostic Label Sheet n/a
LTO3 Diagnostic Label Sheet n/a
T10000 Diagnostic Label Sheet n/a
LTO5 Diagnostic Label Sheet n/a
LTO4 Diagnostic Label Sheet n/a
T10000 C Diagnostic Label Sheet n/a
n/a
314858102
Interior Rail Power Emergency Power Off Switch
n/a
n/a
n/a
n/a
314869801
Column Label Set
n/a
n/a
410273302
[F]
Detector, Smoke, Photoelectric
n/a
n/a
410273303
[F]
Detector, Smoke, Photoelectric
410273302
[F]
n/a
410273703
[F]
Base Assembly, Smoke Detector
n/a
n/a
410273704
[F]
Base Assembly, Smoke Detector
410273703
[F]
n/a
418614701 [F]
SL8500 Hardware Kit - Contains the following:
n/a
Star Nuts - for Left and Right RIM Reinforcement Channels (40 pcs) n/a
CAP Cable Retention Clip (10 pcs) n/a
n/a
Front Door Hinges & Endstop Mounting Screws (16 pcs) n/a
Door Stops, Scanner Callibration Targets (10 pcs) n/a
Torx 25 Assembly Screws (97 pcs) SL3000/SL8500 n/a
Leveling Load Plates & Screws (14 pcs) n/a
n/a
n/a
418614801 [F]
Front Door Switch Assembly with Cable and Switch Bracket
n/a
n/a
419605001
[F] Buy
Fan Tray Assembly, EM,Card Cage
313998302
[F]
n/a
419605403 [F]
Left Front Door Assy
n/a
n/a
419605503 [F]
Right Front Door Assy
n/a
n/a
419605604
[F]
Bracket, Operator Panel
n/a
n/a
419617902 11
[F]
Local Operator Panel SUN
419617901 9
[S]
+
n/a
419630101
[F] Buy
Bracket,Front Door Switch
313982002
[F]
n/a
419632601
[F] Buy
Front Door Hinge, Upper Right, Carbon Black
313998902
[F]
n/a
419632701
[F] Buy
Front Door Hinge, Upper Left, Carbon Black
313999002
n/a
419633201
[F] Buy
Front Door Hinge, Lower Left, Carbon Black
314800002
[F]
n/a
419633301
[F] Buy
Front Door Hinge, Lower Right, Carbon Black
314800102
n/a
419633601
[F] Buy
Door Stop Assembly,Rear,Right
314803903
n/a
419633701
Door Stop Assembly,Rear,Left
314804003
n/a
419636401 [F]
Right Safety Door Stop
n/a
n/a
419636502 [F]
Left Safety Door Stop
n/a
n/a
419643903
Facade Assembly, Lower, Carbon Black
n/a
n/a
419643904
[F]
Façade Assembly, Lower, Charcoal Grey
419643903
n/a
419647201
[F]
Z Frame
314815901
n/a
419801101
[F]
HBS Tray Assembly
313769402
[F]
n/a
419802401
[F] Buy
Keypad Assembly
313893903
[F]
n/a
419802701
[F]
Midplane and Card Cage Assembly
313998003
[F]
n/a
419803703
[F]
HBZ Module Assembly
n/a
n/a
419803704
[F]
HBZ Module Assembly
419803703
[F]
n/a
419806402
[F]
Motor Assembly, Service Safety Door
n/a
n/a
419818903 [F]
Safety Door Sub-assembly
n/a
n/a
7012447 [F]
HP LTO4 Dione Encryption Adapter Card
n/a
n/a
7012964 14
[F]
Local Operator Panel, Linux
419617904 12
[S]
+
n/a
7025067
[F]
Motor Assembly, Service Safety Door
419806402
[F]
n/a
7043761 [F]
Brush/Sweeper Assembly
n/a
n/a
7051122
SL8500 Remote Cameras Kit with 2 Cameras, 2 mounts, 2 cable adapters and 3 Cable Ties
n/a
n/a
SL8500 Remote Camera Mount n/a
n/a
n/a
n/a
7056302
[F]
HBS Tray Assembly
419801101
[F]
+
n/a
7058169 [F]
BDM Install Kit
n/a
n/a
7058401 [F]
Left Front Door with Window Assy
n/a
n/a
7059709 [F]
Facade Assembly, Front, Center with Sun Over Oracle Logo
419643904
[F]
+
n/a
7062158
[F]
HBZ Module Assembly
419803704
[F]
+
n/a
7062833
[F]
Z Frame
419647201
[F]
+
n/a
7084361 [F]
PCA, HBY2
n/a
n/a
7086689 [F]
Base Assembly, Smoke Detector, YBO-R/6R
n/a
n/a
7087129 [F]
PCA, HBF2
n/a
n/a
7087132 [F]
PCA, HBO2
n/a
n/a
7091578 [F]
Keypad Assembly, Door, Bulk CAP
n/a
n/a
7095089 [F]
Facade Assembly, Front, Center with Oracle Logo
n/a
n/a
7301766 [F]
Detector, Smoke, Photoelectric, Hochiki SLR-E3N
n/a
n/a
7301833 [F]
PCA, VLX
n/a
n/a
7309656 [F]
PCA, VLX
n/a
n/a
7311518 15
[F]
Local Operator Panel, Linux
n/a
n/a
7312349 [F]
PCA, HBX2
n/a
n/a
7313325
[F]
HBZ Module Assembly
7062158
[F]
+
n/a
7314256 [F]
PCA, VLX
n/a
n/a
7316012 [F]
PCA, VLX
7314256 [F]
n/a
7321762 [F]
HBV2 Card Assembly
n/a
n/a
7321862 [F]
HBS2 Tray Assembly
n/a
n/a
7325629 [F]
Electronics Module Assembly
n/a
n/a
7334288 [F]
PCA, HBCR2
n/a
n/a
7334294 16
[F]
PCA, HBT2
n/a
n/a
7335040 [F]
HBZ Module Assembly
n/a
n/a
7335651 [F]
PCA, HBCR2
n/a
n/a
7344873 [F]
PCA, HBCR2
n/a
n/a
7344979 [F]
HBCR2 Card, Library Controller, Front of Card Cage, PWA
n/a
n/a
7345202 [F]
PCA, HBK2
n/a
n/a
7346929 [F]
PCA, VLX
n/a
n/a
104605
[S]
Bracket, Operator Panel, F/B (Field Bill)
n/a
n/a
313899503 17
[S]
Local Operator Panel, v2.20, STK
n/a
n/a
313978801
[S]
Door Stop, Left Front Door
n/a
n/a
313978901
[S]
Door Stop, Right Front Door
n/a
n/a
313994503
[S]
Leveling Load Plates
313994502
n/a
419617901 19
[S]
Local Operator Panel, v4.10, SUN
313899503 18
[S]
n/a
419617903 20
[S]
Local Operator Panel, SLC4.50, OS5.01, Sun
n/a
n/a
419617904 22
[S]
Local Operator Panel, SLC4.50, OS5.01, Sun
419617903 21
[S]
n/a
419618201
[S]
Bracket, Rear Door Hinge
n/a
n/a
419618202
[S]
Bracket, Rear Door Hinge
419618201
[S]
n/a
419629201
[S]
Keeper, Door Stop
313979001
n/a
419632602
[S]
Front Door Hinge, Upper Right, Charcoal Grey
n/a
n/a
419632702
[S]
Front Door Hinge, Upper Left, Charcoal Grey
419632701
[F]
+
n/a
419633202
[S]
Front Door Hinge, Lower Left, Caharcoal Grey
419633201
[F]
+
n/a
419633302
[S]
Front Door Hinge, Lower Right, Charcoal Grey
419633301
[F]
+
n/a
419804101
[S]
Interior Rail Power Emergency Power Off Switch
314858102
n/a
n/a
9 If replacing Operator Panel P/N 313899503 with this newer version, order the mounting bracket 419605604 via the NOPRT process. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.10 If replacing this Operator Panel, bracket 419605604 and current Operator Panel 7012964 must also be ordered. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.11 If replacing Operator Panel P/N 313899503 with this newer version, order mounting bracket 419605604 via the NOPRT process. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.12 If replacing Operator Panel P/N 313899503 with this newer version, order mounting bracket 419605604 via the NOPRT process. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.13 If replacing Operator Panel P/N 313899503 with this newer version, order mounting bracket 419605604 via the NOPRT process. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.14 If replacing Operator Panel P/N 313899503 with this newer version, order mounting bracket 419605604 via the NOPRT process. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.15 If replacing Operator Panel P/N 313899503 with a newer version, order mounting bracket 419605604 via the NOPRT process. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.16 Reference SL8500/SL3000 - RoHS 2016 Parts Compatibility (Doc ID 2174767.1) 17 If replacing this Operator Panel, bracket 419605604 and current Operator Panel 7012964 must also be ordered. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.18 If replacing this Operator Panel, bracket 419605604 and current Operator Panel 7012964 must also be ordered. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.19 If replacing Operator Panel P/N 313899503 with this newer version, order the mounting bracket 419605604 via the NOPRT process. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.20 If replacing Operator Panel P/N 313899503 with this newer version, order mounting bracket 419605604 via the NOPRT process. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.21 If replacing Operator Panel P/N 313899503 with this newer version, order mounting bracket 419605604 via the NOPRT process. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.22 If replacing Operator Panel P/N 313899503 with this newer version, order mounting bracket 419605604 via the NOPRT process. The original CB/FB_104605 is no longer available. See knowledge article 1552531.1 for details.
Power
Option #
Manufacturing
Description
Previous
n/a
313769604
[F]
AC Power Distribution Unit (PDU), 1PH
n/a
n/a
313886902
[F]
N+1 Power Assembly, AC
n/a
n/a
313897804
[F]
AC Power Distribution Unit (PDU), Delta
n/a
n/a
313897904
[F]
AC Power Distribution Unit (PDU), WYE
n/a
n/a
314320201
[F]
Power Supply, AC/DC, 95W, SDLT/LTO Drive Tray
n/a
n/a
314320303
[F]
Power Supply, AC/DC, 132W, T9x40 Drive Tray
n/a
n/a
314335803
[F]
Power Supply, AC/DC, 133W, T10000 A and B, Drive Tray
n/a
n/a
314343901
[F]
Card Cage Power Supply,AC/DC,200W
n/a
n/a
314344601
[F]
Power Supply,AC/DC,95W,SDLT/LTO Drive Tray
314320201
[F]
n/a
314344701
[F]
Power Supply, AC/DC,132W, T9x40 Drive Tray
314320303
[F]
n/a
314345801
[F]
Power Supply, AC/DC, 133W, T10000 A and B, Drive Tray
314335803
[F]
n/a
314346801
[F]
Rail/Drive/CIM Power Supply +48V
n/a
n/a
315716001
Power Supply, AC/DC, 148W, T10000C, Drive Tray
n/a
n/a
315716002
[F]
Power Supply, AC/DC, 148W, T10000C/D, Drive Tray
315716001
n/a
419641701
[F]
AC Power Distribution Unit (PDU), 1PH
313769604
[F]
n/a
419641801
[F]
AC Power Distribution Unit (PDU), WYE
313897904
[F]
n/a
419641901
[F]
AC Power Distribution Unit (PDU), Delta
313897804
[F]
n/a
419642201
[F] Buy
N+1 Power Assembly, AC
313886902
[F]
n/a
7044359
[F]
Card Cage Power Supply
314343901
[F]
n/a
7044360
[F]
Rail/Drive/CIM Power Supply
314346801
[F]
n/a
7056325
[F]
AC Power Distribution Unit (PDU), 1PH
419641701
[F]
+
n/a
7056347
[F]
AC Power Distribution Unit (PDU), Delta
419641901
[F]
+
n/a
7056634
[F]
PDU Assembly, AC, WYE
419641801
[F]
+
n/a
7310432
[F]
Rail/Drive/CIM Power Supply
n/a
n/a
7325580 [F]
PDU Assembly, AC 1PH
n/a
n/a
7325585 [F]
PDU Assembly AC WYE
n/a
n/a
7325590 [F]
PDU Assembly AC Delta
n/a
n/a
10124138 23
[S]
AC Transfer Switch, 220VAC
n/a
n/a
313805701
[S]
Accessory Rack AC Power Strip
n/a
n/a
419803501
[S]
Accessory Rack AC Power Strip
313805701
[S]
23 Supports 3COM Switch Only (not needed with PUE).
Robot/Rail
Option #
Manufacturing
Description
Previous
n/a
10307502
[F]
Coupling, Sleeve, Gear Grip
n/a
n/a
10307503
[F]
Coupling, HUB, Gear Grip
n/a
n/a
313885501
Rail Power Connector Assembly, Copper to Copper
n/a
n/a
313885702
Rack, Track (Geared track segment)
n/a
n/a
313920904
Rail Extrusion Clamp Assembly, Wall
n/a
n/a
313938103
Rail Extrusion Clamp, Floor
n/a
n/a
313987201
Track Stop Assembly, Rack
n/a
n/a
313992101
Rail Extrusion Connector, Wall, Lower
n/a
n/a
313992201
Rail Extrusion Connector, Wall, Upper
n/a
n/a
418623202
Track Stop Assembly, Dual Lock, Intermediate Track Stops
n/a
n/a
419633802
[F]
End Stop, Robot, Carbon Black
n/a
n/a
419633803
[F]
End Stop, Robot, Carbon Black
419633802
[F]
n/a
419633804
Robot, End Stop Charcoal Grey
419633803
[F]
+
n/a
419640401
Copper and Rail Hardware Kit, 1EF
n/a
Rack, Track (Geared track segment)
313885702
n/a
Safety Clip, Between Copper Rails, Next to Terminator n/a
Track Stop Assembly, Rack
313987201
Rail Extrusion Clamp, Floor
313938103
n/a
419640402
Copper and Rail Hardware Kit, 1EF
419640401
Rack, Track (Geared track segment)
313885702
n/a
n/a
Safety Clip, Between Copper Rails, Next to Terminator n/a
Rail Extrusion Clamp, Floor
313938103
n/a
419640501
Copper and Rail Hardware Kit, 2EF
n/a
Rack, Track (Geared track segment)
313885702
n/a
Safety Clip, Between Copper Rails, Next to Terminator n/a
Track Stop Assembly, Rack
313987201
Rail Extrusion Clamp, Floor
313938103
n/a
419640502
Copper and Rail Hardware Kit, 2EF
419640501
Rack, Track (Geared track segment)
313885702
n/a
n/a
Safety Clip, Between Copper Rails, Next to Terminator n/a
Track Stop Assembly Kit, Rack (17 pcs) n/a
Rail Extrusion Clamp, Floor
313938103
n/a
419640601
Copper and Rail Hardware Kit, 3EF
n/a
Rack, Track (Geared track segment)
313885702
n/a
Safety Clip, Between Copper Rails, Next to Terminator n/a
Track Stop Assembly, Rack
313987201
n/a
Rail Extrusion Clamp, Floor
313938103
n/a
419640602
Copper and Rail Hardware Kit, 3EF
419640601
Rack, Track (Geared track segment)
313885702
n/a
n/a
Safety Clip, Between Copper Rails, Next to Terminator n/a
Track Stop Assembly Kit, Rack (17 pcs) n/a
Rail Extrusion Clamp, Floor
313938103
Rail Extrusion Clamp Assembly, Wall
313920904
n/a
419648501
Copper and Rail Hardware Kit, FF
n/a
Rack, Track (Geared track segment)
313885702
n/a
Safety Clip, Between Copper Rails, Next to Terminator n/a
Track Stop Assembly, Rack
313987201
Rail Extrusion Clamp, Floor
313938103
n/a
419648502
Copper and Rail Hardware Kit, FF
419648501
Rack, Track (Geared track segment)
313885702
n/a
n/a
Safety Clip, Between Copper Rails, Next to Terminator n/a
Track Stop Assembly Kit, Rack (17 pcs) n/a
Rail Extrusion Clamp, Floor
313938103
n/a
419802501
[F]
Terminator Assembly, Rail
n/a
n/a
419810302
Copper and Rail Hardware Kit, 4EF
n/a
Rack, Track (Geared track segment)
313885702
Safety Clip, Between Copper Rails, Next to Terminator n/a
n/a
n/a
Track Stop Assembly Kit, Rack (17 pcs) n/a
Rail Extrusion Clamp, Floor
313938103
Rail Extrusion Clamp Assembly, Wall
313920904
n/a
419810401
Copper and Rail Hardware Kit, 5EF
n/a
Rack, Track (Geared track segment)
313885702
Safety Clip, Between Copper Rails, Next to Terminator n/a
n/a
Track Stop Assembly, Rack
313987201
n/a
Rail Extrusion Clamp, Floor
313938103
Rail Extrusion Clamp Assembly, Wall
313920904
n/a
419810402
Copper and Rail Hardware Kit
419810401
Rack, Track (Geared track segment)
313885702
Safety Clip, Between Copper Rails, Next to Terminator n/a
n/a
n/a
Track Stop Assembly Kit, Rack (17 pcs) n/a
Rail Extrusion Clamp, Floor
313938103
Rail Extrusion Clamp Assembly, Wall
313920904
n/a
419887401
[F]
Terminator Assembly, Rail
419802501
[F]
n/a
419889102
Robot Roller Assembly
n/a
n/a
419889103
Robot Roller Assembly
419889102
n/a
7044368
[F]
(Preferred) Robot Assembly
419642607 [S]
n/a
7058163
[F]
Terminator Assembly, Rail
419887401
[F]
+
Rail Power Connector Assembly, Copper to Copper
313885501
n/a
7075943 [F]
Terminator Assembly, Rail
7058163
[F]
+
Rail Power Connector Assembly, Copper to Copper
313885501
n/a
7313458
[F]
Robot Assembly
7059210
[S]
+
n/a
7322142 [F]
Terminator Assembly, Rail
7075943 [F]
+
Rail Power Connector Assembly, Copper to Copper
313885501
n/a
7323280 [F]
Robot Assembly
n/a
n/a
7325595
[F]
Left Corner Track Assembly, Bottom Rail 1, Rails 2-3, Upper Rail 4, Power [SKU]
n/a
n/a
7325599
[F]
Left Corner Track Assembly, Upper Rail 1, Power [SKU]
n/a
n/a
7331858
[F]
Right Corner Track Assembly, Upper Rail 1, No Power [SKU]
n/a
n/a
7331860
[F]
Left & Right Corner Track, Bottom Rail 4, No Power & Power [SKU]
n/a
n/a
7331862
[F]
Right Corner Track Assembly, Bottom Rail 1, Rails 2-3, Upper Rail 4, No Power [SKU]
n/a
n/a
102299
[S]
Track Stop Assembly Kit, Rack (16 pcs) 314864201
n/a
n/a
313977201
[S]
Extension, Lower Plate, Robot Assembly
n/a
n/a
313977202
[S]
Extension, Lower Plate, Robot Assembly
313977201
[S]
n/a
313992001
[S]
Rail Extrusion Connector, Floor
n/a
n/a
418614901
[S]
Rail Extrusion Clamps, Floor, Kit (17 pcs)
n/a
n/a
419642607 [S]
Robot Assembly
n/a
n/a
7059210
[S]
Robot Assembly
7044368
[F]
+
419642607 [S]
Switch/Hub
Option #
Manufacturing
Description
Previous
n/a
10800489
16-Port Ethernet Switch, RJ-45, 10B-T/100B-TX
n/a
n/a
7025036
[F]
32-Port Ethernet Switch Assembly, PUE
n/a
n/a
7056351
[F]
32-Port Ethernet Switch Assembly, PUE
7025036
[F]
n/a
7075107 [F]
32-Port Ethernet Switch Assembly, PUE
n/a
n/a
7325543 [F]
32-Port Ethernet Switch Assembly, PUE2
n/a
n/a
7358381 [F]
32-Port Ethernet Switch Assembly, PUE2
n/a
n/a
260800489
[S]
16-Port Ethernet Switch, RJ-45, 10B-T/100B-TX
10800489
Tape Drive (OEM)
Option #
Manufacturing
Description
Previous
n/a
313784509
[F]
PWA, HBD Card, Drive Tray
n/a
n/a
313928701
Target Bezel IBM LTO1, LTO2, LTO3, LTO4, LTO5
n/a
n/a
313928702
[F]
Target Bezel IBM LTO1, LTO2, LTO3, LTO4, LTO5, LTO6
313928701
n/a
313935501
[F]
Target Bezel HP LTO1, LTO2, LTO3, LTO4, LTO5
n/a
n/a
313935502
[F]
Target Bezel HP LTO1, LTO2, LTO3, LTO4, LTO5, LTO6
313935501
[F]
n/a
314828506
HP LTO3 2Gb FC Tape Drive
n/a
n/a
314828507
HP LTO3 2Gb FC Tape Drive
314828506
n/a
418607604 [F]
IBM LTO4/LTO5 Belisarius Encryption Adapter Card
n/a
n/a
418608801
[F]
Drive Tray Latch
n/a
n/a
418622501
[F]
IBM LTO5 8Gb FC Tape Drive
n/a
n/a
419820101
Drive Tray Assembly, SDLT/LTO
n/a
n/a
419820103
Drive Tray Assembly, SDLT/LTO
n/a
n/a
419834102
[F]
DLTS4 4Gb FC Tape Drive
n/a
n/a
419834103
[F]
DLTS4 4Gb FC Tape Drive
419834103
[F]
+
n/a
419834606
IBM LTO3,4Gb FC,AS400 Tape Drive
n/a
n/a
419834607
IBM LTO3,4Gb FC,AS400 Tape Drive
419834606
n/a
419854003
IBM LTO3 4GB FC Tape Drive
n/a
n/a
419854004
IBM LTO3 4GB FC Tape Drive
419854003
n/a
419859903
HP LTO3 4Gb FC Tape Drive
n/a
n/a
419859904
HP LTO3 4Gb FC Tape Drive
419859903
n/a
419888007
[F]
IBM LTO4 4Gb FC Tape Drive
n/a
n/a
419888706
[F]
IBM LTO4,FC ISERIES,FRU ASSY
n/a
n/a
419888707
[F]
IBM LTO4 4GB FC, AS400, Tape Drive
419888706
[F]
n/a
419889309
[F]
HP LTO4 4Gb FC Tape Drive
n/a
n/a
7012787
[F]
(Preferred) IBM LTO5 8Gb FC Tape Drive
418622501
[F]
n/a
7013975
[F]
(Preferred) IBM LTO4 4Gb FC Tape Drive
419888007
[F]
n/a
7013976
[F]
(Preferred) IBM LTO4 4GB FC, AS400, Tape Drive
419888707
[F]
+
n/a
7020569
[F]
(Preferred) HP LTO5 8Gb FC Tape Drive
n/a
n/a
7020570
[F]
(Preferred) HP LTO4 4Gb FC Tape Drive
419889309
[F]
n/a
7044239
[F]
(Preferred) IBM LTO5 8Gb FC Tape Drive
n/a
n/a
7046446 [F]
Fan Assembly, Tape Drive
n/a
Fan Assembly, Drive Tray, T10000C
156552701
n/a
7046451
Fan Assembly, Rack Mount
n/a
Bracket Assembly, Fan Rack Mount n/a
n/a
7048065
[F]
IBM LTO6 FC Tape Drive
n/a
n/a
7048529
[F]
HP LTO6 8Gb FC Tape Drive
n/a
n/a
7050435
[F]
HP LTO4 4Gb FC Tape Drive
7020570
[F]
+
n/a
7050441
[F]
HP LTO5 8Gb FC Tape Drive
7020569
[F]
n/a
7051359
[F]
IBM LTO5 8Gb FC Tape Drive
7012787
[F]
+
n/a
7051365
[F]
IBM LTO5 8 Gb FC AS400 Tape Drive
7044239
[F]
n/a
7054583
[F]
PWA, HBD Card, Drive Tray
313784509
[F]
n/a
7057446
[F]
IBM LTO4 4Gb FC Tape Drive
7013975
[F]
+
n/a
7057532
[F]
IBM LTO4 4GB FC, AS400, Tape Drive
7013976
[F]
+
n/a
7058332
Drive Tray Assembly, SDLT/LTO
419820101
n/a
7060451
[F]
IBM LTO6, FC, 8Gb, AS400 Only, Tape Drive
n/a
n/a
7065353 [F]
IBM LTO4/LTO5/LTO6 Belisarius Encryption Adapter Card
418607604 [F]
n/a
7082340 [F]
IBM LTO4/LTO5/LTO6 Belisarius Encryption Adapter Card
7065353 [F]
+
418607604 [F]
n/a
7096630
[F]
LOD Card, Drive Tray
n/a
n/a
7301517 24
[F]
IBM LTO4/LTO5/LTO6/LTO7 Belisarius Encryption Adapter Card
7082340 [F]
+
7065353 [F]
[F]
n/a
7315830 [F]
IBM LTO7 8Gb FC Tape Drive
n/a
n/a
7345989 [F]
IBM LTO8, 8Gb FC Tape Drive
n/a
n/a
7347569 [F]
LOD Card, Drive Tray
n/a
n/a
7354271 [F]
LKM Card
n/a
n/a
313953807
[S]
HP LTO2 2Gb FC Tape Drive
n/a
n/a
313960902
[S]
Target Bezel SDLT320, SDLT600, DLT-S4
n/a
n/a
313960903
[S]
Target Bezel SDLT320, SDLT600, DLT-S4
313960902
[S]
n/a
419685002
[S]
HP LTO2 2Gb FC Tape Drive
n/a
n/a
419685003
[S]
HP LTO2 2Gb FC Tape Drive
419685002
[S]
n/a
419685203
[S]
IBM LTO2 2Gb FC Tape Drive
n/a
n/a
419685204
[S]
IBM LTO2 2Gb FC Tape Drive
419685203
[S]
n/a
419832802
[S]
SDLT600 2Gb FC Tape Drive
n/a
n/a
419832803
[S]
SDLT600 2Gb FC Tape Drive
419832802
[S]
n/a
419834503
[S]
IBM LTO2 2Gb FC AS400 Tape Drive
n/a
n/a
419834504
[S]
IBM LTO2 2Gb FC AS400 Tape Drive
419834503
[S]
24 Firmware 4.20.20.40 is required for this card to work with LTO7.
Tape Drive (STK)
Option #
Manufacturing
Description
Previous
n/a
310335402 [F]
T9840B Drive, FC, 2GB
n/a
n/a
312844704 [F]
T9840B Drive, SCSI
n/a
n/a
312844804 [F]
T9840B Drive, ESCON
n/a
n/a
313855401
Drive Tray Assembly, 9940B
n/a
n/a
313922403
[F]
Target Bezel T9x40 Drive
n/a
n/a
314404903
[F]
(Preferred) T9840C FC Tape Drive
n/a
n/a
314410703
[F]
(Preferred) T9840C ESCON Tape Drive
n/a
n/a
314415502 [F]
T9840B Drive, FICON
n/a
n/a
314421902
[F]
T9840C FICON Tape Drive
n/a
n/a
314453001
Drive Tray Assembly, 9840A/B
n/a
n/a
314457301
Target Bezel T10000 Drive
n/a
n/a
315428101
Drive Tray Assembly, 9840C/D
n/a
n/a
315429901
[F]
T9840C ESCON Tape Drive
n/a
n/a
315430001
[F]
T9840C FICON Tape Drive
n/a
n/a
315432901
T9840C FC Tape Drive
n/a
n/a
315434001
[F]
T9840C FICON Tape Drive
314421902
[F]
n/a
315447403
[F]
T10000A 2Gb Tape Drive, Non-Encrypted
n/a
n/a
315448501
Drive Tray Assembly, T10000 A and B
n/a
n/a
315449102
T9940B ESCON Tape Drive
n/a
n/a
315452103
T9940B FICON Tape Drive
315452102
[S]
n/a
n/a
315462801
[F]
T10000A 4Gb Tape Drive
n/a
n/a
315462802
[F]
T10000A 4Gb Tape Drive
315462801
[F]
n/a
315464701
[F]
(Preferred) T10000A 2Gb Tape Drive
n/a
n/a
315479501
[F]
T9840D FC/FI Tape Drive
n/a
n/a
315479601
[F]
(Preferred) T9840D ESCON Tape Drive
n/a
n/a
315488302
25
[F]
(Preferred) T10000B 4Gb Tape Drive
n/a
n/a
7016081
[F]
(Preferred) T10000A 2Gb Tape Drive, Non-Encrypted
315447403
[F]
n/a
7016088
[F]
T10000A 4Gb Tape Drive
315462802
[F]
+
n/a
7020994
[F]
(Preferred) T9840D FC/FI Tape Drive
315479501
[F]
n/a
7020997
[F]
T9840D ESCON Tape Drive
315479601
[F]
n/a
7020999
27
28
[F]
T10000B 4Gb Tape Drive (Korea Only)
315488302
26
[F]
n/a
7021001
[F]
T10000C 4Gb Tape Drive
n/a
n/a
7039275
[F]
(Preferred) T10000C 4Gb Tape Drive
7021001
[F]
n/a
7042136
[F]
T10000D 16Gb FC Tape Drive
n/a
n/a
7054185
[F]
T10000C 4Gb Tape Drive
7039275
[F]
+
n/a
7054688
[F]
T9840D FC/FI Tape Drive
7020994
[F]
+
n/a
7058174
Drive Tray Assembly, 9840C/D
315428101
n/a
314457302
[S]
Target Bezel T10000 Drive
314457301
n/a
315449003 [S]
T9940B DRIVE,FIBRE CHANNEL
n/a
n/a
315449103
[S]
T9940B ESCON Tape Drive
315449102
n/a
315452102
[S]
T9940B FICON Tape Drive
n/a
25 Only order this part in countries other than Korea. No other T10000B FRUs are stocked in the rest of the world.26 Only order this part in countries other than Korea. No other T10000B FRUs are stocked in the rest of the world.27 Required for use in Korea (KCC Marking / Agency Label)28 Only use this part for replacements in Korea.
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
314869801
Column Label Set
