Oracle Server X5-2L - System Breakdown

Oracle Server X5-2L Home Page
Service Views
Front
Top
Rear
Components
Full Components List
Batteries
CPU Module
Cables
Chassis
Communication
Disk Backplane
Disks
Ethernet
Fan
Fibre Channel
I/O
Memory
Power
Rack
Removable Media
SCSI
System Board
System Breakdown
Exploded View
Wiring Diagram

Exploded View

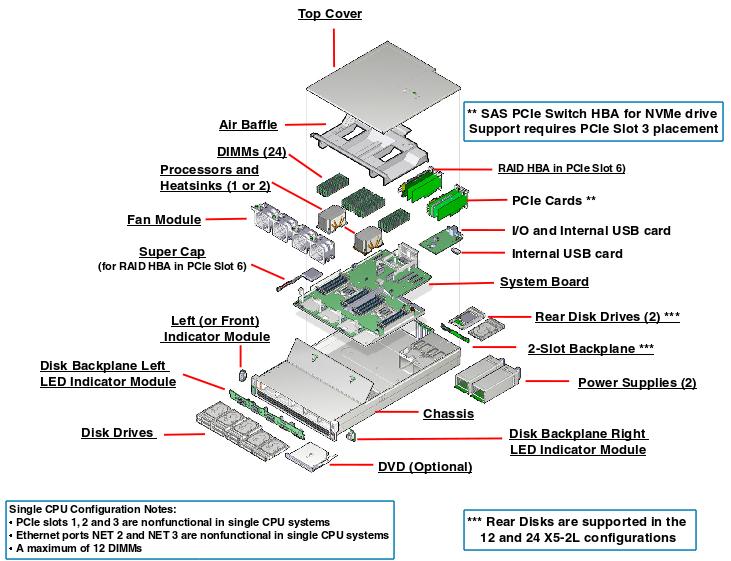

Oracle Server X5-2L Exploded View
                    Top Cover Air Baffle DIMMs (24) Fan Module Processors and Heatsinks (1 or 2) Super Cap (for RAID HBA in PCIe slot 4) Left (or Front) Indicator Module Disk Backplane Left LED Indicator Module Disk Drives DVD (Optional) Disk Backplane Right LED Indicator Module Chassis Power Supplies (2) 2-Slot Backplane ** Rear Disk Drives (2) *** System Board RAID HBA in PCIe Slot 6
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
- 240-4674 PCI Express Filler Panel
NS 150-4065 Interlock Switch Magnet
NS 541-2629 2.5" Disk Drive Filler Panel
NS 541-3066 3.5" Disk Filler Panel
NS 7012293 Fan Door for 12-Slot 2.5" Disk Configuration
NS
  • 7015225
  • Top Cover Door Extender
NS 7014216 Rear Disk Filler Panel
