Oracle Database Appliance X4-2 - Service Views

Oracle Database Appliance X4-2 Home Page
Service Views
Front
Top
Rear
Components
Full Components List
Array Controller
Batteries
CPU Module
Cables
Disk Backplane
Disks
Ethernet
Fan
I/O
Memory
Power
Rack
SCSI
System Board
System Breakdown
Exploded View
Rear View
(Click on underlined text to view components)
Zoom In

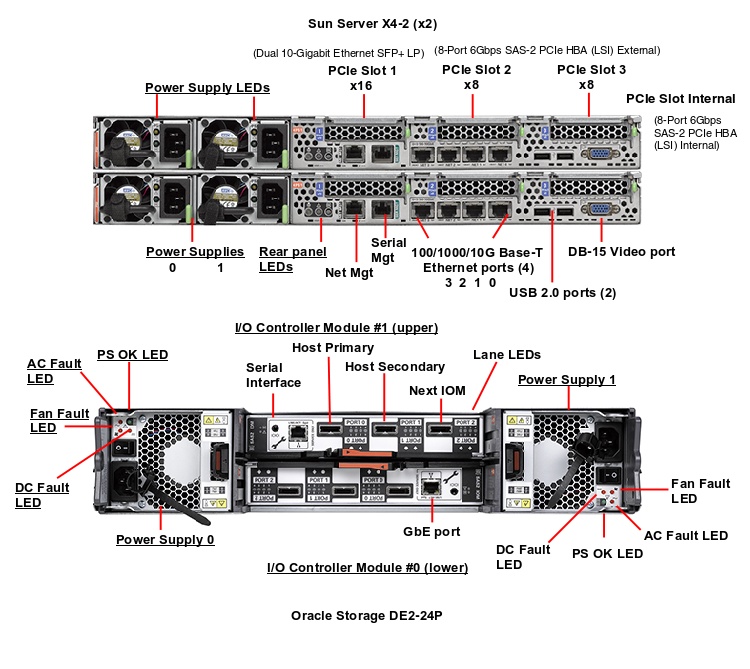

Oracle Database Appliance X4-2 Rear Callout Power Supply LEDs Power Supplies Rear Panel LEDs PS OK LED I/O Controller Module #1 Power Supply 1 I/O Controller Module #0 Power Supply 0 DC Fault LED Fan Fault LED AC Fault LED PS OK LED
