Netra CP3270

Netra CP3270 Codename: Hamilton

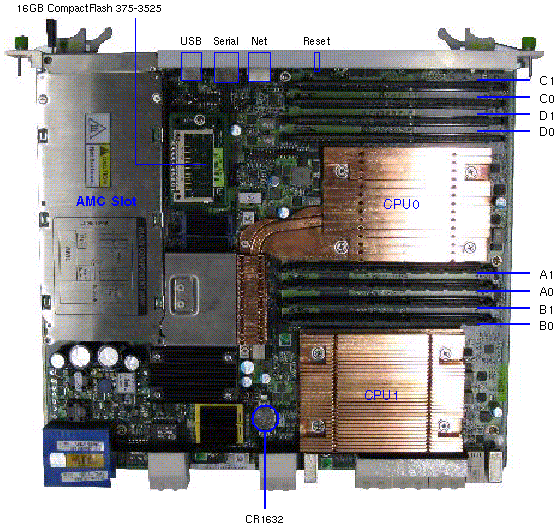

Serial Number Location Located on the board - board needs to be removed to get access to the serial number.


371-4725 371-4726 375-3650 375-3651 375-3652
4GB DDR3-1066
4GB DDR3-1333
2-Rank/2Gbit SDRAM
Very Low Profile DIMM		 8GB DDR3-xxxx
no avl datasheets
Very Low Profile DIMM		 0MB FRU
2x 1.73GHz 4-Core		 4x4GB Memory
2x 1.73GHz 4-Core
CP3270-1730H-16GB [S]		 8x4GB Memory
2x 1.73GHz 4-Core
CP3270-1730H-32GB [S]



Table Legend
[C] = Customer Replaceable Unit (CRU)
[S] = Supported but can no longer be ordered

CP3270 Boards

PART # DESCRIPTION
594-6374
371-4725 [C] 		16GB Memory Option XCP3000RAM16GB3KIT [S]
4GB Very Low Profile DDR3 DIMM
594-4678
375-3525 [C] 		CompactFlash Option XCP3000-CF-16GB-Z [S]
16GB CompactFlash
594-5117
375-3543 [C]
373-0224 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD-Z
Disk Drive Rear Transition Card
Disk Drive Rear Transition Card
594-4758
375-3541-02
375-3543 [C]
540-7152 [C]
541-0605 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S]
Disk Drive Rear Transition Card with One Drive
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
Disk Drive Filler Panel
594-4758
375-3541-03
375-3543 [C]
540-7851 [C]
350-1286
540-7152 [C]
540-7847 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S]
Disk Drive Rear Transition Card with One Drive
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
Ground Insulator Kit (installed on 540-7152)
146GB 10000 RPM SAS Disk Drive Assy/FRU
Disk Drive Filler Panel
594-4759
375-3542-02
375-3543 [C]
540-7152 [C] 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S]
Disk Drive Rear Transition Card with Two Drives
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
594-4759
375-3542-03
375-3543 [C]
540-7851 [C]
380-1286
540-7152 [C] 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S]
Disk Drive Rear Transition Card with Two Drives
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
Ground Insulator Kit (installed on 540-7152)
146GB 10000 RPM SAS Disk Drive Assy

CP3270 Configured Board Options

PART # DESCRIPTION
594-6370
375-3651
351-0007
371-4725 [C]
375-3650 [C]
371-4762 [C]
 CP3270 Option CP3270-1730H-16GB [S]
2x 1.73GHz 4-Core 16GB CP3270 System Board
DIMM Filler
4GB Very Low Profile DDR3 DIMM
2x 1.73GHz 4-Core CP3270 System Board
1.73GHz 4-Core Intel LC5518
594-6371
375-3652
371-4725 [C]
375-3650 [C]
371-4762 [C]
 CP3270 Option CP3270-1730H-32GB [S]
2x 1.73GHz 4-Core 32GB CP3270 System Board
4GB Very Low Profile DDR3 DIMM
2x 1.73GHz 4-Core CP3270 System Board
1.73GHz 4-Core Intel LC5518
594-6764
542-0316 [C]
350-1286
540-7867
542-0384 		Option XCP32X0-RTM-300GBD [S]
300GB SAS Disk Assembly
Nemo Bracket Ground Insulator Kit
300GB SAS NEBS Disk Assembly
300GB SAS NEBS Disk Assembly (E0008821)
594-6535
375-3669
375-3667 [C]
542-0316 [C]
350-1286
540-7867
542-0384		 Option XCP32X0-RTMHD2300D [S]
300GB Disk + x4 PCIe SAS Controller Rear Transition Module (RTM)
x4 PCIe SAS2 Controller Rear Transition Module (RTM)
300GB SAS Disk Assembly
Nemo Bracket Ground Insulator Kit
300GB SAS NEBS Disk Assembly
300GB SAS NEBS Disk Assembly (E0008821)
Netra CP 3270 Board Documentation

Notes

  1. The minimum Solaris operating system is Solaris 10 10/09.
  2. Install memory in slots A0, B0, C0, and D0, then A1, B1, C1, and D1.
  3. Battery 150-2850 is a BR1632 or CR1632.
  4. The CP3270 is shipped with a CR1632 battery.
  5. The CP3270 bill of material does not include a battery.
