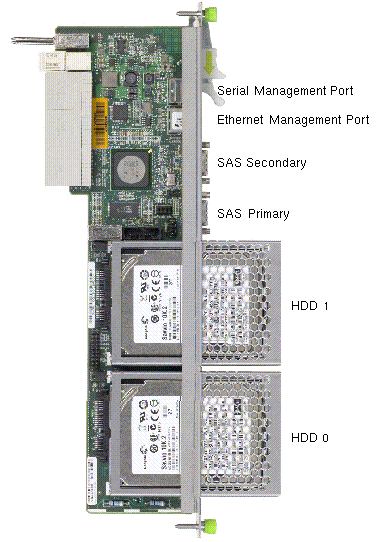

Rear Transition Module HDD

Telco:

Netra CP3220, CP3250, CP3260

Table Legend

[C] = Customer Replaceable Unit (CRU) [S] = Supported, but can no longer be ordered with this system

Disk Drive Rear Transition Card Options

PART #	DESCRIPTION
594-5117 375-3543 [C] 373-0224	Disk Drive Rear Transition Card Option XCP32X0-RTM-HD-Z Disk Drive Rear Transition Card Disk Drive Rear Transition Card
594-4758 375-3541-02 375-3543 [C] 540-7152 [C] 541-0605	Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S] Disk Drive Rear Transition Card with One Drive Disk Drive Rear Transition Card 146GB 10000 RPM SAS Disk Drive Assy/FRU Disk Drive Filler Panel
594-4758 [C] 375-3541-03 375-3543 [C] 540-7851 [C] 350-1286 540-7152 540-7847	Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S] Disk Drive Rear Transition Card with One Drive Disk Drive Rear Transition Card 146GB 10000 RPM SAS Disk Drive Assy/FRU Ground Insulator Kit (installed on 540-7152) 146GB 10000 RPM SAS Disk Drive Assy/FRU Disk Drive Filler Panel
594-4759 375-3542-02 375-3543 [C] 540-7152 [C]	Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S] Disk Drive Rear Transition Card with Two Drives Disk Drive Rear Transition Card 146GB 10000 RPM SAS Disk Drive Assy/FRU
594-4759 375-3542-03 375-3543 [C] 540-7851 [C] 350-1286 540-7152 [C]	Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S] Disk Drive Rear Transition Card with Two Drives Disk Drive Rear Transition Card 146GB 10000 RPM SAS Disk Drive Assy/FRU Ground Insulator Kit (installed on 540-7152) 146GB 10000 RPM SAS Disk Drive Assy
594-5838 540-7847	XCP32X0-RTM-HDCORZ [S] Disk Drive Filler Panel
