Netra CP3260

Netra CP3260 Codename: Monza

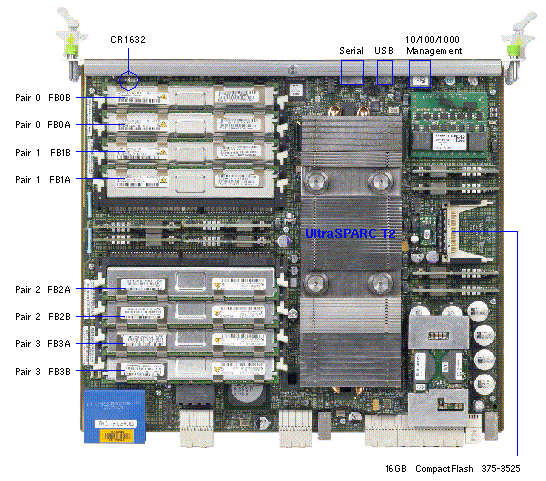

Serial Number Location Located on the board - board needs to be removed to get access to the serial number.


371-3025 371-3026 371-4360 371-4361 371-5025 371-5026
2GB DIMM / 16GB Option
XCP3260-MEM-16GB-Z		 1GB DIMM
No Option		 2BG DIMM
No Option		 4GB DIMM
XCP3260-MEM-32GB-Z		 2GB 1.8V DIMM 4GB 1.8V DIMM
501-7836 501-7837
0MB FRU
FAB 270-7752-03
1.17GHz 8-Core
UltraSPARC T2		 0MB FRU
FAB 270-7752-03
1.17GHz 6-Core
UltraSPARC T2
511-1366 511-1367
0MB FRU
FAB 270-7752-06
1.17GHz 8-Core
UltraSPARC T2		 0MB FRU
FAB 270-7752-06
1.17GHz 6-Core
UltraSPARC T2
7049927
0MB FRU
FAB 270-7752-06
1.17GHz 6-Core
UltraSPARC T2
501-7838 501-7839 501-7909 501-7841
16GB   1.17GHz 8-Core
Rev 52:
System Board 501-7836
8 × 2GB DIMM 371-3025
Rev 53:
System Board 511-1366
8 × 2GB DIMM 371-4360
CP3260C-8C-16GB-Z		 8GB   1.17GHz 6-Core
Rev 52:
System Board 501-7837
8 × 1GB DIMM 371-3026
Rev 53:
System Board 511-1367
8 × 1GB DIMM 371-3026
CP3260C-6C-8GB-Z		 8GB   1.17GHz 8-Core
Rev 52:
System Board 501-7836
8 × 1GB DIMM 371-3026
Rev 53:
System Board 511-1366
8 × 1GB DIMM 371-3026
CP3260C-8C-8GB-Z		 32GB   1.17GHz 8-Core
System Board 511-1366
8 × 1GB DIMM 371-4361
CP3260C-8C-32GB-Z
7049928
8GB 1.17GHz 6-Core
System Board 7049927
8 × 1GB DIMM 371-3026
CP3260C-6C-8GB-Z



Table Legend
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system

CP3260 Boards
(UltraSPARC T2 CPU)

Codename: Monza

PART # DESCRIPTION
Memory
371-3026 [C] 1GB 2-Rank 1.8V 512Mbit SDRAM FBDIMM
371-4360 [C] 2GB 2-Rank 1.55V 1Gbit SDRAM FBDIMM
371-5025 [C] 2GB 2-Rank 1.8V FBDIMM
371-5026 [C] 4GB 2-Rank 1.8V FBDIMM
594-4954
371-3025 [C]		 16GB Memory Option XCP3260-MEM-16GB-Z [S]
2GB 2-Rank 1.8V 1Gbit SDRAM FBDIMM
594-4955
371-4361 [C] 		32GB Memory Option XCP3260-MEM-32GB-Z [S]
4GB 2-Rank 1.55V 1Gbit SDRAM FBDIMM
594-4678
375-3525 [C]
 Compact Flash Option XCP3000-CF-16GB-Z [S]
16GB CompactFlash
System Boards based on FAB 270-7752-03
594-4673
501-7838
371-3025 [C]
501-7836 [C]
501-7752
 Option CP3260C-8C-16GB-Z [S]
16GB 1× 1.17GHz, 8-Core System Board
2GB FBDIMM
1.17GHz 8-Core 0GB System Board
0GHz/0GB System Board
594-4674
501-7839
371-3026 [C]
501-7837 [C]
501-7752
 Option CP3260C-6C-8GB-Z [S]
8GB 1× 1.17GHz, 6-Core System Board
1GB FBDIMM
1.17GHz 6-Core 0GB System Board
0GHz/0GB System Board
594-4736
501-7909
371-3026 [C]
501-7836 [C]
501-7752
 Option CP3260C-8C-8GB-Z [S]
8GB 1× 1.17GHz, 8-Core System Board
1GB FBDIMM
1.17GHz 8-Core 0GB System Board
0GHz/0GB System Board
System Boards based on FAB 270-7752-06
594-4673
501-7838
371-4360 [C]
511-1366 [C]
511-1369 		Option CP3260C-8C-16GB-Z [S] 1
16GB 1× 1.17GHz, 8-Core System Board 1
2GB FBDIMM
1.17GHz 8-Core 0GB BGA CP3260 System Board
0GHz/0GB CP3260 BGA System Board
594-4673
7018605
371-5025 [C]
511-1366 [C]
511-1369 		Option CP3260C-8C-16GB-Z [S] (E0009346 March 2012)
16GB 1× 1.17GHz, 8-Core System Board
2GB 2-Rank 1.8V FBDIMM
1.17GHz 8-Core 0GB BGA CP3260 System Board
0GHz/0GB CP3260 BGA System Board
594-4674
501-7839
371-3026 [C]
511-1367 [C]
511-1369 		Option CP3260C-6C-8GB-Z [S] 2
8GB 1× 1.17GHz, 6-Core System Board 2
1GB FBDIMM
1.17GHz 6-Core 0GB BGA CP3260 System Board
0GHz/0GB CP3260 BGA System Board
594-4736
501-7909
371-3026 [C]
511-1366 [C]
511-1369 		Option CP3260C-8C-8GB-Z [S] 3
1.17GHz 8-Core 8GB CP3260 System Board 3
1GB FBDIMM
1.17GHz 8-Core 0GB BGA CP3260 System Board
0GHz/0GB CP3260 BGA System Board
594-4675
501-7841
371-4361 [C]
511-1366 [C]
511-1369 		Option CP3260C-8C-32GB-Z [S]
1.17GHz 8-Core 8GB CP3260 System Board
4GB FBDIMM
1.17GHz 8-Core 0GB BGA CP3260 System Board
0GHz/0GB CP3260 BGA System Board
594-4675
7018606
371-5026 [C]
511-1366 [C]
511-1369 		Option CP3260C-8C-32GB-Z [S] (E0009346 March 2012)
1.17GHz 8-Core 8GB CP3260 System Board
4GB 2-Rank 1.8V FBDIMM
1.17GHz 8-Core 0GB BGA CP3260 System Board
0GHz/0GB CP3260 BGA System Board

7049928
371-3026 [C]
7049927 [C]
7049906 		Option CP3260C-6C-8GB-Z [S]
1.17GHz 6-Core 8GB CP3260 System Board
1GB 1.8V FBDIMM
1.17GHz 6-Core 0GB CP3260 System Board
0GHz/0GB CP3260 System Board
Netra CP3260 Board Documentation
1 This BOM shows 594-4673-01 Rev 52 and 501-7838-01 Rev 53 changes. (WO_40296)
2 This BOM shows 594-4674-01 Rev 52 and 501-7839-01 Rev 53 changes. (WO_40296)
3 This BOM shows 594-4736-01 Rev 53 and 501-7909-01 Rev 53 changes. (WO_40296)

CP3260 Disk Drive Rear Transition Card Options

PART # DESCRIPTION
594-5117
375-3543 [C]
373-0224		 Disk Drive Rear Transition Card Option XCP32X0-RTM-HD-Z
Disk Drive Rear Transition Card
Disk Drive Rear Transition Card
594-4758
375-3541-02
375-3543 [C]
540-7152 [C]
541-0605 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S]
Disk Drive Rear Transition Card with One Drive
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
Disk Drive Filler Panel
594-4758 [C]
375-3541-03
375-3543 [C]
540-7851 [C]
350-1286
540-7152
540-7847 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S]
Disk Drive Rear Transition Card with One Drive
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
Ground Insulator Kit (installed on 540-7152)
146GB 10000 RPM SAS Disk Drive Assy/FRU
Disk Drive Filler Panel
594-4759
375-3542-02
375-3543 [C]
540-7152 [C] 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S]
Disk Drive Rear Transition Card with Two Drives
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
594-4759
375-3542-03
375-3543 [C]
540-7851 [C]
350-1286
540-7152 [C] 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S]
Disk Drive Rear Transition Card with Two Drives
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
Ground Insulator Kit (installed on 540-7152)
146GB 10000 RPM SAS Disk Drive Assy
594-5838
540-7847		 XCP32X0-RTM-HDCORZ [S]
Disk Drive Filler Panel
594-6764
542-0316 [C]
350-1286
540-7867
542-0384 		Option XCP32X0-RTM-300GBD [S]
300GB SAS Disk Assembly
Nemo Bracket Ground Insulator Kit
300GB SAS NEBS Disk Assembly
300GB SAS NEBS Disk Assembly (E0008821)
594-6535
375-3669
375-3667 [C]
542-0316 [C]
350-1286
540-7867
542-0384		 Option XCP32X0-RTMHD2300D [S]
300GB Disk + x4 PCIe SAS Controller Rear Transition Module (RTM)
x4 PCIe SAS2 Controller Rear Transition Module (RTM)
300GB SAS Disk Assembly
Nemo Bracket Ground Insulator Kit
300GB SAS NEBS Disk Assembly
300GB SAS NEBS Disk Assembly (E0008821)

Notes

  1. The minimum operating system is Solaris 10 8/07.
  2. Solaris 11 11/11 through Solaris 11.3 are supported.
  3. Eight DIMMs are required. Mixing memory sizes is not supported.
  4. Memory voltage is 1.8V on boards with R7711 installed.
  5. Removal of R7711 in June 2008 allows the I2C bus to change memory voltage.
  6. R7711 is not installed on 501-7752-08. (WO_38889)

Battery Notes

  1. Use of CR1632 coin cell battery 150-2850 is optional.
  2. 501-7752-07 was released in October 2007 without a battery installed.
  3. Battery 150-2850 was added to 501-7752-15 in September 2009. (WO_41223)
  4. 511-1369-01 was released in December 2008 without a battery installed.
  5. Battery 150-2850 was added to 511-1369-03 in September 2009. (WO_41223)

Patch Information

  1. Patch Readmes and Downloads
  2. Boot PROM and LOM Revisions

References

  1. Sun Netra CP3260 ATCA Blade Server Documentation.
