Netra CP3250

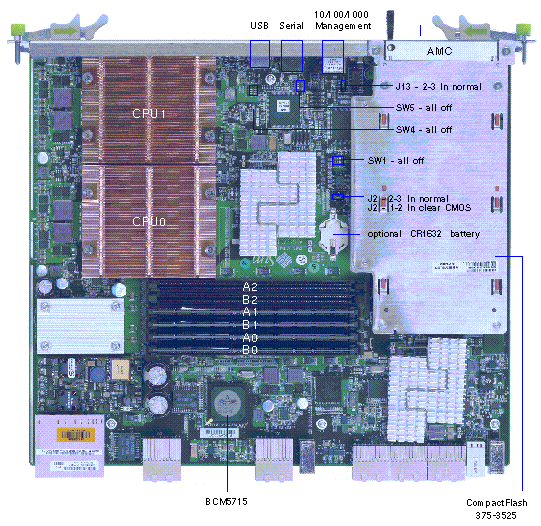

Netra CP3250 Codename: Kimi

Serial Number Location Located on the board - board needs to be removed to get access to the serial number.


371-3031 371-3032 375-3597 375-3662
2GB DIMM
No Option		 4GB DIMM
XCP3200-RAM-8GBK		 0MB FRU R0D FRU
2.13GHz 4-Core
2× Xeon L5408		 0MB FRU R0E FRU
2.13GHz 4-Core
2× Xeon L5408
511-1158 511-1159 511-1160
8GB 2.13GHz 4-Core
4× 2GB DIMM 371-3031
2× Xeon L5408
CP3250-2130H-8GB		 16GB 2.13GHz 4-Core
4× 4GB DIMM 371-3032
2× Xeon L5408
CP3250-2130H-16GB		 24GB 2.13GHz 4-Core
6× 4GB DIMM 371-3032
2× Xeon L5408
CP3250-2130H-24GB



Table Legend
[C] = Customer Replaceable Unit (CRU)
[S] = Supported but can no longer be ordered

CP3250 Boards
(Intel Xeon L5408-LV ATCA)

PART # DESCRIPTION
371-3031 [C] 2GB Very Low Profile DDR2 DIMM
594-4965
371-3032 [C] 		16GB Memory Option CP3220-MEM-16GB-Z
4GB Very Low Profile DDR2 DIMM
594-4678
375-3525 [C] 		CompactFlash Option XCP3000-CF-16GB-Z [S]
16GB CompactFlash

CP3250 Configured Board Options

PART # DESCRIPTION
594-5573
511-1158
371-3031 [C]
375-3597 [C]
375-3662 [C]
371-3953 [C]
373-0396 		CP3250 Option CP3250-2130H-8GB [S]
2.13GHz 4-Core 8GB CP3250 System Board
2GB Very Low Profile DDR2 DIMM
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core Intel L5408
0GHz/0GB CP3250 System Board
594-5574
511-1159
371-3032 [C]
375-3597 [C]
375-3662 [C]
371-3953 [C]
373-0396 		CP3250 Option CP3250-2130H-16GB [S]
2.13GHz 4-Core 16GB CP3250 System Board
4GB Very Low Profile DDR2 DIMM
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core Intel L5408
0GHz/0GB CP3250 System Board
594-5575
511-1160
371-3032 [C]
375-3597 [C]
375-3662 [C]
371-3953 [C]
373-0396 		CP3250 Option CP3250-2130H-24GB [S]
2.13GHz 4-Core 24GB CP3250 System Board
4GB Very Low Profile DDR2 DIMM
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core Intel L5408
0GHz/0GB CP3250 System Board
Netra CP 3250 Board Documentation

CP3250 Disk Drive Rear Transition Card Options

PART # DESCRIPTION
594-5117
375-3543 [C]
373-0224		 Disk Drive Rear Transition Card Option XCP32X0-RTM-HD-Z
Disk Drive Rear Transition Card
Disk Drive Rear Transition Card
594-4758
375-3541-02
375-3543 [C]
540-7152 [C]
541-0605 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S]
Disk Drive Rear Transition Card with One Drive
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
Disk Drive Filler Panel
594-4758 [C]
375-3541-03
375-3543 [C]
540-7851 [C]
350-1286
540-7152
540-7847 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S]
Disk Drive Rear Transition Card with One Drive
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
Ground Insulator Kit (installed on 540-7152)
146GB 10000 RPM SAS Disk Drive Assy/FRU
Disk Drive Filler Panel
594-4759
375-3542-02
375-3543 [C]
540-7152 [C] 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S]
Disk Drive Rear Transition Card with Two Drives
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
594-4759
375-3542-03
375-3543 [C]
540-7851 [C]
350-1286
540-7152 [C] 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S]
Disk Drive Rear Transition Card with Two Drives
Disk Drive Rear Transition Card
146GB 10000 RPM SAS Disk Drive Assy/FRU
Ground Insulator Kit (installed on 540-7152)
146GB 10000 RPM SAS Disk Drive Assy
594-5838
540-7847		 XCP32X0-RTM-HDCORZ [S]
Disk Drive Filler Panel
594-6764
542-0316 [C]
350-1286
540-7867
542-0384 		Option XCP32X0-RTM-300GBD [S]
300GB SAS Disk Assembly
Nemo Bracket Ground Insulator Kit
300GB SAS NEBS Disk Assembly
300GB SAS NEBS Disk Assembly (E0008821)
594-6535
375-3669
375-3667 [C]
542-0316 [C]
350-1286
540-7867
542-0384		 Option XCP32X0-RTMHD2300D [S]
300GB Disk + x4 PCIe SAS Controller Rear Transition Module (RTM)
x4 PCIe SAS2 Controller Rear Transition Module (RTM)
300GB SAS Disk Assembly
Nemo Bracket Ground Insulator Kit
300GB SAS NEBS Disk Assembly
300GB SAS NEBS Disk Assembly (E0008821)

Notes

  1. The minimum operating system is Solaris 10 5/08.
  2. Install dimms in matched pairs beginning with A0/B0, then A1/B1, and A2/B2.
  3. System Board 375-3662 replaced 375-3597 in July 2009. (WO_41687)

Patch Information

  1. Patch Readmes and Downloads
  2. Boot PROM and LOM Revisions

References
