Sun StorEdge L700 (post July 2006) - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
|
|
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X3831A-Z
[S]
|
530-3627 [F]
|
External SCSI Cable, HD68 to VHDC, 10M |
n/a |
|
X9733A-Z
[S]
|
537-1082 [F]
|
Fibre Channel Optical Cable LC/LC, 5M |
n/a |
|
X9734A-Z
[S]
|
537-1083 [F]
|
Fibre Channel Optical Cable LC/LC, 15M |
n/a |
|
X9736A-Z
[S]
|
537-1084 [F]
|
Fibre Channel Optical Cable LC/LC, 25M |
n/a |
|
X9738A-Z
[S]
|
537-1085 [F]
|
Fibre Channel Optical Cable LC/LC, 50M |
n/a |
|
X9740A-Z
[S]
|
537-1093 [F]
|
Fibre Channel Optical Cable LC/LC, 100M |
n/a |
|
Fibre Channel
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XLIBFCCARD-Z
[S]
|
380-1452 |
Upgrade Card to Convert L180 & L700 from SCSI to Native Fibre |
n/a |
|
SG-XPCIE2FCGBE-Q-Z
[S]
|
371-4017
|
4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic |
n/a |
|
Miscellaneous
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XLIBL700-CAP-Z
[S]
|
594-3244 |
20-Slot Cartridge Access Port (CAP) |
n/a |
|
|
n/a |
|
SG-XLIBL700-DOOR-Z
[S]
|
594-3245 |
L700 Expansion Door |
n/a |
|
- Expansion Door (includes 294 cartridge slots)
|
n/a |
|
SG-XLIBL700PORT-Z
[S]
|
594-3246 |
L700e Pass Thru Port (PTP) |
n/a |
|
- PTP (Connects two L700e Libraries)
|
n/a |
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XLIBL700-2PWR-Z
[S]
|
594-3242 |
L700 Redundant Power Supply |
n/a |
|
- 2nd Power Supply Upgrade Option (includes Power Supply, Tower, & PDU)
|
n/a |
|
Removable Media
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-MEDLTO2-20B
[S]
|
390-0226 |
LTO2 200GB Data Cartridge (Package of 20, Barcoded) |
n/a |
|
SG-MEDLTO3-20B
[S]
|
390-0227 |
LTO3 400GB Barcoded Data Cartridge (Package of 20) |
n/a |
|
SG-MEDLTOCL-10B
[S]
|
390-0228 |
LTO Cleaning Cartridges (Package of 10, Barcoded) |
n/a |
|
SG-XMED9840-20
[S]
|
370-4032 [S]
|
9840 40GB Data Cartridges (Package of 20) |
n/a |
|
SG-XMED9840-STRKIT
[S]
|
380-0316 [S]
|
Kit Includes 100 Cartridges, 5 Cleaning Cartridges, and 100 Barcode Labels |
n/a |
|
SG-XMED9840CL-5
[S]
|
370-4033 [S]
|
9840 Cleaning Cartridge (Package of 5) |
n/a |
|
SG-XMED9940-20
[S]
|
380-0806 [S]
|
9940B 200GB Data Cartridges (Package of 20) |
n/a |
|
SG-XMED9940CL-5
[S]
|
380-0807 [S]
|
9940B Cleaning Cartridge (Package of 5) |
n/a |
|
SG-XMEDCART-1MAG
[S]
|
370-4034 |
5 Cartridge Media Magazine |
n/a |
|
SG-XMEDLTO200GB-10
[S]
|
390-0147 [S]
|
LTO2 200GB Data Cartridge (Package of 10, Non-barcoded) |
n/a |
|
SG-XMEDLTO3-10 2
[S]
|
390-0224 |
LTO3 400GB Non-barcoded Data Cartridge (Package of 10) |
n/a |
|
SG-XMEDLTOUNVCL-10
[S]
|
390-0134 [S]
|
LTO Cleaning Cartridge (Package of 10, Non-barcoded) |
n/a |
|
SG-XMEDSDLT2D-20
[S]
|
390-0163 [S]
|
SDLT 600 300GB Data Cartridges (Package of 20, Non-barcoded) |
n/a |
|
SG-XMEDSDLTCL-10
[S]
|
390-0140 [S]
|
SDLT Cleaning CartridgeSDLT Cleaning Cartridge (Package of 10, Non-barcoded) |
n/a |
|
SG-XTAP9840CFC-D-Z
[S]
|
380-1462 |
9840C 2Gb Fibre Tape Drive |
n/a |
|
SG-XTAP9940BFC-D-Z
[S]
|
380-1463 |
9940B 2Gb Fibre Tape Drive |
n/a |
|
SG-XTAPLTO2FC-D-Z
[S]
|
594-3251 |
LTO2 Fibre Channel Tape Drive |
n/a |
|
|
n/a |
|
SG-XTAPLTO2S-DRV-Z
[S]
|
380-1455 |
L180/L700 LTO2 SCSI Channel Tape Drive |
n/a |
|
SG-XTAPLTO3-F4HZ
[S]
|
380-1530 |
LTO3 FC HP 4Gb/sec Tape Drive |
n/a |
|
SG-XTAPLTO3FC-H-Z
[S]
|
380-1458 |
L180/L700 LTO3 Fibre Channel HP Tape Drive |
n/a |
|
SG-XTAPLTO3FC4I
[S]
|
594-3254 |
LTO3 Fibre Channel IBM Tape Drive |
n/a |
|
- LTO3 FC 400GB IBM Tape Drive
|
n/a |
|
SG-XTAPLTO3S-DRV-Z
[S]
|
380-1457 |
L180/L700 LTO3 SCSI Tape Drive |
n/a |
|
SG-XTAPSDLT320DR-Z
[S]
|
594-3795 |
SDLT320 LVD SCSI Tape Drive |
n/a |
|
- SDLT320 LVD SCSI 160GB Tape Drive (includes 5m 68MD-68 VHDCI LVD SCSI cable and a 500MM 68MD-68MDM cable)
|
n/a |
|
SG-XTAPSDLT6FC-D-Z
[S]
|
380-1461 |
L180/L700 SDLT 600 Fibre Channel Tape Drive |
n/a |
|
SG-XTAPSDLT6S-D-Z
[S]
|
380-1460 |
L180/L700 SDLT 600 LVD SCSI Tape Drive |
n/a |
2 Backward read/write compatible with LTO2; backward read compatible
with LTO1.
NOTE: Mixing SCSI and fibre tape drives in the L700 library is supported; mixing LTO3 HP and LTO3 IBM tape drives in the L700 is also supported.
NOTE: Up to twelve (12) 9840C/9940B or up to twenty (20) SDLT600/LTO2/LTO3 tape drives can be installed in the L700 library.
|
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XPCIE2SCSIU320Z
[S]
|
7050790
|
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter |
375-3357
|
|
SGXPCI1SCSILM320-Z
[S]
|
375-3366
|
PCI/PCI-X Single Ultra320 SCSI Adapter |
n/a |
|
SGXPCI2SCSILM320-Z
[S]
|
7050788
|
PCI/PCI-X Dual Ultra320 SCSI Adapter |
375-3365
4
|
| n/a |
375-3357
|
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter |
n/a |
| n/a |
375-3365
3
|
PCI/PCI-X Dual Ultra320 SCSI Adapter |
n/a |
3 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1.
4 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1.
NOTE: For FRU/CRU status, see host system's Full Components List.
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|

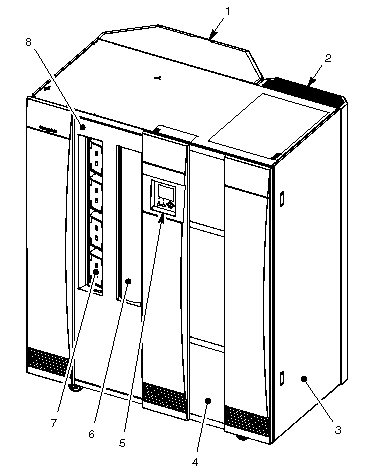

| Code |
Manufacturing Part# |
Description |
| 1 |
n/a |
Expansion Frame |
| 2 |
n/a |
Rear Door |
| 3 |
n/a |
Tape Drive Access Door |
| 4 |
n/a |
Right Front Door |
| 5 |
n/a |
Operator Panel |
| 6 |
n/a |
Optional Cartridge Access Panel (CAP) |
| 7 |
n/a |
Standard Cartridge Access Panel (CAP) |
| 8 |
n/a |
Left Front Door |
| NS |
380-1454 |
Horizon Monitoring Software for the L700 Version 2.0 Key Docs (Option SG-XMONLIBSWL700-Z) |
| NS |
595-5776 |
L700 168 Slot Expansion Kit (228 to 396 slots, option SG-XCTXP180A-L700) |
| NS |
594-3243 [S]
|
L700 Enclosure, Base Configuration, 228 Slots (Option SG-XLIBL700-BS3-Z) |
| NS |
|
- Option includes 228 Cartridge Slots, 20-Slot CAP, 4 Media Magazines, PDU, Power Supply (with cord), Terminator, & 6M SCSI Data Cable
|
| NS |
594-3248 [S]
|
L700/L180 Internal Mount Kit for Sun Switches (Option SG-XLIBRAIL-KIT-Z) |
| NS |
|
- Rail Kit for Internal Rack Mount Space
|
|
