Oracle Exalytics In-Memory Machine T5-8 - Service Views

Oracle Exalytics In-Memory Machine T5-8 Home Page
Service Views
Front
Top
Rear
Components
Full Components List
Batteries
CPU Module
Cables
Chassis
Communication
Disk Backplane
Disks
Ethernet
Fan
Fibre Channel
I/O
Memory
Power
Rack
SCSI
System Board
System Service Processor
System Breakdown
Exploded View
Top View
(Click on underlined text to view components)
Zoom In

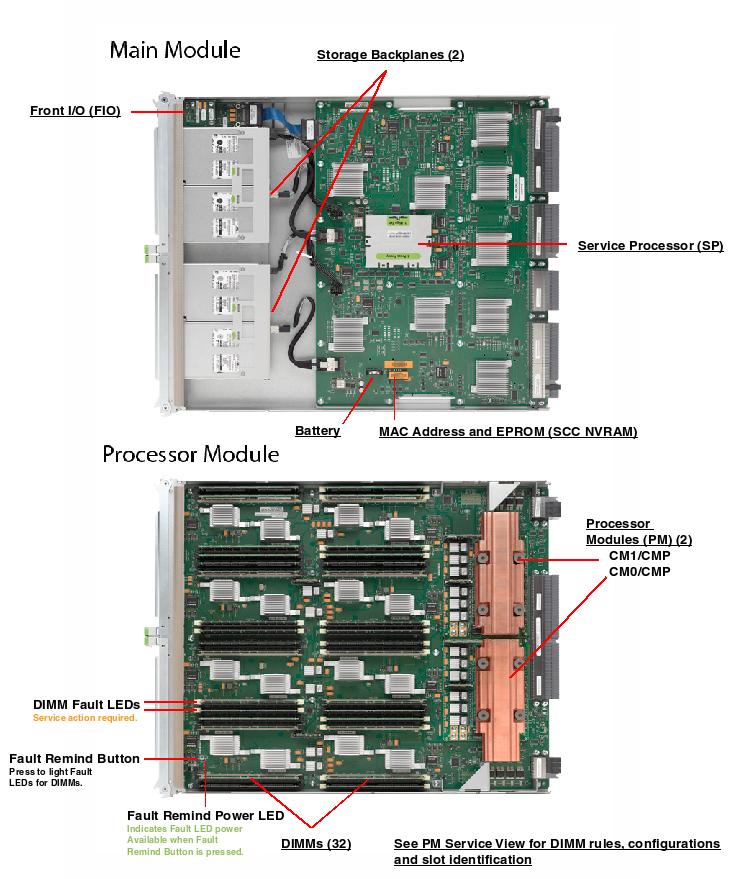

Oracle Exalytics In-Memory Machine T5-8 Top Callout Storage Backplanes (2) Front I/O (FIO) Service Processor (SP) Battery MAC Address and EPROM (SCC NVRAM) DIMMs Processor Modules (PM) (2) PM Service View for DIMM rules, configurations and slot identification
