Acme Packet 3820 - Full Components List

Cables
Disks
Ethernet
Fan
Memory
Miscellaneous
Power

Rack
Switch/Hub
Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

System Notes:
Important information about Acme Packet part number structures.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
n/a	120-0018-60 [C]	DC Power Cord, 3-Wire, Unterminated, 96"	n/a
n/a	CBL-0001-60 [C]	AC Power Cord, NEMA 5-15P to C13, North America, 90"	n/a
n/a	120-0004-00 [C] [S]	Short Wave LC to SC Fibre Cable, 3M	n/a
n/a	120-0004-60 [S]	Short Wave LC to SC Fibre Cable, 3M	120-0004-00 [C] [S]
n/a	120-0009-00 [C] [S]	Long Wave LC to SC Fibre Cable, 3M	n/a
n/a	120-0009-60 [S]	Long Wave LC to SC Fibre Cable, 3M	120-0009-00 [C] [S]

Disks
Option #	Manufacturing Part #	Description	Previous Part #
n/a	MOD-0039-60 [F]	500GB 7200 RPM SATA Disk Drive [MK5061GSYB] [HM500JJ] [ST9500530NS] [ST9500620NS] [HK500JJ] [HTE725050A7E630]	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
n/a	002-0024-50 [F]	High Speed Secure Services Module (SSM2)	n/a
n/a	002-0024-50-04	High Speed Secure Services Module (SSM2)	002-0024-50 [F]
n/a	002-0601-58 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY)	n/a
n/a	002-0601-60 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY)	n/a
n/a	002-0602-50 [C]	Quad 1GbE Copper Network Interface Unit (NIU / PHY)	n/a
n/a	002-0602-60 [C]	Quad 1GbE Copper Network Interface Unit (NIU / PHY)	n/a
n/a	002-0603-58 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/Encryption and QoS	n/a
n/a	002-0603-60 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/Encryption and QoS	n/a
n/a	002-0604-58 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/Encryption	n/a
n/a	002-0606-58 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/QoS	n/a
n/a	002-0611-58 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY)	002-0601-58 [C]
n/a	002-0612-50 [C]	Quad 1GbE Copper Network Interface Unit (NIU / PHY)	002-0602-50 [C]
n/a	002-0613-58 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/Encryption and QoS	002-0603-58 [C]
n/a	002-0614-58 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/Encryption	002-0604-58 [C]
n/a	002-0616-58 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/QoS	002-0606-58 [C]
n/a	002-0617-58-02 [C]	Quad 1GbE SFP Based ETC Network Interface Unit with Cavium/QoS	n/a
n/a	002-0618-58 [C]	Quad 1GbE SFP ETC Network Interface Unit (NIU / PHY) with Cavium/QoS	n/a
n/a	002-0619-58 ² [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) 12 DSP DIMM Slots w/QoS	n/a
n/a	002-0625-58-01 [C]	Dual 10GbE SFP+ Network Interface Unit (NIU / PHY) w/Octeon 2 Security and Transcoding	n/a
n/a	002-0701-58 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/Encryption	n/a
n/a	002-0701-60 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/Encryption	n/a
n/a	7087700 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY)	n/a
n/a	7087702 [C]	Dual 10GbE SFP+ Network Interface Unit (NIU / PHY) w/Octeon 2 Security and Transcoding	002-0625-58-01 [C]
n/a	7087703 [F]	High Speed Secure Services Module (SSM2)	002-0024-50-04 002-0024-50 [F]
n/a	7087705 [C]	Quad 1GbE Copper Network Interface Unit (NIU / PHY)	n/a
n/a	7087706 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/Encryption and QoS	n/a
n/a	7087707 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/Encryption	n/a
n/a	7087708 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) w/QoS	n/a
n/a	7087710 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) with Cavium/QoS	n/a
n/a	7087711 [C]	Quad 1GbE SFP Network Interface Unit (NIU / PHY) 12 DSP DIMM Slots w/QoS	n/a
n/a	7301750 [C]	Quad 1GbE SFP ETC2 NIU/PHY with Cavium/QoS	7087709 [C] [S] 002-0617-58-02 [C]
n/a	7320541 [C]	Dual 10GbE SFP+ Network Interface Unit (NIU / PHY) w/Octeon 2 Security and Transcoding	7087702 [C] 002-0625-58-01 [C]
n/a	ICC-0025-00 [C]	1000Base-SX Transceiver	n/a
n/a	ICC-0025-60 [C]	1000Base-SX Transceiver	ICC-0025-00 [C]
n/a	ICC-0096-00 [C]	1000Base-LX Transceiver	n/a
n/a	ICC-0096-60 [C]	1000Base-LX Transceiver	ICC-0096-00 [C]
n/a	ICC-0180-00 [C]	1000Base-T Copper Transceiver	n/a
n/a	ICC-0180-60 [C]	1000Base-T Copper Transceiver	ICC-0180-00 [C]
n/a	7087709 [C] [S]	Quad 1GbE SFP Based Network Interface Unit with Cavium/QoS	002-0617-58-02 [C]

² Supports 1 - 12 DIMMs

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	110-0100-60 [C]	4-Fan Fan Module	n/a
n/a	110-0109-60-01 [C]	High Speed 4-Fan Fan Module	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
n/a	002-0620-50 [C]	DSP on DIMM Board	n/a
n/a	7087701 [C]	DSP on DIMM Board	002-0620-50 [C]
n/a	MOD-0017-60	2GB DDR2 SODIMM Memory Module, 667MHz	n/a
n/a	MOD-0099-60 ³ [C]	4GB DDR2 Memory Module, 800MHz	n/a

³ MOD-0099-60 is used with 002-0617-58-02, 002-0618-58, 7087709, 7087710, and 7301750.

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
n/a	420-0067-60 [C]	FIPS Tamper Proof Label, DoD UII Label, and Guard Kit	n/a
n/a	AIR-0002-60 [C]	Air Filter	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	110-0101-50 [C]	300 Watt AC Input Power Supply	n/a
n/a	110-0102-50 [C]	300 Watt DC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	420-0036-60 [C]	19" Rack Mount Brackets	n/a
n/a	420-0037-60 [C]	23" Rack Mount Brackets	n/a

Switch/Hub
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7342280 [F]	Acme Packet 3820 Chassis with Main Board	7089195 [F] [S] 800-3500-00 [F] 800-3000-00 [F]
	102-0091-61	1.8GHz Celeron CPU/Memory Board	n/a
	MOD-0017-60	2GB DDR2 SODIMM Memory Module, 667MHz	n/a
	7342276	Main Board Assembly	n/a
n/a	800-3000-00 [F]	Acme Packet 3820 Chassis with Main Board	n/a
	002-0675-50	Main Board Assembly	n/a
	102-0023-61	1.8GHz Celeron CPU/Memory Board	n/a
	MOD-0017-60	2GB DDR2 SODIMM Memory Module, 667MHz	n/a
n/a	800-3500-00 [F]	Acme Packet 3820 Chassis with Main Board	800-3000-00 [F]
	002-0675-50	Main Board Assembly	n/a
	102-0091-61	1.8GHz Celeron CPU/Memory Board	n/a
	MOD-0017-60	2GB DDR2 SODIMM Memory Module, 667MHz	n/a
n/a	7089195 [F] [S]	Acme Packet 3820 Chassis with Main Board	800-3500-00 [F] 800-3000-00 [F]
	102-0091-61	1.8GHz Celeron CPU/Memory Board	n/a
	MOD-0017-60	2GB DDR2 SODIMM Memory Module, 667MHz	n/a
	7087713	Main Board Assembly	n/a
	7308513	Main Board Assembly	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Acme Packet 3820 - Full Components List

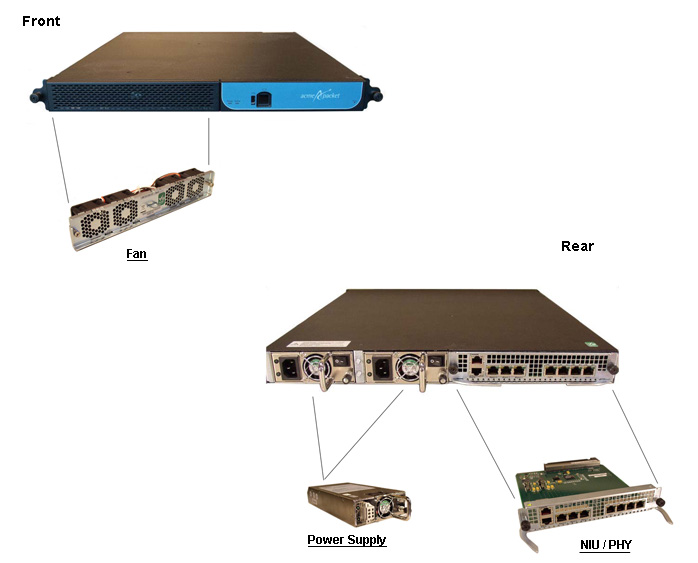

Exploded View
