Locator LED and button
|
front
upper left and near center
|
white
|
Off
|
Normal operating state
|
fast
blink
|
Receiving signal as result of
"setlocator" command or pressing the indicator button
|
Fault
LED
|
front
upper left and near center |
Amber
|
On |
Service required. See ALOM
"showfaults" command for details
|
| Off |
Normal operating state
|
Activity LED
|
front
upper left
|
Green
|
On |
Drives receiving Power.
Solid light means the drive is idle.
|
| Off |
Power off
|
| Flashing
|
Drives are processing a
command.
|
Power button
|
front
upper left
|
N/A |
On |
Turns host on and off.
Use a pen to operate the button. The button is recessed to
prevent accidental shut off.
|
Alarm:Critical
LED
|
front
left
|
red |
See ILOM Admin Guide
|
Indicates a critical alarm
|
Alarm: Major LED
|
front
left
|
red |
Indicates a major alarm
|
Alarm: Minor LED
|
front left
|
amber
|
See ILOM Admin Guide
|
Indicates a minor alarm
|
Alarm: User LED
|
front
left
|
amber
|
Indicates a user
alarm
|

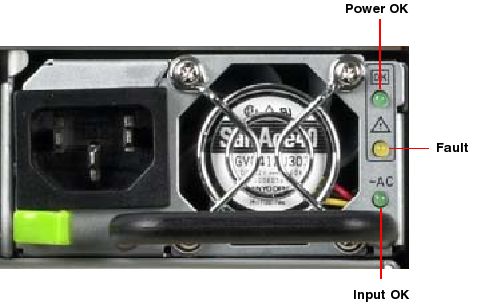

Power OK LED
|
rear
center
|
Green
|
Off
|
System unavailable. Either
no power or ALOM not running
|
Steady On
|
Powered on and running in normal
operating state.
|
Standby
Blink
|
Service Processor running.
System running in minimal standby mode.
|
Slow Blink
|
Normal transitory activity
taking place
OR system diags running
OR system booting
|
