Sun Blade X6250

Options 4400A / 4401A / 4402A

371-2654	371-2655	371-2656

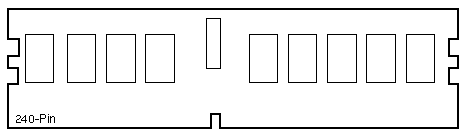

DDR2-667/PC2-5300 CL5/ECC/Fully Buffered 1GB FBDIMM 2GB FRU 540-7251 2GB Option 4400A	DDR2-667/PC2-5300 CL5/ECC/Fully Buffered 2GB FBDIMM 4GB FRU 540-7252 4GB Option 4401A	DDR2-667/PC2-5300 CL5/ECC/Fully Buffered 4GB FBDIMM 8GB FRU 540-7253 8GB Option 4402A

Additional Information & Views

Sun Blade X6250 Codename: Wolf

Notes

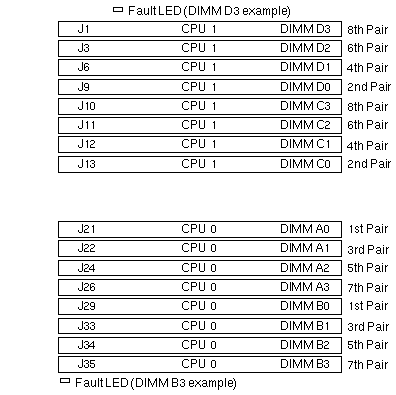

1. CPU 0 DIMM fault LEDs are located to the left and below each slot.
2. CPU 1 DIMM fault LEDs are located to the left and above each slot.
3. Press Fault Remind button S4 to illuminate the memory fault LEDs.
4. See System Board page for memory installation instructions.

References

1. Sun Blade X6250 Server Module Documentation.
