Sun Blade X6250
| 375-3501 |
540-7254 |
A93-AA |
594-4530 |
594-4531 |
594-4532 |
|
System Board |
Assembly/FRU |
X6250 Base
540-7254 |
X4361A
4GB 1.6GHz
Xeon L5310 |
X4362A
8GB 1.86GHz
Xeon E5320 |
X4363A
32GB 2.33GHz
Xeon E5345 |
| 594-4533 |
594-4816 |
594-5282 |
594-5283 |
594-5284 |
X4364A
32GB 2.66GHz
Xeon X5355 |
X4365A
32GB 3.0GHz
Xeon 5160 |
X4367A
4GB 2.5GHz
Xeon L5420 |
X4368A
4GB 2.33GHz
Xeon E5410 |
X4369A
8GB 2.83GHz
Xeon E5440 |
| 594-5672 |
594-5673 |
X6250-24L2660-22
4GB 2.66GHz
Xeon L5430 |
X6250-24M2500-22
4GB 2.50GHz
Xeon E5420 |

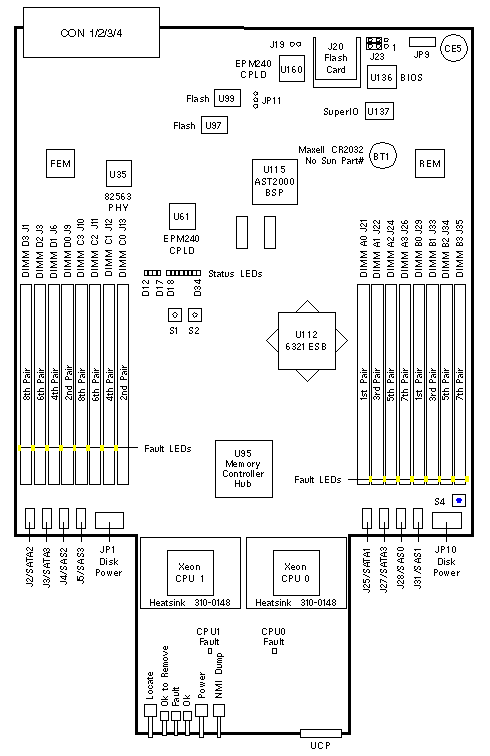

Headers, Jumpers, LEDs, and Switches
| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| D12 |
n/a |
n/a |
PEM1 Power |
| D14 |
n/a |
n/a |
PEM1 Attention |
| D15 |
n/a |
n/a |
Ethernet Phy Activity |
| D17 |
n/a |
n/a |
Ethernet Phy Link |
| D18 |
n/a |
n/a |
PEM0 Power |
| D21 |
n/a |
n/a |
PEM0 Attention |
| D23 |
n/a |
n/a |
CPLD |
| D25 |
n/a |
n/a |
NEM0 Power |
| D27 |
n/a |
n/a |
NEM0 Attention |
| D30 |
n/a |
n/a |
NEM1 Power |
| D32 |
n/a |
n/a |
NEM1 Attention |
| D34 |
n/a |
n/a |
BMC Heartbeat |
| J19 |
1-2 |
Out |
Unknown |
| J23 |
1-3
3-5
2-4
4-6 |
In
In
In
In |
Clear CMOS
Normal CMOS Operation (default)
Clear BIOS Password
(BugID 15504984 [SUNBT6742739])
Normal BIOS Operation (default) |
| JP9 |
14 |
n/a |
Unused Connector |
| JP11 |
3 |
n/a |
Unknown |
| S1 |
n/a |
n/a |
Unknown Button |
| S2 |
n/a |
n/a |
Unknown Button |
| S4 |
n/a |
n/a |
CPU and DIMM Fault Locate Button |
|
Sun Blade X6250 Codename: Wolf |
Notes
- The FRU includes Disk Backplanes and Cables, System Board, Enclosure, and
Cover.
- The FRU does not include CPUs, Disks, Heatsinks, or Memory.
- LEDs D12 through D34 are not visible when the blade is installed.
- LEDs D12 through D34 are not activated by the Fault Remind button.
- The Intel 6321ESB SL97P is a leaded component.
- The PMC-Sierra PM8380-NI is a leaded component.
Memory Notes

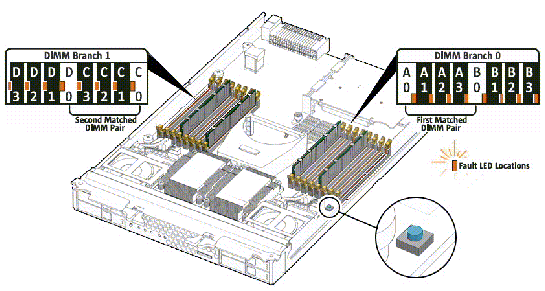

- CPU 0 DIMM fault LEDs are located to the left and below each slot.
- CPU 1 DIMM fault LEDs are located to the left and above each slot.
- Press Fault Remind button S4 to illuminate the memory fault LEDs.
- The server module can support a maximum of 16 DDR2 DIMMs.
- Two DIMMs within each pair must be identical
(same manufacturer, size, and speed).
- The DIMM slots are paired.
The DIMMs must be installed in pairs (0 and 1, 2 and 3, etc).
The slots for the first two pairs are white; all others are black.
Number
of DIMMs |
Pairs/Slots |
Branch |
| 2 |
A0, B0 |
0 |
| 4 |
C0, D0 |
1 |
| 6 |
A1, B1 |
0 |
| 8 |
C1, D1 |
1 |
| 10 |
A2, B2 |
0 |
| 12 |
C2, D2 |
1 |
| 14 |
A3, B3 |
0 |
| 16 |
C3, D3 |
1 |
Disk Backplane Notes
- The Disk Backplane, Data Cable, and Power Cable are not available as FRUs.
- Disk Backplane Data Cables and Power Cables do not have Sun part numbers.
- The Power Cable may be labeled 540-2479. This is a disk bracket released
in 1993.
- SAS configurations require RAID Expansion Module (REM) 371-2658.
- The REM supports RAID 0/1/5/10 with SAS disk drives.
- Use the system board SAS connectors for SAS/SATA/SSD drives connected
to any REM.
- Use the system board SATA connectors for SATA/SSD drives connected
without a REM.
References
 Sun Blade X6250 Server Module Documentation.
|
