Sun Server X4-8 - Home Page
Sun Server X4-8 Block Diagrams

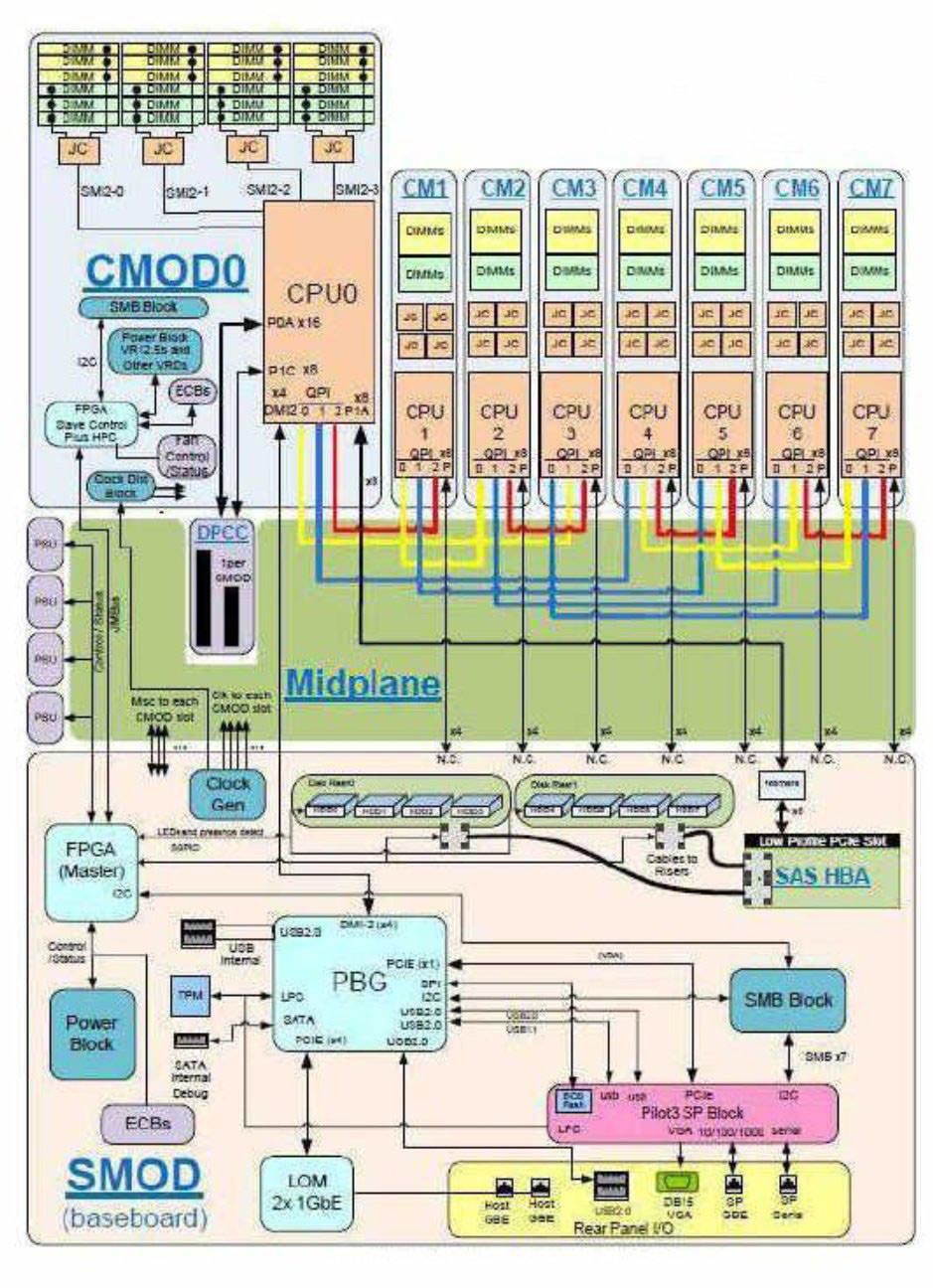

Sun Server X4-8 Server Block Diagram
(from the Service Manual) shows interconnects
between the CMODs, the midplane, the SMOD, and attached and integrated components.

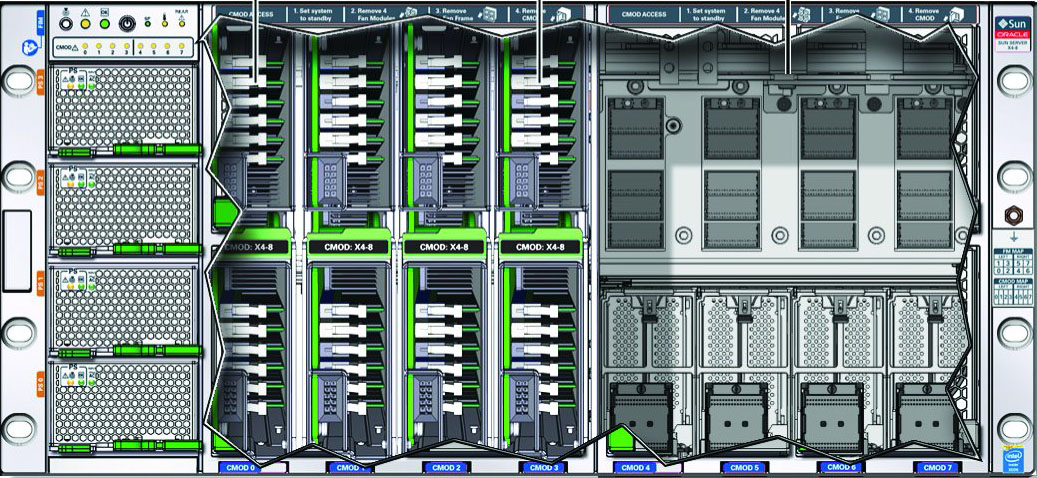

Sun Server X4-8 Four-CPU Block Diagram

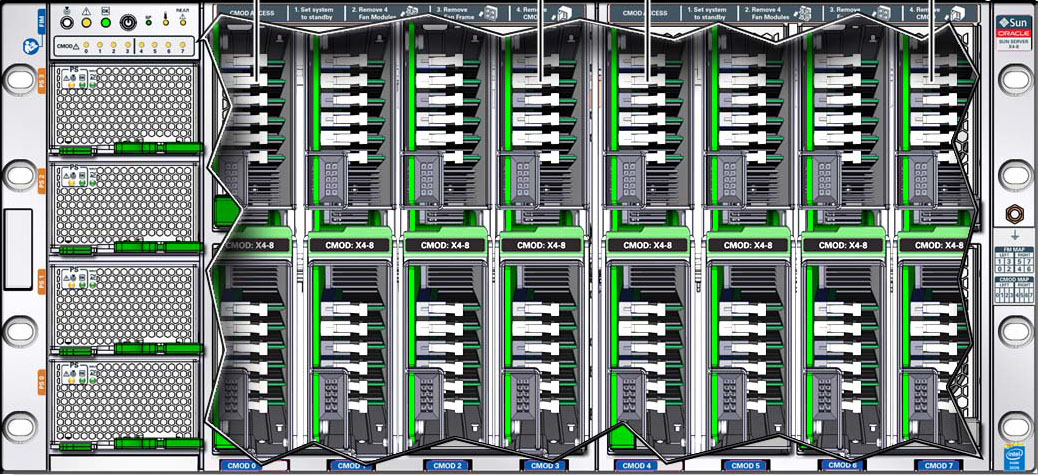

Sun Server X4-8 Eight-CPU Block Diagram

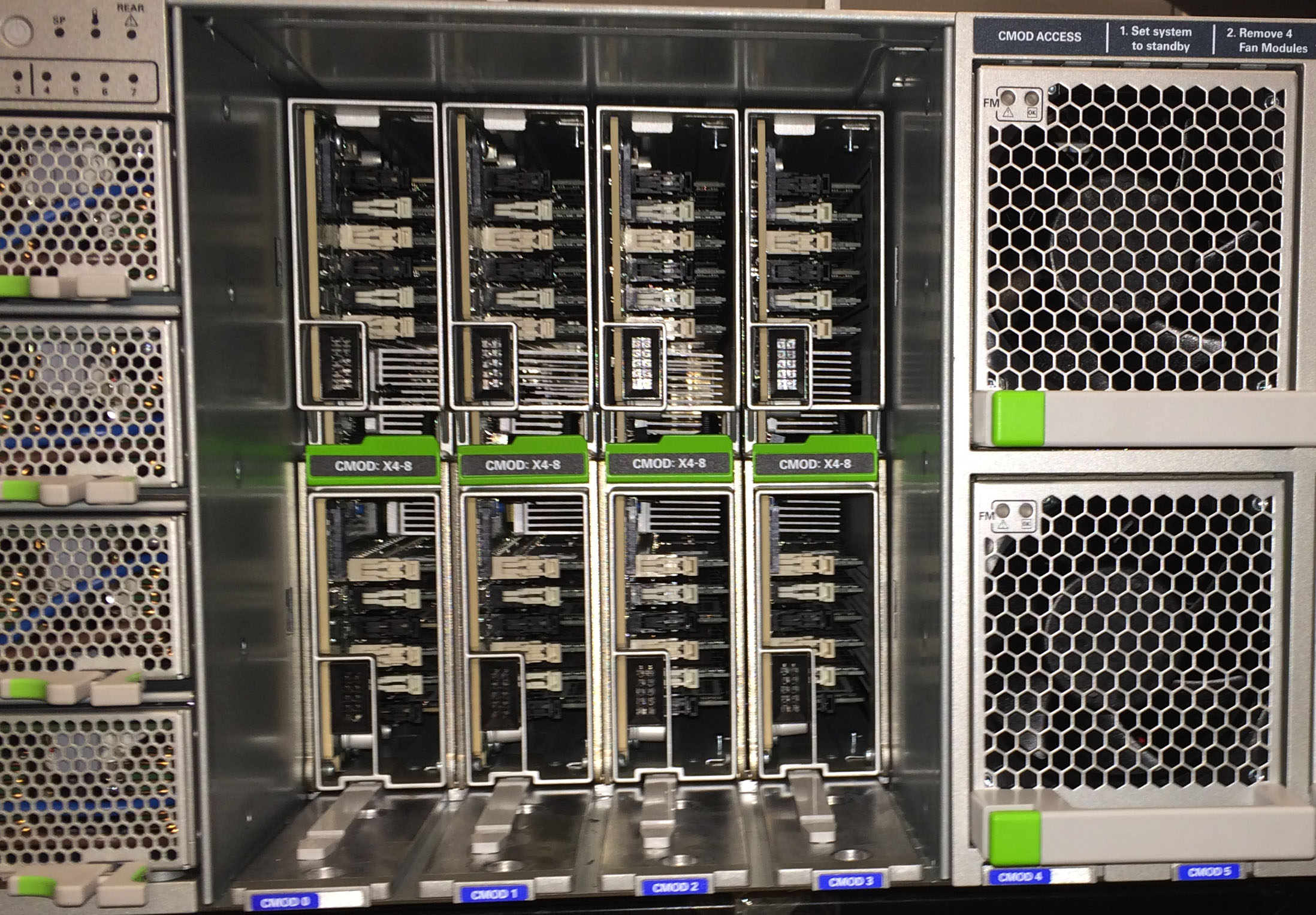

Additional Sun Server X4-8 Photos

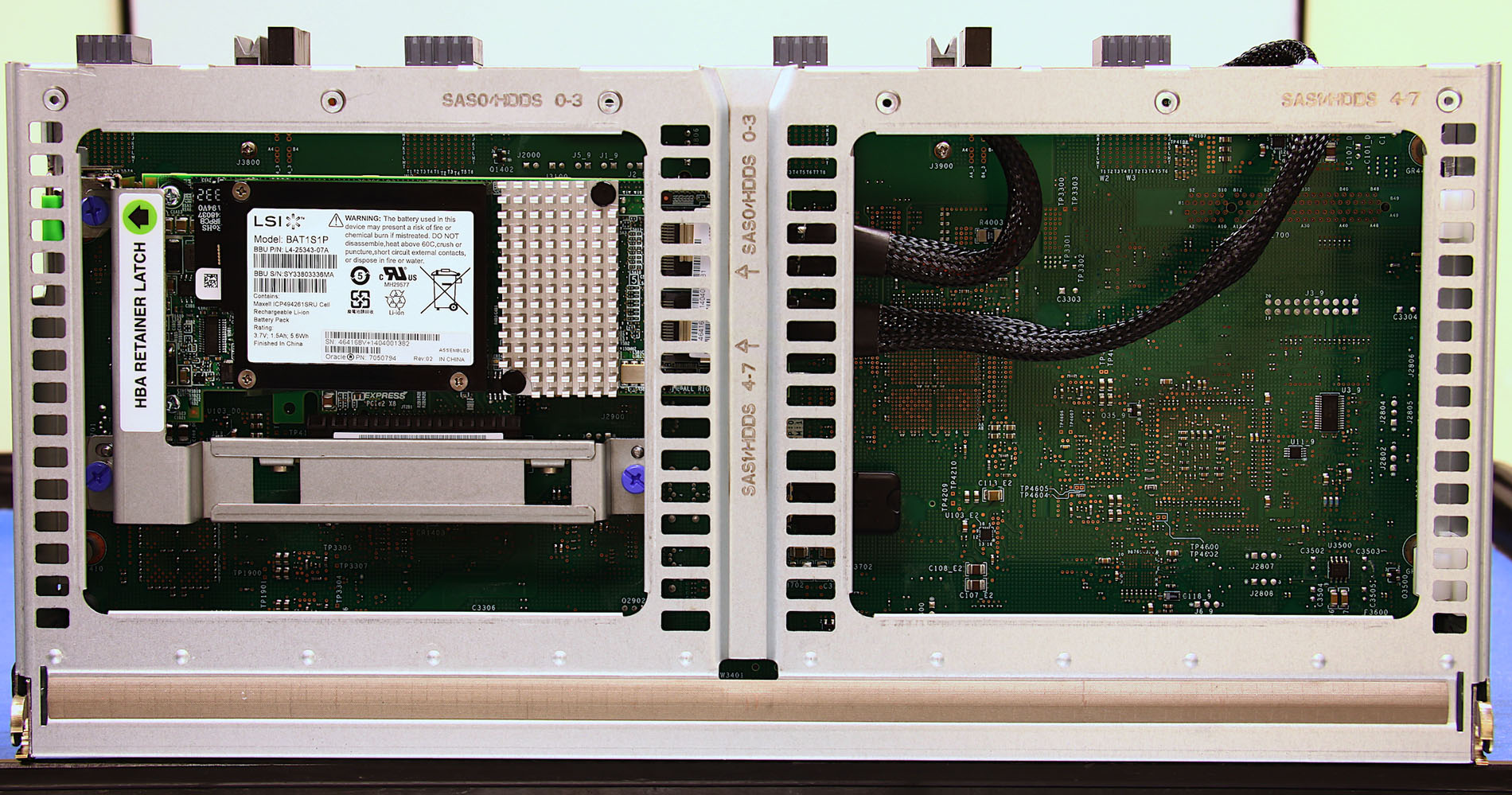

Photo of rear Storage Module

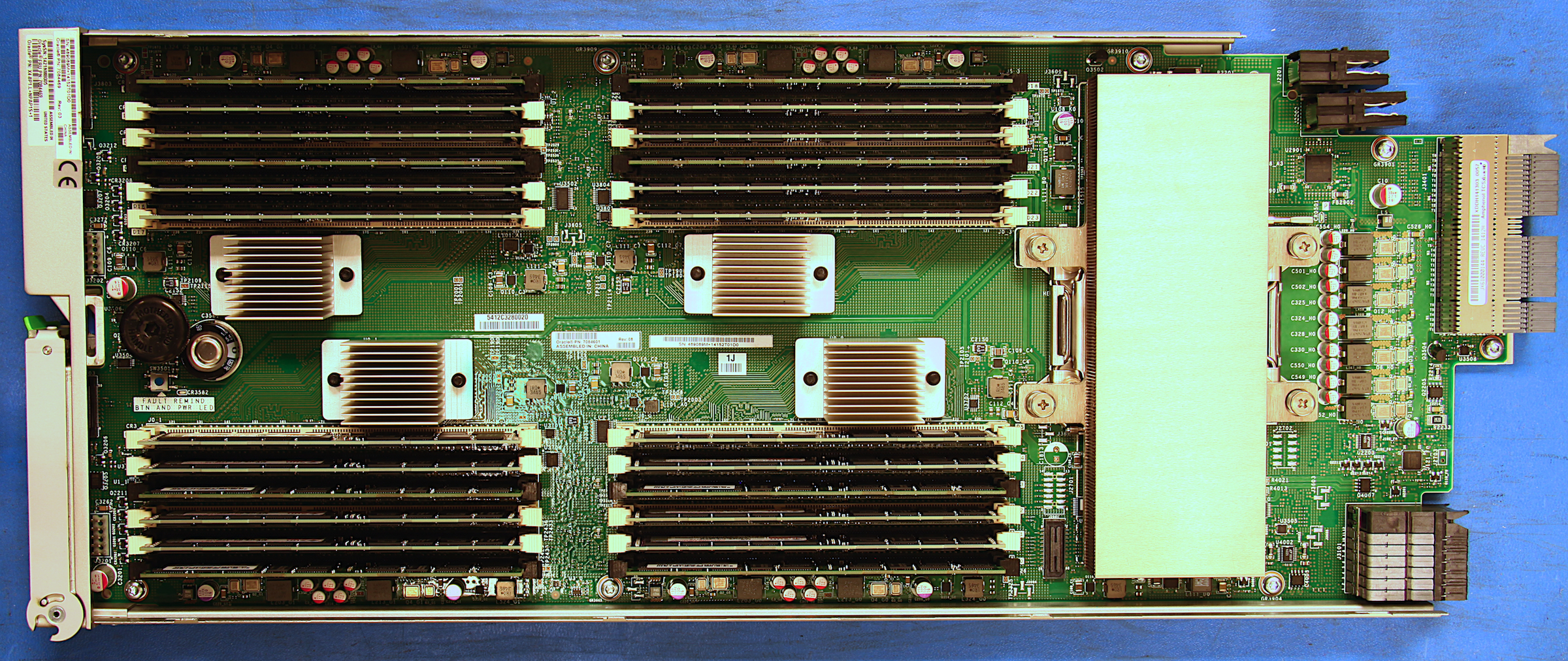

Photo of CMOD
Photo of Fan Frame removed
