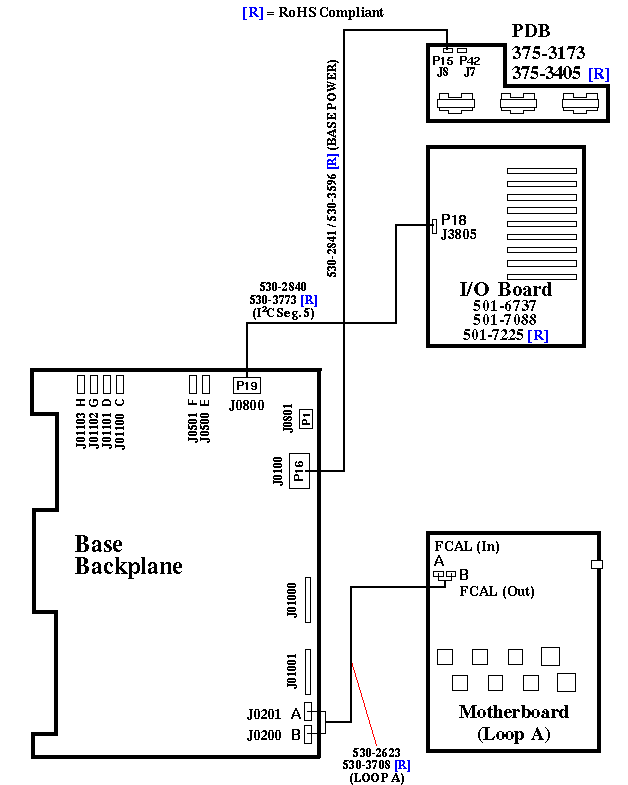

FCAL Base Backplane with Single Loop (A)


Base Backplane PDB I/O Board Motherboard
NOTE: Right click and select "View Image" to get just the image for printing and saving.





[Back to Top]



Cable
Connection Points
Base Power Cable
Part # 530-2841
Part # 530-3596
Origin: P15 to PDB-J8
Destination: P16 to Base Backplane-J0100
I2C Segment 5 Cable (Part 1)
Part # 530-2840
Part # 530-3773
Origin: P18 to I/O Board-J3805
Destination: P19 to Base Backplane-J0800
FCAL (Motherboard to Base Backplane)
Loop A Cable
Part # 530-2623
Part # 530-3708
Origin: On Motherboard - A to FCAL(IN), B to FCAL(OUT)
Destination: On Base Backplane - A to J0201, B to J0200
