MG1 ECL Monochrome Frame Buffer

Sun-4/15/30/40/50/60/65/75
Sun-4/E / SS10 / SS20 / SS600 / SC2000

501-1419 501-8043

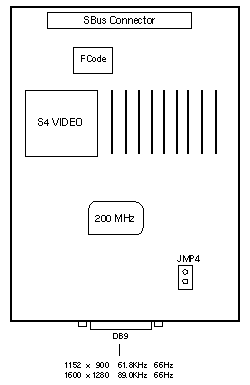

w 4/E Backpanel


Jumper JMP4

PINS SETTING DESCRIPTION
1-2
1-2
1-2		 In
Out
Out		 Select 1600 x 1280 resolution
Select 1152 x 900 resolution
Monitor auto select

UNIX ID: /dev/bwtwo0

Power:

1.3 Amps @ +5Vdc
6.5 Watts

Last updated: December 2, 1996
