Volume I: Slot Assignment

VMEbus Bus Grant and Interrupt Acknowledge

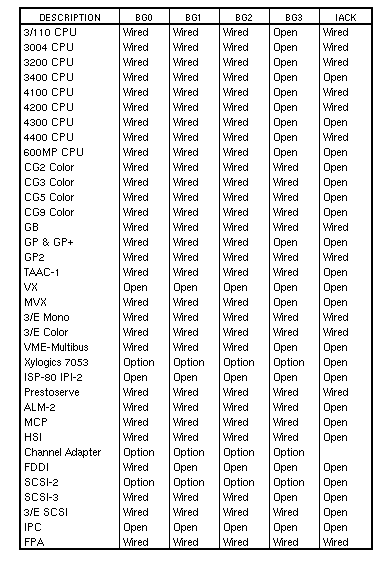

This chart shows how the Bus Grant In/Out and Interrupt Acknowledge In/Out signals are connected on the board. Wired signals are not used. Open signals are selected with backplane jumpers. Option signals are enabled on the board and on the backplane.
