Sun3/II - Parts_Breakdown/Monitor - 19-inch Hi-Resolution CRT

Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

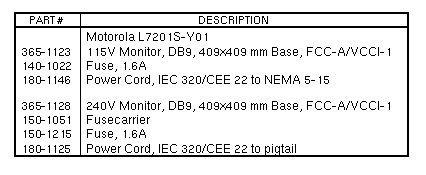

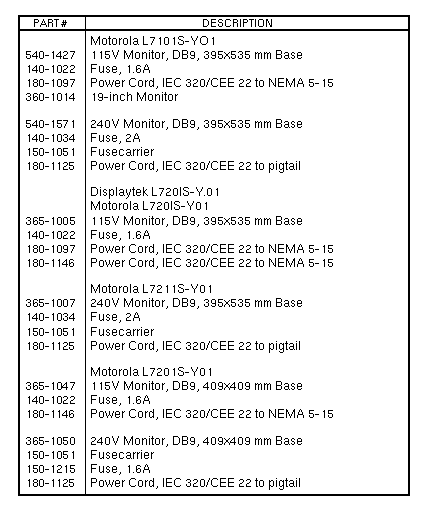

Volume II: Parts Breakdown - Monitor

19-inch Hi-Resolution CRT

Image Size: 355 mm Horizontal / 279 mm Vertical / 452 mm Diagonal


     Pixel      Horizontal    Vertical
  Resolution    Frequency     Frequency
  ----------    ----------    ---------
  1600 x 1280    89.3KHz        67Hz
