Volume II: Parts Breakdown - Monitor

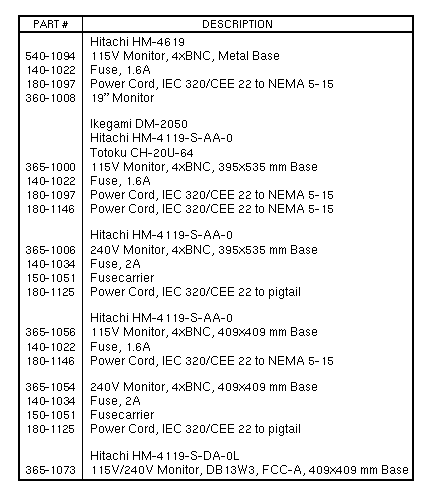

19-inch Color CRT

Image Size: 255 mm Horizontal / 280 mm Vertical / 452 mm Diagonal

     Pixel      Horizontal    Vertical
  Resolution    Frequency     Frequency
  ----------    ----------    ---------
  1152 x 900     61.8KHz        66Hz

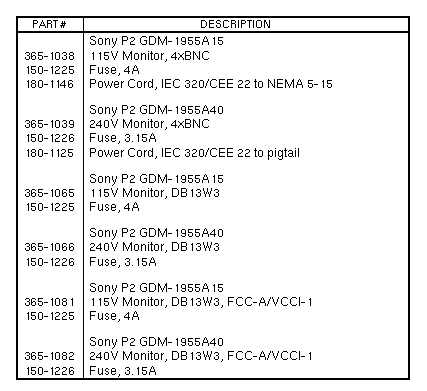

19-inch Color CRT

Image Size: 350 mm Horizontal / 273 mm Vertical / 443 mm Diagonal

     Pixel      Horizontal    Vertical
  Resolution    Frequency     Frequency
  ----------    ----------    ---------
  1152 x 900     61.8KHz        66Hz
