Volume I: Disk

Micropolis 1588-15 [669MB]

5 1/4" Embedded SCSI
Sun-4/330/370/470
Options 561 / 563 / 565 / 566
370-1319
[FS0013-03-5, Black Bezel, Green LED, 3 1/4" Height]
370-1326 [FS0019-01-6, No Bezel, No LED, 3 1/4" Height]
555-1151 [FS0019-01-6, No Bezel, No LED, w Bracket]

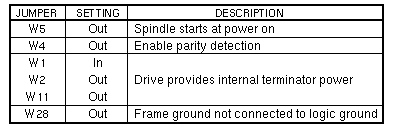

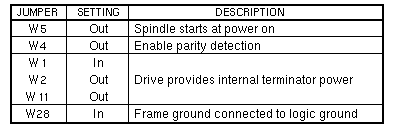

Option Jumper Settings

External Storage and Expansion Modules

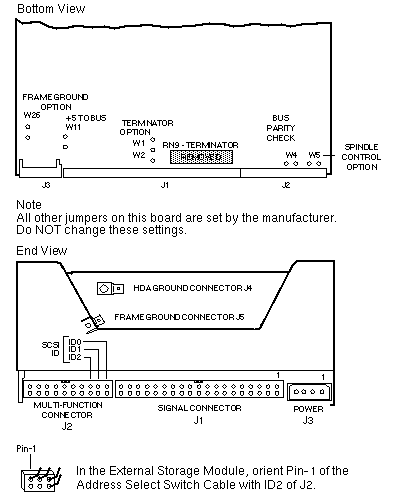

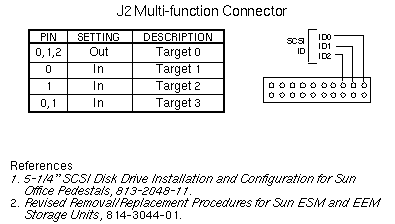

Address Jumper Settings
