Netra CP3010

Netra CP3010 Codename: Schumacher

Serial Number Location

Located on the board - board needs to be removed to get access to the serial number.

370-7697	501-7009	501-7246	501-7247
1GB DIMM / 2GB Option XCP3010-MEM-2GB	System Board w/o CPU	System Board FRU 1 × 1.503GHz USIIIi	System Board FRU 2 × 1.503GHz USIIIi

501-7142	501-7145
2GB CP3010 1 × 1.503GHz USIIIi 2 × 1GB DIMM 370-7697 CP3010S-1100A-2GB	4GB CP3010 2 × 1.503GHz USIIIi 4 × 1GB DIMM 370-7697 CP3010S-1100B-4GB

Table Legend

[C] = Customer Replaceable Unit (CRU) [S] = Supported, but can no longer be ordered with this system

CP3010 Boards
(SPARC CPU)

PART #	DESCRIPTION
594-1709 375-3316 [C]	2GB Compact Flash Option XCP3000-CF-2GB 2GB Compact Flash
594-2506 370-7697 [C]	2GB Memory Option XCP3010-MEM-2GB 1GB DIMM
501-7246 [C] 370-7689 501-7009 527-1170 501-7247 [C] 370-7689 501-7009 527-1170	1 × 1.503GHz UltraSPARC IIIi CP3010 System Board Heatsink System Board 1.503GHz UltraSPARC IIIi 2 × 1.503GHz UltraSPARC IIIi CP3010 System Board Heatsink System Board 1.503GHz UltraSPARC IIIi
594-1541 501-7068 [C]	Rear Transition Module Option XCP30X0-RTM [S] Rear Transition Module
594-2507 375-3285 [C]	40GB PMC Disk Drive Option X4010A [S] 40GB PMC Disk Drive Assembly

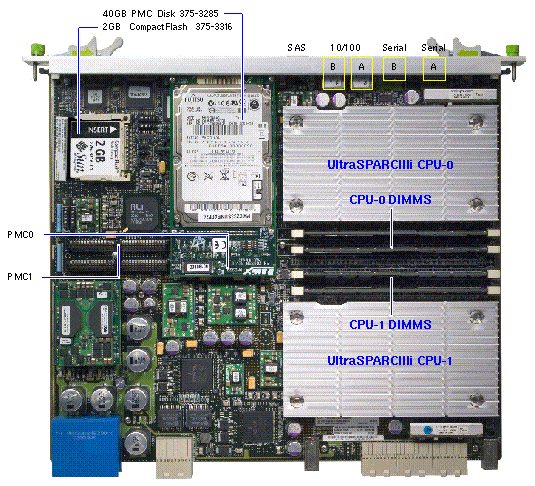

CP3010 Configured Board Options

PART #	DESCRIPTION
594-1537 501-7142 501-7246 [C] 370-7689 501-7009 527-1170 370-7697 [C]	Option CP3010S-1100A-2GB 2GB × 1.503GHz CP3010 System Board 1 × 1.503GHz UltraSPARC IIIi CP3010 System Board FRU Heatsink System Board 1.503GHz UltraSPARC IIIi 1GB DIMM
594-1539 501-7145 501-7247 [C] 370-7689 501-7009 527-1170 370-7697 [C]	Option CP3010S-1100B-4GB 4GB 2 × 1.503GHz CP3010 System Board 2 × 1.503GHz UltraSPARC IIIi CP3010 System Board FRU Heatsink System Board 1.503GHz UltraSPARC IIIi 1GB DIMM
CP3010 Board Documentation

Notes

1. The minimum operating system is Solaris 9 9/05 and Solaris 10.
2. Two matching DIMMs are required per CPU.
3. The CP3010 is not shipped with a battery.
4. Use of BR1632 / CR1632 coin cell battery 150-2850 is optional.
5. The 502-7068 CP30x0 RTM SAS port is inoperable with the CP3010.
