Sun Network QDR InfiniBand Gateway Switch - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
System Notes:
Sun Network QDR InfiniBand Gateway Switch Home Page

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 371-2210 [F] Buy 3V Lithium Coin Cell Battery n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7061031 2 [C] Rear-to-Front Airflow Fan Module 350-1312 [C] [S]
n/a 350-1312 [C] [S] Rear-to-Front Airflow Fan Module n/a
2 7054728 is the only version of NM2-GW built with new fan 7061031.
Miscellaneous
Option # Manufacturing
Part #		 Description Previous
Part #

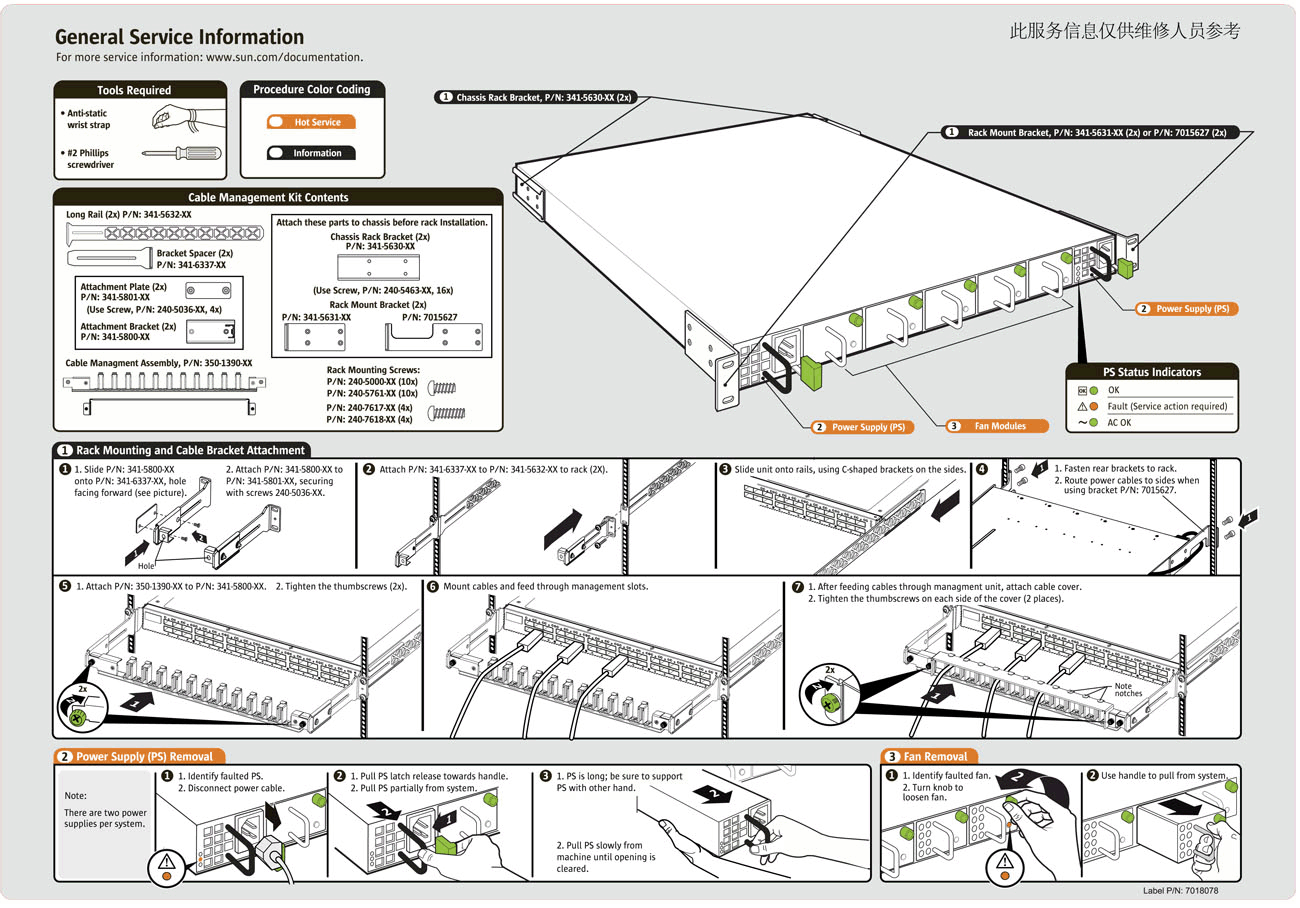

n/a 7018078 Service Label n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 300-2143 [C] Type A237 760 Watt AC Input Power Supply n/a
n/a 300-2233 [C] Type A247 760 Watt AC Input Power Supply 300-2143 [C]
n/a 300-2299 [C] Type A247A 760 Watt AC Input Power Supply 300-2233 [C]
n/a 7065505 [C] Type A247B 760 Watt AC Input Power Supply n/a
n/a 7336220 [C] Type A247B 760 Watt AC Input Power Supply 7065505 [C]
n/a 7351491 3 [C] Typer A247B 760 Watt AC Input Power Supply n/a
3 This power supply used on the Oracle Switch ES1-24, Sun Datacenter InfiniBand Switch 36 and Sun Network QDR InfiniBand Gateway Switch requires firmware 2.2.9-3 or higher.
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 560-2932 Rack Mount Kit n/a
n/a 7018695 Rack Mounting Kit n/a
Switch/Hub
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-4269 5 6 7 8 9 10 11 12 13 Network QDR Infiniband Gateway Switch n/a
  • Type A237 760 Watt AC Input Power Supply
 n/a
  • Type A247 760 Watt AC Input Power Supply
 300-2143 [C]
  • 350-1312 [C] [S]
  • Rear-to-Front Airflow Fan Module
 n/a
  • 350-1566 4
  • Rear-to-Front Airflow Fan Module
 n/a
  • InfiniBand Gateway Switch {PKG F541-4188}
 n/a
    • 350-1345
    • Fan Module Filler Panel, FT0 and FT4
 n/a
    • 511-1312
    • Fan Board
 n/a
    • 511-1402
    • Gateway Board
 n/a
      • 3V Lithium Coin Cell Battery
n/a
      • 371-4596
      • Kontron nanoEXTexpress-SP Module
 n/a
    • 530-4319
    • Internal Power Cable
 n/a
    • 530-4320
    • Internal Signal Cable
 n/a
  • InfiniBand Gateway Switch
n/a
    • 350-1345
    • Fan Module Filler Panel, FT0 and FT4
 n/a
    • 511-1312
    • Fan Board
 n/a
    • 530-4319
    • Internal Power Cable
 n/a
    • 530-4320
    • Internal Signal Cable
 n/a
    • 7014379
    • Gateway Board
 n/a
      • 3V Lithium Coin Cell Battery
n/a
      • 371-4596
      • Kontron nanoEXTexpress-SP Module
 n/a
n/a 7014365 15 16 17 18 Network QDR InfiniBand Gateway Switch n/a
  • Type A247 760 Watt AC Input Power Supply
 300-2143 [C]
  • Type A247A 760 Watt AC Input Power Supply
 300-2233 [C]
  • 350-1566 14
  • Rear-to-Front Airflow Fan Module
 n/a
  • InfiniBand Gateway Switch
n/a
    • 350-1345
    • Fan Module Filler Panel, FT0 and FT4
 n/a
    • 511-1312
    • Fan Board
 n/a
    • 530-4319
    • Internal Power Cable
 n/a
    • 530-4320
    • Internal Signal Cable
 n/a
    • 7014379
    • Gateway Board
 n/a
      • 3V Lithium Coin Cell Battery
n/a
      • 371-4596
      • Kontron nanoEXTexpress-SP Module
 n/a
n/a 7014376 [F] InfiniBand Gateway Switch FRU n/a
  • 350-1345
  • Fan Module Filler Panel, FT0 and FT4
 n/a
  • 511-1312
  • Fan Board
 n/a
  • 530-4319
  • Internal Power Cable
 n/a
  • 530-4320
  • Internal Signal Cable
 n/a
  • 7014379
  • Gateway Board
 n/a
    • 3V Lithium Coin Cell Battery
n/a
    • 371-4596
    • Kontron nanoEXTexpress-SP Module
 n/a
n/a 7054728 21 22 23 Network QDR Infiniband Gateway Switch n/a
  • Type A247A 760 Watt AC Input Power Supply
 300-2233 [C]
  • 350-1566 19
  • Rear-to-Front Airflow Fan Module
 n/a
  • InfiniBand Gateway Switch FRU
 n/a
    • 350-1345
    • Fan Module Filler Panel, FT0 and FT4
 n/a
    • 511-1312
    • Fan Board
 n/a
    • 530-4319
    • Internal Power Cable
 n/a
    • 530-4320
    • Internal Signal Cable
 n/a
  • 7061031 20 [C]
  • Rear-to-Front Airflow Fan Module
 350-1312 [C] [S]
  • Type A247B 760 Watt AC Input Power Supply
 n/a
n/a 7305543 Network QDR Infiniband Gateway Switch Assembly n/a
  • 7061031 24 [C]
  • Rear-to-Front Airflow Fan Module
 350-1312 [C] [S]
  • Type A247B 760 Watt AC Input Power Supply
 n/a
  • Infiniband Gateway Switch FRU
 7054724 [C]
    • 350-1345
    • Fan Module Filler Panel, FT0 and FT4
 n/a
    • 511-1312
    • Fan Board
 n/a
    • 530-4319
    • Internal Power Cable
 n/a
    • 530-4320
    • Internal Signal Cable
 n/a
    • 7304100 25
    • Gateway Board
 n/a
      • 3V Lithium Coin Cell Battery
n/a
      • 7303061
      • Kontron COMe-mCT10 Module
 n/a
    • 7314899 26
    • Gateway Board
 n/a
      • 3V Lithium Coin Cell Battery
n/a
      • 7303061
      • Kontron COMe-mCT10 Module
 n/a
  • Type A247B 760 Watt AC Input Power Supply
 7065505 [C]
  • Typer A247B 760 Watt AC Input Power Supply
 n/a
n/a 7361743 Network QDR Infiniband Gateway Switch n/a
  • 7061031 29 [C]
  • Rear-to-Front Airflow Fan Module
 350-1312 [C] [S]
  • Typer A247B 760 Watt AC Input Power Supply
 n/a
  • 7361744 [F]
  • Infiniband Gateway Switch Subassembly
 n/a
    • 350-1345
    • Fan Module Filler Panel, FT0 and FT4
 n/a
    • 530-4319
    • Internal Power Cable
 n/a
    • 530-4320
    • Internal Signal Cable
 n/a
    • 7314899 31
    • Gateway Board
 n/a
      • 3V Lithium Coin Cell Battery
n/a
      • 7303061
      • Kontron COMe-mCT10 Module
 n/a
4 Fan 350-1566 is not a FRU (use 350-1312 or 7061031).
5 541-4269 (Rev 52) - Fan 7061031 is not used to build this Sun Datacenter InfiniBand Gateway Switch.
6 541-4269 (Rev 50 and 51) - FRU 7062820 includes Rear-to-Front Airflow Fan Module 7061031.
7 541-4269 (Rev 50 and 51) - F350-1566 was released in January 2010. (WO_42338) No FRU is available.
8 541-4269 (Rev 52) - FRU F350-1312 was inactivated and replaced by 7062820 in October 2012.
9 541-4269 (Rev 50 and 51) - Fan 350-1312 was used from August to October 2010. (WO_43721)
10 541-4269 (Rev 50 and 51) - FRU F350-1312 was inactivated and replaced by 7062820 in October 2012.
11 541-4269 (Rev 50 and 51) - Fan 7061031 is not used to build this Sun Datacenter InfiniBand Gateway Switch.
12 541-4269 (Rev 52) - FRU 7062820 includes Rear-to-Front Airflow Fan Module 7061031.
13 541-4269 (Rev 52) - F350-1566 was released in January 2010. (WO_42338) No FRU is available.
14 Fan 350-1566 is not a FRU (use 350-1312 or 7061031).
15 FRU F350-1312 was inactivated and replaced by 7062820 in October 2012.
16 Fan 7061031 is not used to build this Sun Datacenter InfiniBand Gateway Switch.
17 FRU 7062820 includes Rear-to-Front Airflow Fan Module 7061031.
18 F350-1566 was released in January 2010. (WO_42338) No FRU is available.
19 Fan 350-1566 is not a FRU (use 350-1312 or 7061031).
20 7054728 is the only version of NM2-GW built with new fan 7061031.
21 F350-1566 was released in January 2010. (WO_42338) No FRU is available.
22 FRU F350-1312 was inactivated and replaced by 7062820 in October 2012.
23 FRU 7062820 includes Rear-to-Front Airflow Fan Module 7061031.
24 7054728 is the only version of NM2-GW built with new fan 7061031.
25 Switch 7304100 with BCM5384.
26 Switch 7314899 with BCM53124.
27 7305550 requires firmware 2.1.8-1 or later, and cannot be downgraded to firmware below that version.
28 This power supply used on the Oracle Switch ES1-24, Sun Datacenter InfiniBand Switch 36 and Sun Network QDR InfiniBand Gateway Switch requires firmware 2.2.9-3 or higher.
29 7054728 is the only version of NM2-GW built with new fan 7061031.
30 This power supply used on the Oracle Switch ES1-24, Sun Datacenter InfiniBand Switch 36 and Sun Network QDR InfiniBand Gateway Switch requires firmware 2.2.9-3 or higher.
31 Switch 7314899 with BCM53124.

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
