Oracle ZFS Storage ZS3-BA LEDs

The Oracle ZFS Storage ZS3-BA provides the following LED groupings:

Front Panel LEDs Rear Panel LEDs

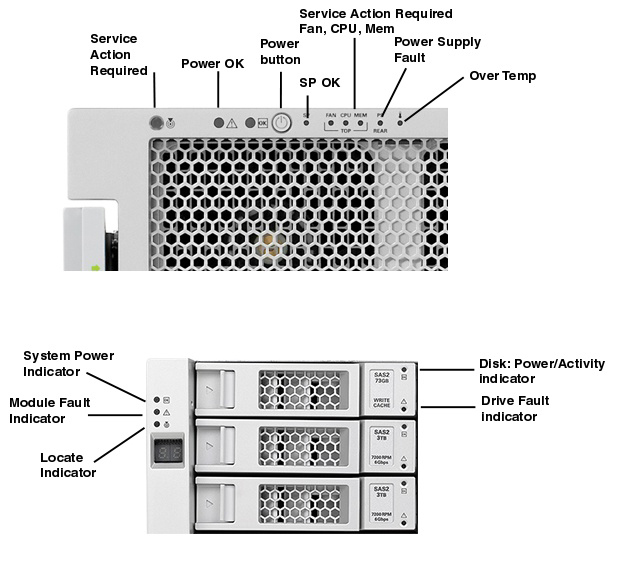

Oracle ZFS Storage ZS3-BA Front Panel LEDs



The ZS3-4 front panel LEDs are located on the upper left hand corner of the front panel. The Oracle Storage DE2-24C LEDs are located on the top of the left bezel. These LEDs provide a quick visual check on the state of the system.

LED Name LED color Description
Oracle ZFS Storage ZS3-BA Service Action Required LED
Amber
  • A fault is detected by the system diagnostics, such as POST or ILOM.
  • When a FRU fails, such as a power supply.
Oracle ZFS Storage ZS3-BA Power/OK LED Off The system is unavailable. System power might be off or simply disconnected.
Green - Steady On Normal Operating State
Green - Slow Blink Main power is off, the system is in standby mode.
Green - Fast Blink Indicates power is going off soon via a graceful shutdown or power has been applied to the system.
Oracle ZFS Storage ZS3-BA Service Processor OK LED Off The system is unavailable. System power might be off or simply disconnected.
Green - Steady On Service Processor has successfully booted.
Green - Slow Blink Service Processor has booted and entered standby power mode.
Green - Fast Blink Service Processor is booting up.
Oracle ZFS Storage ZS3-BA Power on/off Button Turns the system on and off. This button is recessed to prevent accidental server power-off. There is no Power On/Off button on the rear panel.
Oracle ZFS Storage ZS3-BA Service Action Required - Fan LED Amber Fan module is faulty. See Fan Module LED inside system to identify faulty fan module.
Oracle ZFS Storage ZS3-BA Service Action Required - CPU LED Amber CPU is faulty. See CPU LED inside of system to identify faulty CPU (lit amber LED).
Oracle ZFS Storage ZS3-BA Service Action Required - Memory LED Amber Indicates a memory fault. See memory Riser LED inside system to identify specific memory riser that contains faulty DIMM or DIMMs (lit amber LED).
Oracle ZFS Storage ZS3-BA Over Temperature LED Amber May light if a fan causes an increase in the system operating temperature.
Oracle Storage DE2-24C Locate Indicator LED White - Off Not supported.
White - Blinking @ 1 Hz 50% Locate LED is active.
Oracle Storage DE2-24C Module Fault Indicator LED Green - Steady On System is powered on.
Amber - Off No current faults.
Amber - On System fault.
Oracle Storage DE2-24C System Power Indicator Green System powered on and functioning.

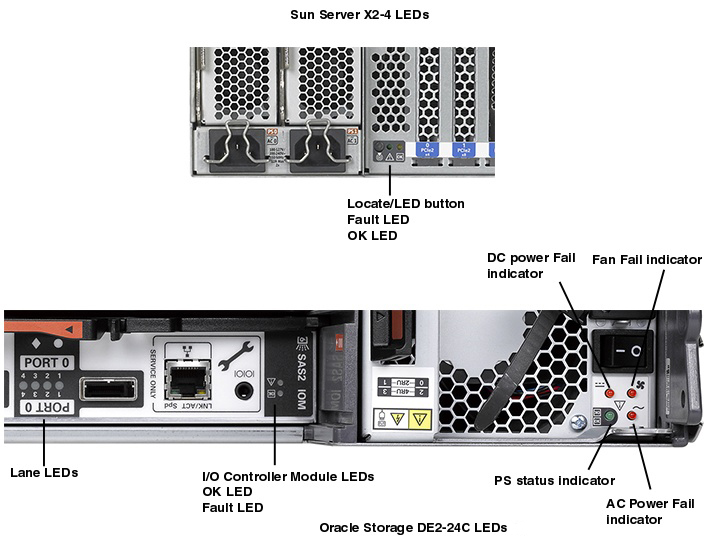

Oracle ZFS Storage ZS3-BA Rear Panel LEDs

LED Name Description
Oracle ZFS Storage ZS3-BA Locator LED/ Locator button Reference Front Panel Locator LED/button listed above
Oracle ZFS Storage ZS3-BA Service Action Required LED Reference Front Panel Service Required LED listed above
Oracle ZFS Storage ZS3-BA Power/OK LED Reference Front Panel Power OK LED listed above
Oracle Storage DE2-24C LEDs Reference Front Panel LEDs listed above
