Sun Storage 7310 LEDs

The Sun Storage 7310 Unified Storage System provides the following LED groupings:

Front Panel LEDs Rear Panel LEDs

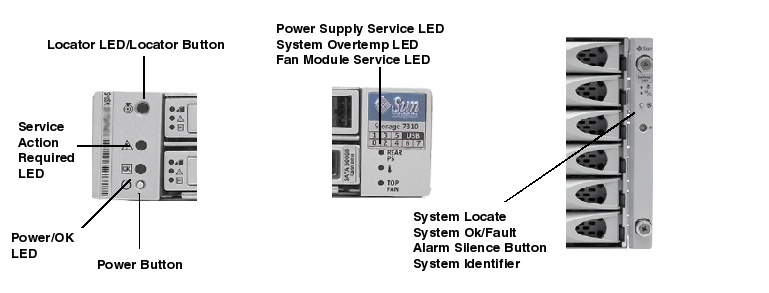

Sun Storage 7310 Front Panel LEDs



Three of the 7310 front panel LEDs are located on the left hand side of the front panel along side HDD0 and HDD1. The other three 7310 front panel LEDs are located on the right hand side of the front panel along side of the USB ports and HDD7. The J4400 LEDs are located on the top of the right front end cap. These LEDs provide a quick visual check on the state of the system.

LED Name LED color Description
7310 Locator LED and Locator button
White Enables you to identify a particular server. The LED is controlled using one of the following methods:
  • Issuing the setlocator on or off command
  • Using the Solaris OS command: locator -n (to turn on) or -f (to turn off).
This LED provides the following indications:
  • Off - Normal operating state.
  • Fast Blink - The server received a signal as a result of one of the preceding methods and is indicating here I am - and that it is operational.
7310 Service Action Required LED Amber The service required LED will illuminate when any of the following conditions occur:
  • A fault is detected by the system diagnostics, such as POST
  • When a FRU fails, such as a power supply
7310 Power/OK LED Off The system is unavailable. System power might be off or simply disconnected.
Green - Steady On Normal Operating State
Green - Slow Blink Indicates that the system is in SUSPEND mode.
7310 Power on/off Button Turns the system on and off. This button is recessed to prevent accidental server power-off. There is no Power On/Off button on the rear panel.
7310 Fan Module Service LED Amber The fan module is faulty. The front and rear panel Service required LEDs are also lit if the system detects a fan module fault.
7310 Power Supply Service Required LED Amber The power supply is faulty. The front and rear panel Service Required LED are also lit if the system detects a power supply fault.
7310 System Overtemperature LED Amber The system is over heating.
J4400 System Locate LED White - Off Not supported.
White - Blinking @ 1 Hz 50% Locate LED is active.
J4400 System OK/Fault LED Green - Steady On System is powered on.
Green - Blinking @ 4 Hz 50% System is booting or being configured.
Green - Off System is powered off.
Amber - Off No current faults.
Amber - On System fault.
J4400 Alarm Silence Button Amber When the alarm is sounding, press this button to silence the enclosures audible alarm.
J4400 System Identifier Amber Currently not supported.

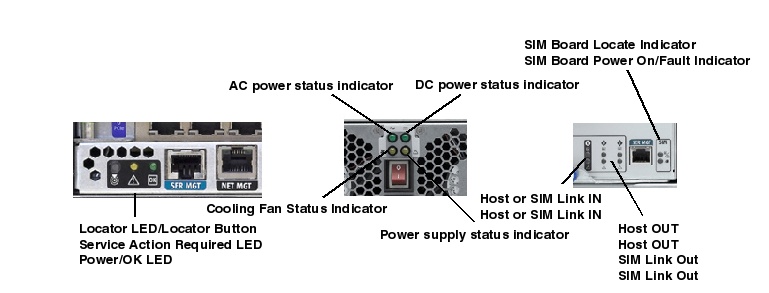

Sun Storage 7310 Rear Panel LEDs

LED Name Description
J4400 AC power status Indicator Green - On : AC power ready.
J4400 DC power status Indicator Green - On : DC power ready
J4400 Cooling Fan Status Indicator Amber - On : Fan failure
J4400 Power supply status Indicator Amber - On : Power supply failure
J4400 SIM Board Locate Indicator Locate Indicator - Blue: Identified as ready for service (not supported)
J4400 SIM Board Power On/Fault Indicator Power On/Fault Indicator - Green/Amber
7310 Locator LED/ Locator button Reference Front Panel Locator LED/button listed above
7310 Service Action Required LED Reference Front Panel Service Required LED listed above
7310 Power/OK LED Reference Front Panel Power OK LED listed above
