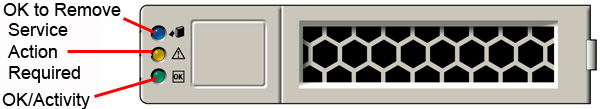

| LED Name |
LED Color |
Description |

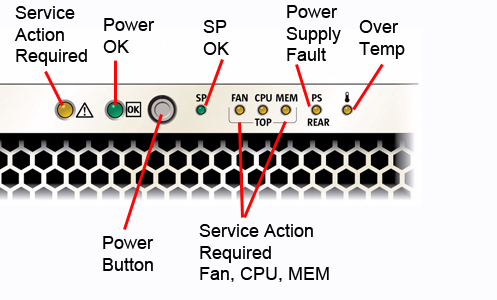

| Service Action Required |
Amber |
- A fault is detected by the system diagnostics, such as POST or ILOM

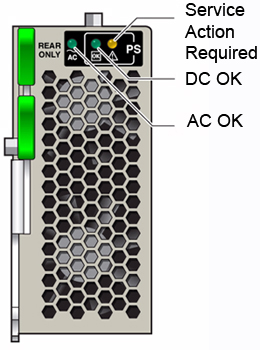

- When a FRU fails, such as a power supply
|
| Power OK |
Green |
Fast blink - Indicates power is going off soon in relation
to a graceful shutdown or power has been applied to system and it is beginning
to boot |
| Slow blink - Main power is off, system is in standby power
mode |
| Steady On - Normal operation |
| SP OK |
Green |
Blink - Service Processor is booting up
Steady On - Service Processor has successfully booted
Slow Blink - Service Processor has booted and entered standby power mode
|
| Amber |
Service Processor is faulty |
| Service Action Required - Fan |
Amber |
Fan module is faulty. See Fan Module LED inside system to
identify faulty fan module. |
| Service Action Required - CPU |
Amber |
CPU is faulty. See CPU LED inside of system to identify faulty
CPU (lit amber LED) |
| Service Action Required - Memory |
Amber |
Indicates a memory fault. See Memory Riser LED inside system
to identify specific memory riser that contains faulty DIMM or DIMMs (lit
amber LED) |
| Over Temp |
Amber |
May light if a fan fault causes an increase in system operating
temperature |
