Sun Blade X3-2B / Sun Blade X6270 M3, Sun Blade X4-2B Server Module and Sun Netra X6270 M3 Server Module LEDs

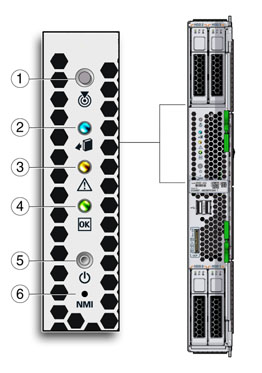

Legend	Name	Color	Activity
1	Locate LED/button	White	Press the Locate button to activate the Locate LED, which is used to identify the server module in a chassis. A user can also activate the Locate LED in Oracle ILOM.
2	Ready to Remove LED	Blue	On solid: The server module is ready to remove. Off: Normal operation. Do not remove the server module.
3	Service Action Required LED	Amber	On solid: The server module has a fault. Off: Normal operation.
4	Power/OK LED	Green	Identifies the power state of the server module. Service processor is starting: Fast blink Host is booting: Slow blink at 1 Hz. Standby power mode: Blink 0.2 seconds on, 2.8 seconds off Full power mode: On solid (does not blink)
5	Power button	None	Press to power the server module on or off.
6	NMI button	None	Non-maskable interrupt. For service use only.

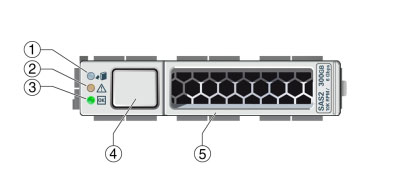

Legend	Name	Color	Activity
1	Ready to Remove LED	Blue	On solid: The storage drive is in standby power mode. The storage drive can be removed safely during a hot-plug operation. A lit Ready to Remove LED indicates that service action is allowed on the storage drive. The "prepare_to_remove_status" status is "Ready (OK to remove)." Off: Normal operation. Do not remove the drive.
2	Service Action Required LED	Amber	On solid: The system has detected a fault with the storage drive. Off: Normal operation.
3	Power/OK LED	Green	Identifies the power state of the storage drive. Off: Power is off or installed drive is not recognized by the system. Blink, variable: Disk activity. On solid (does not blink): The drive is engaged and is receiving full power.
4	Eject button	None	Press to remove the storage drive.
5	Release lever	None	Pull to remove the storage drive. Push to insert the storage drive.
