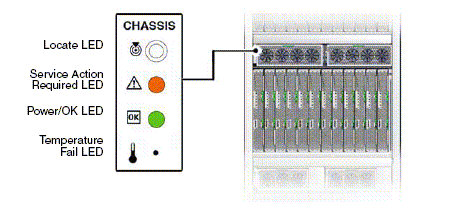

Sun Blade 6048 Modular System LEDsFront Indicator Module LEDsChassis Management Module LEDsPower Supply LEDsRear Fan LEDsSupported Server Module LEDsFront Indicator Module LEDs

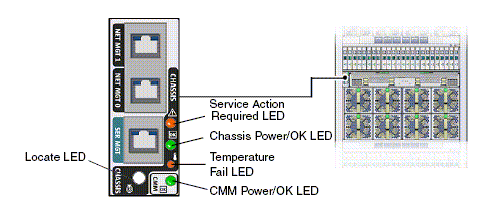

Chassis Management Module LEDs

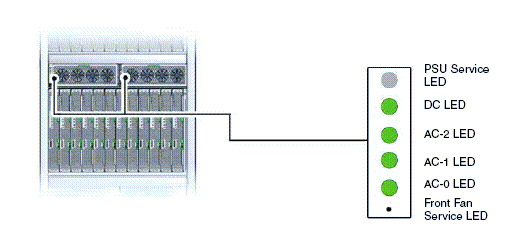

8400 Watt Power Supply LEDs
Condition AC-0 |
LED (Green) AC-1 |
LED (Green) AC-2 |
LED (Green) DC |
LED (Green) PSU Service |
LED (Amber) Fan
Service |
LED (Amber) Normal Operation 8400 W Configuration |
ON |
ON |
ON |
ON |
OFF |
OFF |
Normal Operation 5600 W Configuration |
ON |
ON |
OFF |
OFF |
OFF |
OFF |
Over current, over voltage, or over |
temperature warning fault ON |
ON |
ON |
OFF |
ON |
OFF |
AC 0 failed |
OFF |
ON |
ON |
OFF |
OFF |
OFF |
AC 1 failed |
ON |
OFF |
ON |
OFF |
OFF |
OFF |
AC 2 failed |
ON |
ON |
OFF |
OFF |
OFF |
OFF |
Front fan failed |
ON |
ON |
ON |
ON |
OFF |
ON |
*** 5600 Watt Configuration Note: When only AC0 and AC1 are connected to power, the chassis is provided 5600 Watts. This is a two-power cord configuration.
|
| |||||||||||
| LED Name / Color | Status | Description |
|---|---|---|

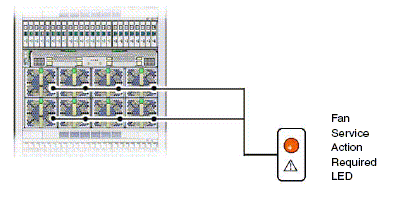

| Fan Service Action Required LED / Amber |
Off
|
Normal. |
|
On
|
Rear fan fault. |
| | | |
|
