| LED Name |
LED Color |
Description |

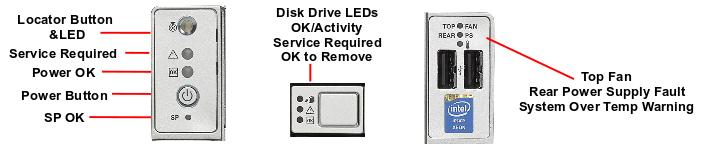

Left Side LEDs
|
| Locator LED and Locator button |
| White |
Enables you to identify a particular server. Use Oracle ILOM
to activate this LED to enable you to locate a particular system quickly
and easily. |
| Off - Normal operating state. |
| Fast Blink - The server received a signal from Oracle ILOM
and is indicating here I am - and that it is operational. |
| Service Action Required LED |
Amber |
Off - Normal operation |
| Steady On - Fault present on server. This LED lights whenever
a fault indicator lights for a server replaceable component. |
| Power/OK LED |
Green |
Off - Server is not running in its normal state. Server power
might be off. The SP might be running. |
| Steady On - Server is powered on and is running in its normal
operating state. No service actions are required. |
| Slow Blink - A normal but transitory activity is taking place.
Slow blinking might indicate that server diagnostics are running or the
server is booting. |
| Fast Blink - Server is running in standy mode
and can be quickly returned to full function. |
| Power on/off Button |
Turns the system on and off. This button is recessed
to prevent accidental server power-off. There is no Power On/Off button
on the rear panel. |
| SP OK LED |
Green |
Steady On - SP is running in its normal operating state. No
service actions are required. |
| Off - AC power might have been connected to the power supplies. |
| Blink - SP is initializing the Oracle ILOM firmware. |
| Amber |
Steady On - An SP error has occurred and service
is required. |
Disk Drive LEDs
|
| OK to Remove |
Blue |
The disk can be removed safely during a hot-plug operation |
| Service Required |
Amber |
Off -Normal operation |
| Steady On - The system has detected a fault with the storage
device. |
| OK/Activity |
Green |
Off - Power is off or installed storage device is not recognized
by the system. |
| Steady On - The drive is engaged and is receiving power. |
| Steady Blink - There is disk activity. Indicator blinks on
and off to indicate activity. |
Right Side LEDs
|
| Fan Fault LED |
Off |
Steady state, no service action required. |
| Amber |
Indicates that one or more of the fan modules have failed. |
| Rear Power Supply Fault LED |
Off |
Steady state, no service action required. |
| Amber |
The power supply is faulty. The front and rear panel Service
Required LED are also lit if the system detects a power supply fault. |
| System Overtemperature LED |
Off |
Steady state, no service action required. |
| Amber |
A temperature failure event has been acknowledged. A temperature
limit has been exceeded, and service action is required. |

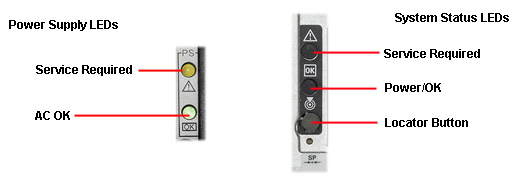

| LED Name |
LED color/status |
Description |
| Power Supply - Service Required |
Amber |
Off - Steady state, no service action required.
|
| Steady On - The power supply (PS) has detected a PS fan failure,
PS over current, PS overtemperature, or PS over/under voltage. |
| Power Supply - AC OK |
Green |
Off - 12V DC output from this power supply is disabled or
not within specification. |
| Steady On - 12V DC output from this power supply is present
and within specification. |
| Locator LED/ Locator button |
White |
Reference Front Panel Locator LED/button listed above |
| Service Action Required LED |
Amber |
Reference Front Panel Service Required LED listed above |
| Power/OK LED |
Green |
Reference Front Panel Power OK LED listed above |
