Sun SPARC Enterprise M3000 LEDs

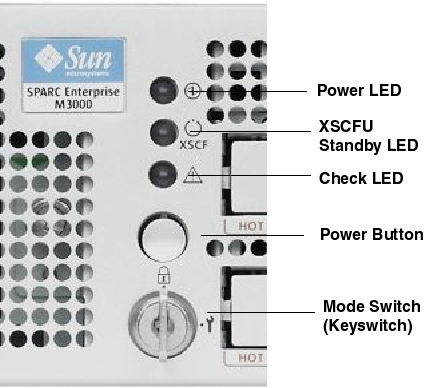

Operator Panel LEDs

LED Name / Color Status Description
Power / Green
On
 Server has power
Off
 Server is without power
XSCFU Standby / Green
On
 XSCFU is functioning normally
Off
 XSCFU is stopped
Blinking
 Under system initialization after NFB on, or under system power-on process.
Check / Amber
On
 Error detected that disables the startup
Off
 Normal, or the breaker is off (power failure)
Blinking
 Indicates the position of the fault
Operator Panel LED Combinations
Power LED XSCFU Standby LED Check LED Description
Off Off Off Circuit breaker is switched off
Off Off On Circuit breaker is switched on
Off Blinking Off XSCFU is being initialized
Off Blinking On

Error occurred in the XSCFU
Off On Off
  • XSCFU is on standby
  • System is waiting for power-on of the air conditioning system
On On Off
  • Warm-up standby processing is in progress (power-on is delayed)
  • Power-on sequence is in progress
  • System is in operation
Blinking On Off
  • Power-off sequence is in progress
  • Fan termination is being delayed
