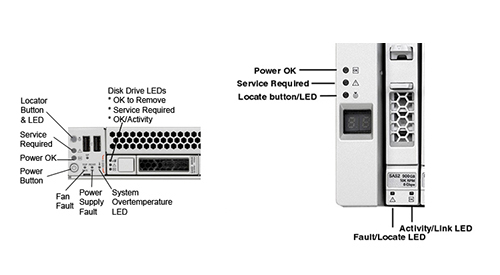

| LED Name |
LED color |
Description |
| Locator LED and Locator button |
| White |
Enables you to identify a particular server. Use Oracle ILOM
to activate this LED to enable you to locate a particular system quickly
and easily.
This LED provides the following indications:
Off - Normal operating state.
Fast Blink - The server received a signal from Oracle ILOM and is indicating
here I am - and that it is operational.
|
| Service Action Required LED |
Amber |
Off - Normal operation
Steady On - Fault present on server. This LED lights whenever a fault
indicator lights for a server replaceable component.
|
| Power/OK LED |
Off |
AC Power is not present or the Oracle ILOM boot is not complete. |
| Green - Steady Blink |
Standby power is on, but the chassis power is off and the
Oracle ILOM SP is running. |
| Green - Slow Blink |
Startup sequence has been initiated on the host. This pattern
should begin soon after you power on the server. This status indicates either.
- POST Diagnostics are running on server host system
- The host is transitioning from the powered-on state to the standby
state on shutdown
|
| Green - Steady On |
Server is powered on, and all host POST tests
are complete. The server is in one of the following states:
- The server host is booting the Operating System (OS)
- The server host is running the OS
|
| Power on/off Button |
Turns the system on and off. This button is recessed
to prevent accidental server power-off. There is no Power On/Off button
on the rear panel. |
| Top Fan, Processor, Memory Fault LED |
Amber |
Indicates that one or more iof the internal fan modules, processors,
or memory DIMMs have failed. |
| Power Supply Service Required LED |
Amber |
The power supply is faulty. The front and rear panel Service
Required LED are also lit if the system detects a power supply fault. |
| System Overtemperature LED |
Amber |
The system is over heating. |
| SP OK |
Green |
Off - Service Processor (SP) is not running
Slow Blink - SP is booting
Steady On - SP is fully operational |
| Disk Drive LEDs |
| OK to Remove |
Blue |
The disk can be removed safely during a hot-plug operation |
| Service Required |
Amber |
Off -Normal operation
Steady On - The system has detected a fault with the storage device. |
| OK/Activity |
Green |
Off - Power is off or installed storage device is not recognized
by the system.
Steady On - The drive is engaged and is receiving power.
Steady Blink - There is disk activity. Indicator blinks on and off to indicate
activity. |
| Storage DE2-24P Power OK |
Green |
Off - Power is off to the Disk Shelf.
Steady On - The Disk Shelf is powered on. |
| Storage DE2-24P Service Required |
Amber |
Off - Normal operation.
Steady On - The system has detected a fault with the storage device. |
| Storage DE2-24P Locate button/LED |
White |
Off - Normal operation.
Steady On - Enables you to identify a particular Disk Shelf. |
| Storage DE2-24P Disk Drive Fault/Locate button LED |
Amber |
Off - Normal operation.
Steady On - The system has detected a fault with the storage device. |
| Storage DE2-24P Disk Drive Activity/Link LED |
Green |
Off - Power is off or installed storage device is not recognized
by the system.
Steady On - The drive is engaged and is receiving power. |

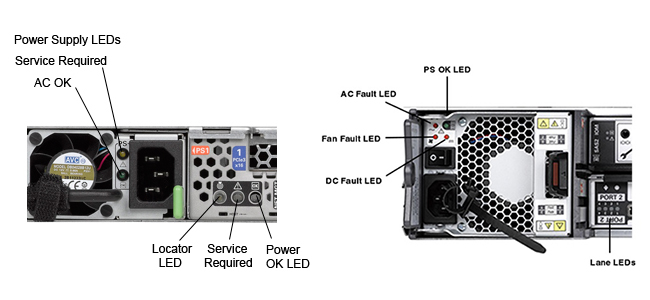

| LED Name |
Description |
| Power Supply - AC OK (Green) |
Off - No AC power is present.
Slow Blink - Normal operation. Input power is within specifications.
Steady On - Normal operation. |
| Power Supply - Service Required (Amber) |
Off - Normal operation; no service required.
Steady On - The power supply (PS) has detected a PS fan failure, PS over
current, or PS over/under voltage. |
| Locator LED/ Locator button |
Reference Front Panel Locator LED/button listed above |
| Service Action Required LED |
Reference Front Panel Service Required LED listed above |
Power/OK LED |
Reference Front Panel Power OK LED listed above |
| Storage DE2-24P Power Supply - AC OK (Green) |
Off - No AC power is present.
Slow Blink - Normal operation. Input power is within specifications.
Steady On - Normal operation. |
| Storage DE2-24P DC Fault LED |
Off - Normal operation; no service required.
Steady On - The power supply (PS) has detected a DC power failure. |
| Storage DE2-24P AC Fault LED |
Off - Normal operation; no service required.
Steady On - The power supply (PS) has detected a AC power failure. |
| Storage DE2-24P Fan Fault LED |
Off - Normal operation; no service required.
Steady On - The power supply (PS) has detected a PS fan failure. |
| Storage DE2-24P Lane LEDs |
On - Normal operation; Identifies host port activity. |
