Oracle InfiniBand Switch IS2-46 LEDs
Chassis LEDs
| LED Name |
LED Color |
Description |
| 1. Locate |
Top, White |
Indicates these conditions:
Fast Blinking - The switch is identifying itself.
Off - Disabled.
|
| 2. Attention |
Middle, Amber |
Indicates these conditions:
On - Fault detected. (Service Required)
Off - No faults detected.
|
| 3. Ok |
Middle, Green |
Indicates these conditions:
On - Switch is functional without fault.
Off - Switch is off or initializing.
|
| 4. SP |
Bottom, Green |
Indicates these conditions:
On - SP is ready.
Slow Blinking - SP is booting up
Off - SP is not running in its normal state. Power is off or the SP has faulted.
|

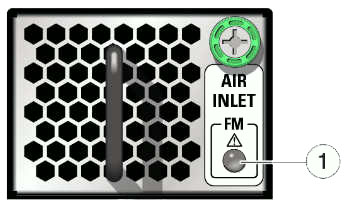

Fan Module LEDs
| LED Name |
LED Color |
Description |
| 1. Attention |
Amber |
Indicates these conditions:
On - Fault detected. (Service Required)
Off - No faults detected.
|

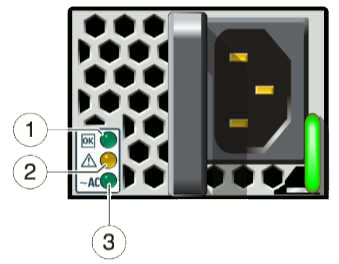

Power Supply LEDs
| LED Name |
LED Color |
Description |
| 1. Power Ok |
Top, Green |
Indicates these conditions:
On - Power supply is functional without fault.
Off - Power supply is off or initializing or there is no output power.
|
| 2. Attention |
Middle, Amber |
Indicates these conditions:
On - Fault detected.
Off - No faults detected.
|
| 3. ~AC |
Bottom, Green |
Indicates these conditions:
On - Input power present and good.
Off - Input power not present.
|
RJ-45 Link LEDs
| LED Name |
LED Color |
Description |
| 1. RJ-45 Link LED |
Left of Connector, Green |
Indicates these conditions for the upper row of RJ-45 connections:
On - A link is established and up.
Flashing - There is activity on the link .
Off - No link is established or the link is down.
|
| 2. RJ-45 Link LED |
Right of Connector, Green |
Indicates these conditions for the lower row of RJ-45 connections:
On - A link is established and up.
Flashing - There is activity on the link .
Off - No link is established or the link is down.
|
SFP+ Link LEDs
| LED Name |
LED Color |
Description |
| 1. SFP+ Link LED |
Left of pair, Green |
Indicates these conditions for the upper row of SFP+ connectors:
On - A link is established and up.
Flashing - There is activity on the link .
Off - No link is established or the link is down.
|
| 2. SFP+ Link LED |
Right of pair, Green |
Indicates these conditions for the lower row of SFP+ connectors:
On - A link is established and up.
Flashing - There is activity on the link .
Off - No link is established or the link is down.
|
|
