Fujitsu M10-1 PCI Expansion Unit LEDs

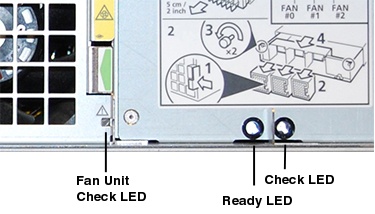

Fujitsu M10 PCI Expansion Unit Front Panel LEDs

LED Name LED Color Description
Fan Unit CHECK LED Orange
  • On - An error is occuring.
  • Blinking - Component under maintenance. (This function is also referred to as the locator LED.)
  • Off - Normal state.
READY LED Green On - System is functioning normally.
Blinking - Power is being supplied, but the system is not running. During this time, all I/O boards are in a standby mode.
Off - The system is stopped.
Check LED Orange Blinking - Indicates that the cabinet should be maintained. (this function is also referred to as a locator.)
Steady On - An error has been detected that prevents the system from starting up.
Off - The system is in a normal state, or power is disconnected or not being supplied.

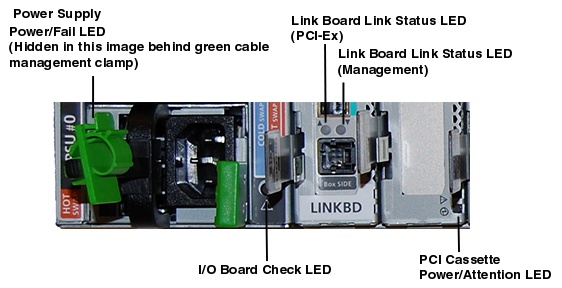

Fujitsu M10 PCI Expansion Unit Rear Panel LEDs

LED Name LED Color Description
Power/Fail LED Green On - Input power is turned on and power is being supplied normally.
Blinking - Unit is in standby condition.
Power/Fail LED Orange On - A error has occured.
Blinking - Unit is in a Warning condition.
Off - Unit input power is turned off.
PCI Cassette Power LED Green On - Power is present.
Off - Power is not present.
PCI Cassette Power LED Orange On - Error condition.
Blinking - Component is under maintenance. (This is also referred to as the Locator LED.)
Off - Power is not present.
I/O Board Check LED Orange On - A error has occured.
Blinking - Component is under maintenance. (This is also referred to as the Locator LED.)
Off - Normal condition. No power present.
Link Board Status LED (PCI-Ex) Green On - The link is up with PCI-Express Gen 3 x8.
Blinking - The link is up with anything other than a PCI-Express Gen3 x8 (degraded condition).
Off - Link is down.
Link Board Status LED (Management) Green On - The management link is established.
Blinking - The management link is disconnected.
Off - No power is present.
