| LED Name |
LED Color |
Description |

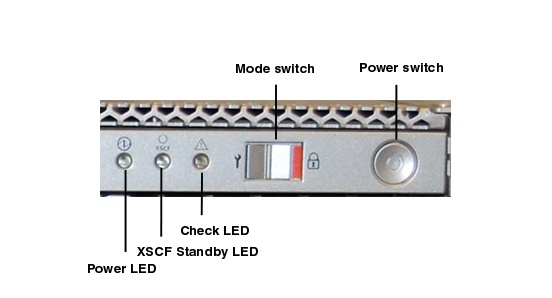

| Power LED |
Green |
- On - System is up and running.
- Blinking - System stop in progress.
- Off - System is stopped and/or not powered on.
|
| XSCF Standby |
Green |
On - XSCF is functioning normally. |
| Blinking - System initialization is in progress after
power has been turned on. |
| Off - XSCF is stopped. |

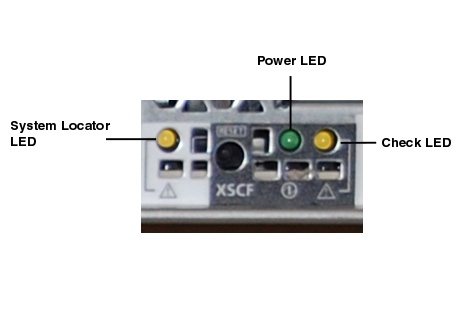

| Check LED |
Orange |
Blinking - Indicates that the cabinet should be maintained.
(this function is also referred to as a locator.)
Steady On - An error has been detected that prevents the system from starting up.
Off - The system is in a normal state, or power is disconnected or not being supplied.
|
| Orange |
The blinking interval is 1 second (1 Hz) |
| Mode Switch |
Slide switch |
Specifies the operation mode. |
| Locked Mode |
Slide switch (Right) |
This mode is used in a normal operation. The power switch can start
the system but cannot stop it. |
| Service Mode |
Slide switch (Left) |
This is used during maintenance. The power switch can start and stop the system.
Set the system to the Service mode when performing maintenance work. |
| Power button |
Start/Stop |
Press - Less than 4 seconds, the system starts regardless of the mode switch status.
Press - More than 4 seconds, If the system was started in Service mode.
Press - More than 4 seconds, If the system startup process is in progress in Service Mode.
Press - More than 4 seconds, If the system is stopped in Service mode. |
