FS1-2 Drive Enclosure LED Indicators

The LED indicators on the operator panel of the Drive Enclosures provide system status. The LED display identifies the Drive Enclosure by its numeric identifier.

FS1-2 DE2-24P Disk Enclosure LEDs

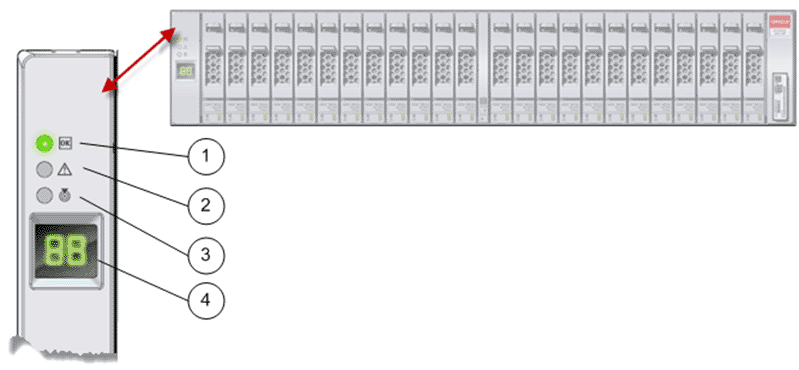

 Operator panel LEDs (DE2-24P Drive Enclosure)
Legend
1 System power indicator 3 Locate indicator and logical fault indicator
2 Module fault indicator 4 Chassis ID
The following table provides status information on the operator panel LEDs.


LED

LED color

Status

System power indicator

Green

The status is normal.

Module fault indicator

Amber

A module fault is present.

Locate indicator

White

The DE is located.

LED display

Green number between 01 and 30

The numeric identifier of a DE is displayed.



FS1-2 DE2-24C Disk Enclosure LEDs

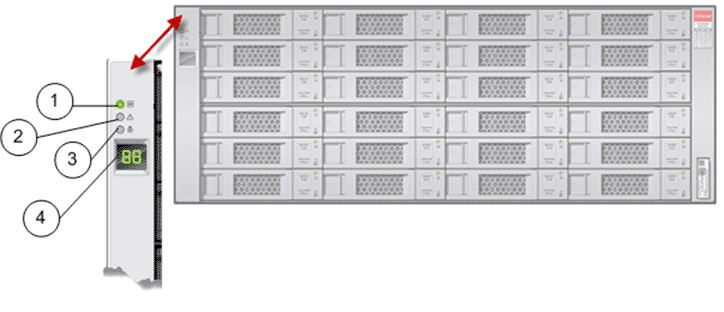

 Operator panel LEDs (DE2-24C Drive Enclosure)
Legend
1 System power indicator 3 Locate indicator and logical fault indicator
2 Module fault indicator 4 Chassis ID

The following table provides status information on the operator panel LEDs.


LED

LED color

Status

System power indicator

Green

The status is normal.

Module fault indicator

Amber

A module fault is present.

Locate indicator

White

The DE is located.

LED display

Green number between 01 and 30

The numeric identifier of a DE is displayed.
