Exalytics In-Memory Machine X2-4 LEDs

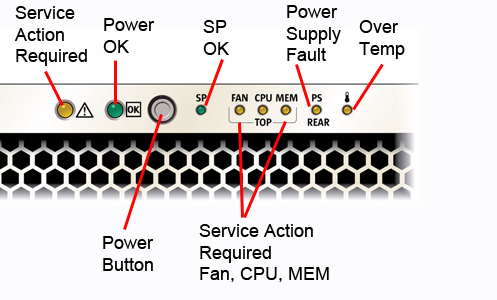

Exalytics In-Memory Machine X2-4 Front Panel LEDs

LED Name LED Color Description
Service Action Required Amber
  • A fault is detected by the system diagnostics, such as POST or ILOM
  • When a FRU fails, such as a power supply
Power OK Green Fast blink - Indicates power is going off soon in relation to a graceful shutdown or power has been applied to system and it is beginning to boot
Slow blink - Main power is off, system is in standby power mode
Steady On - Normal operation
SP OK Green Blink - Service Processor is booting up
Steady On - Service Processor has successfully booted
Slow Blink - Service Processor has booted and entered standby power mode
Amber Service Processor is faulty
Service Action Required - Fan Amber Fan module is faulty. See Fan Module LED inside system to identify faulty fan module.
Service Action Required - CPU Amber CPU is faulty. See CPU LED inside of system to identify faulty CPU (lit amber LED)
Service Action Required - Memory Amber Indicates a memory fault. See Memory Riser LED inside system to identify specific memory riser that contains faulty DIMM or DIMMs (lit amber LED)
Over Temp Amber May light if a fan fault causes an increase in system operating temperature

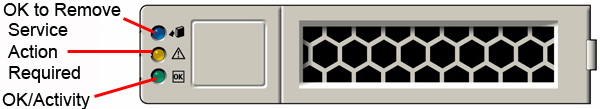

Exalytics In-Memory Machine X2-4 Disk Drive LEDs

LED Name LED Color Description
OK to Remove Blue Disk can be removed safely during a hot-plug operation
Service Action Required Amber System is running; disk is faulty. The front and rear Service Action Required LEDs are also lit if the system detects a disk drive fault
OK/Activity Green Disk is properly inserted into the system. LED will flash on and off when the disk is active





Exalytics In-Memory Machine X2-4 Rear Panel LEDs

See Front Panel LED Descriptions

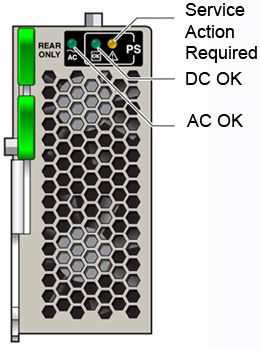

Exalytics In-Memory Machine X2-4 Power Supply LEDs

LED Name LED Color Description
Service Action Required Amber Power supply is faulty, service action is required
DC OK Green Both DC outputs (3.3V standby and 12V main) are active and within regulation
AC OK Green AC voltage within operating range is applied to the power supply
Amber AC range below operating range is applied to the power supply
