| LED Name |
LED color |
Description |

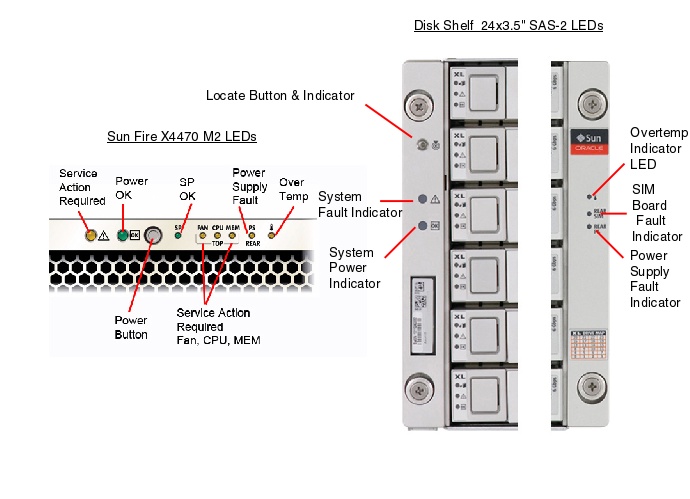

| X4470 M2 Service Action Required LED |
| Amber |
- A fault is detected by the system diagnostics, such as POST or ILOM.
- When a FRU fails, such as a power supply.
|
| X4470 M2 Power/OK LED |
Off |
The system is unavailable. System power might be off or simply disconnected. |
| Green - Steady On |
Normal Operating State |
| Green - Slow Blink |
Main power is off, the system is in standby mode. |
| Green - Fast Blink |
Indicates power is going off soon via a graceful shutdown or power has been applied to the system. |
| X4470 M2 Service Processor OK LED |
Off |
The system is unavailable. System power might be off or simply disconnected. |
| Green - Steady On |
Service Processor has successfully booted. |
| Green - Slow Blink |
Service Processor has booted and entered standby power mode. |
| Green - Fast Blink |
Service Processor is booting up. |
| X4470 M2 Power on/off Button |
Turns the system on and off. This button is recessed to prevent accidental server power-off.
There is no Power On/Off button on the rear panel.
|
| X4470 M2 Service Action Required - Fan LED |
Amber |
Fan module is faulty. See Fan Module LED inside system to identify faulty fan module.
|
| X4470 M2 Service Action Required - CPU LED |
Amber |
CPU is faulty. See CPU LED inside of system to identify faulty CPU (lit amber LED).
|
| X4470 M2 Service Action Required - Memory LED |
Amber |
Indicates a memory fault. See memory Riser LED inside system to identify specific
memory riser that contains faulty DIMM or DIMMs (lit amber LED).
|
| X4470 M2 Over Temperature LED |
Amber |
May light if a fan causes an increase in the system operating temperature.
|
| Disk Shelf 24x3.5" SAS-2 Locate Button/Indicator LED |
White - Off |
Not supported.
|
| White - Blinking @ 1 Hz 50% |
Locate LED is active. |
| Disk Shelf 24x3.5" SAS-2 System Fault Indicator LED |
Green - Steady On |
System is powered on. |
| Green - Blinking @ 4 Hz 50% |
System is booting or being configured. |
| Green - Off |
System is powered off. |
| Amber - Off |
No current faults. |
| Amber - On |
System fault. |
| Disk Shelf 24x3.5" SAS-2 System Power Indicator |
Green |
System powered on and functioning.
|
| Disk Shelf 24x3.5" SAS-2 System Overtemp Indicator LED |
Amber - On |
System is over heating.
|
| Disk Shelf 24x3.5" SAS-2 SIMM Board Fault Indicator LED |
Amber - On |
SIMM Board failure.
|
| Disk Shelf 24x3.5" SAS-2 Power Supply Fault Indicator LED |
Amber |
Power Supply failure..
|
| LED Name |
Description |

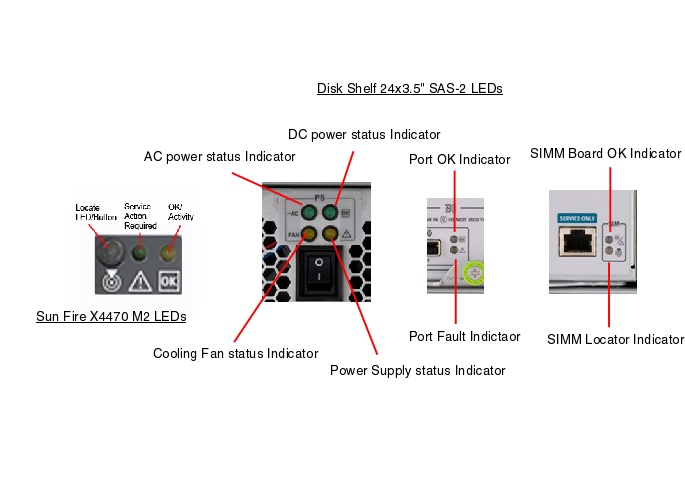

| Disk Shelf 24x3.5" SAS-2 AC power status Indicator |
Green - On : AC power ready. |
| Disk Shelf 24x3.5" SAS-2 DC power status Indicator |
Green - On : DC power ready |
| Disk Shelf 24x3.5" SAS-2 Cooling Fan Status Indicator |
Amber - On : Fan failure |
| Disk Shelf 24x3.5" SAS-2 Power supply status Indicator |
Amber - On : Power supply failure |
| Disk Shelf 24x3.5" SAS-2 Port OK Indicator |
Green - On: Normal operation. |
| Disk Shelf 24x3.5" SAS-2 Port Fault Indicator |
Amber - On: Fault condition detected. |
| Disk Shelf 24x3.5" SAS-2 SIM Board Locator Indicator |
Amber - On: SIM Board failure |
| Disk Shelf 24x3.5" SAS-2 SIM Board OK Indicator |
Green - On: System functioning properly |
| X4470 M2 Locator LED/ Locator button |
Reference Front Panel Locator LED/button listed above |
| X4470 M2 Service Action Required LED |
Reference Front Panel Service Required LED listed above |
| X4470 M2 Power/OK LED |
Reference Front Panel Power OK LED listed above |
