| LED Name | Description |
|---|---|

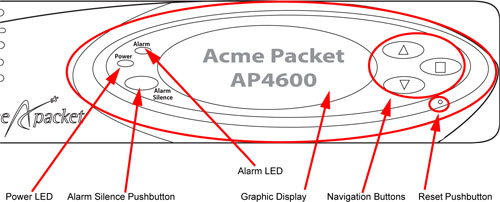

| Alarm | Indicates if any alarms are active on the system. The LED
can be set to three different colors to indicate the severity of the alarms. Unlit - System is fully functional without any faults Amber - Major alarm has been generated Red - Critical alarm has been generated |
| LED Name | Description |
|---|---|

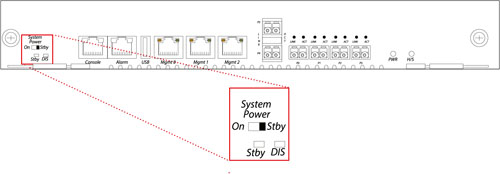

| STBY | This LED is enabled when the system is in standby power mode.
The LED is inactive when the system is powered up and running. |
| DIS | This LED is enabled when the console serial port is disabled
via software. The LED is inactive when the serial port is enabled. |
 | | | |
|
