| LED Name | Description |
|---|---|

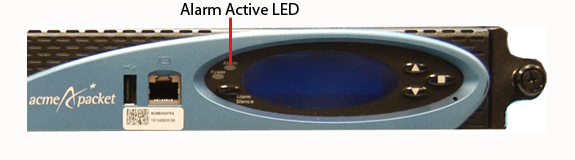

| Alarm Active | Indicates if any alarms are active on the system. The LED
can be set to three different colors to indicate the severity of the alarms. Unlit - System is fully functional without any faults Amber - Major alarm has been generated Red - Critical alarm has been generated |
| LED Name | Description |
|---|---|

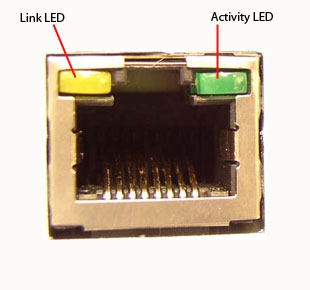

| Link | Orange - Illuminates when a link has been established between
the link partner device and the Acme Packet SBC |
| Activity | Green - Illuminates when an Ethernet connection has either transmit or receive packet activity |
 | | | |
|
